| Author |
Message |

aknetman
New member
Username: aknetman
Post Number: 3
Registered: 05-2008
| | Posted on Monday, June 15, 2009 - 10:21 pm: |
|

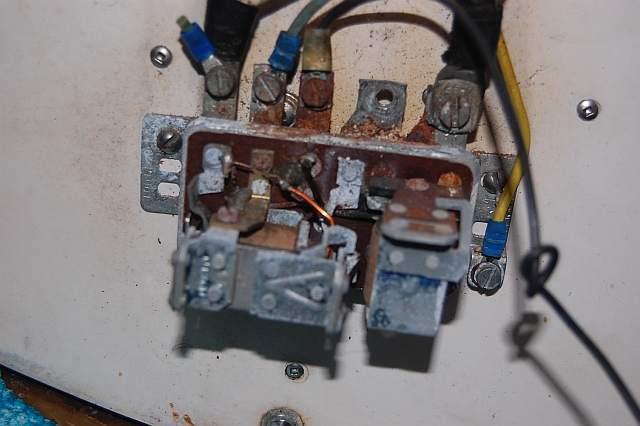

I have a Sabb 8HP diesel with the dynastart, like the ones on the Volvo MD** engines. The voltage regulator is very corroded, beyond repair. Price quoted for replacement was $1200.00.
So I have found what appears to be a solution to this problem.
http://www.canalworld.net/forums/index.php?s=c5da0f8072f889fe1183becac48e33ca&showtopic=5403&st=20
It involves replacing the old voltage regulator (Bosh part# 0 190 219 001)

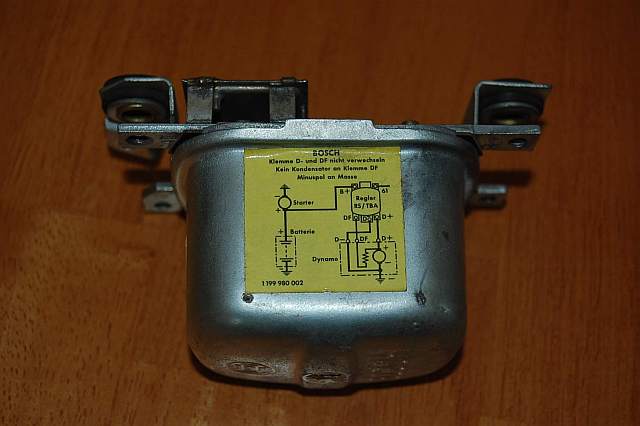

With this bosch part# 1 199 980 002

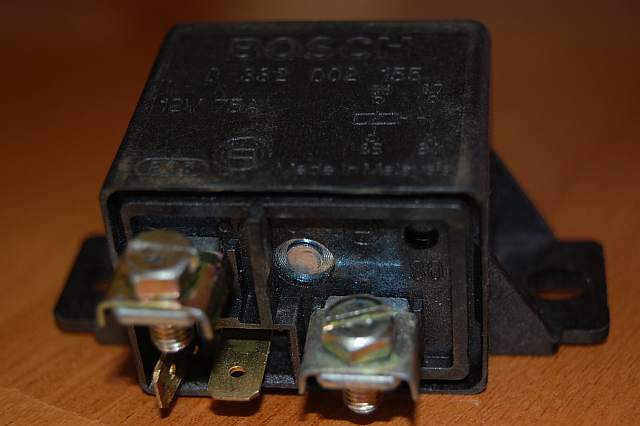

and since it does not have an internal solenoid, an external one is required - bosch part# 0 332 002 155

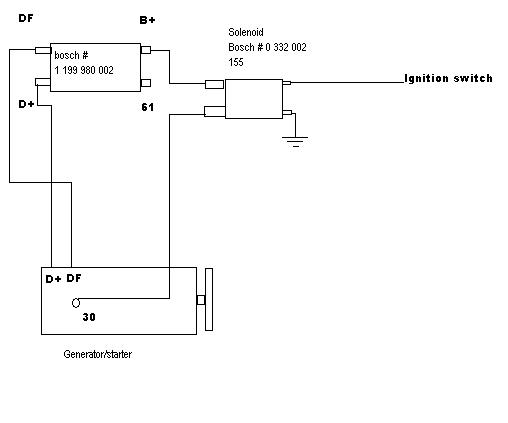

Here is what the wiring diagram looks like-
Any comments/suggestions very welcome on this... |
aknetman
Member
Username: aknetman
Post Number: 4
Registered: 05-2008
| | Posted on Monday, June 22, 2009 - 11:07 pm: |
|
By the way,
Does anyone know what gauge wires (AWG) are
here in the diagram? Looks like a degree sign and
also length in meters...
Here is an excerpt from the Sabb manual-
 |
George Martin
Visitor
| | Posted on Friday, June 26, 2009 - 02:39 pm: |
|
I guess its the square sign rather than degree, to denote cross section area. So 2.5mm sq = the cable could consist of several strands which total up to 2.5mm cross sectional area. |
aknetman
Member
Username: aknetman
Post Number: 5
Registered: 05-2008
| | Posted on Tuesday, July 14, 2009 - 06:55 am: |
|
Just wanted to let everyone know that I did finish the install and it works just fine. Charging light starts to come on at low RPM, starter works fine and dandy. Sure beats the price of the original regulator. |
George Martin
Visitor
| | Posted on Wednesday, July 15, 2009 - 08:57 am: |
|
Good to hear of your success. I always thought that if I was stuck with that problem I could get a regulator from a 12v vw beetle and get around the silly dynastart price. |
paulvec
Member
Username: paulvec
Post Number: 10
Registered: 02-2007
| | Posted on Monday, August 24, 2009 - 08:30 am: |
|
Hi All, you need to use a voltage regulator with a 15 amp cutout specially made for dynastarts and starter-regulators! VW or old car/ tractor regulator cutouts are at 25 amps and will cook the field windings! starter regulators were also used on horizontal shaft lawn tractors,golf carts and stationary engines! The bosch dynastarts were more heavy duty as designed for diesel engines. P |
adsum
Member
Username: adsum
Post Number: 21
Registered: 01-2008
| | Posted on Wednesday, November 10, 2010 - 04:35 pm: |
|
Better late then never...
"25 degrees" indeed is the cross section of the cable core in square 25 mm (mm2) and the maximum length is 2 meters. It is 25 mm2 (and not 2.5 mm2) because of the high current when the dynastart acts as a starter. |
Bubblecars
Visitor
| | Posted on Tuesday, December 07, 2010 - 08:14 pm: |
|
Hello chaps, Just read the above and thought you may be interested in this site.
http://www.dynamoregulatorconversions.com/siba-and-bosch-dynastarts.php |
mike badenoch
Visitor
| | Posted on Tuesday, July 16, 2013 - 12:16 am: |
|
Does anyone know a supplier of a replacement dynastart used on a MD 1 Diesel...no LA/2180/12/2900+10R2....? |
aknetman
Member
Username: aknetman
Post Number: 9
Registered: 05-2008
| | Posted on Tuesday, July 16, 2013 - 12:32 am: |
|
Not sure about a supplier, but you should be able to take it in to a local electric shop and have it re-wound/rebuilt. |
