| Author |
Message |

Scott Noseworthy
Member
Username: scott_n
Post Number: 8
Registered: 02-2008
| | Posted on Saturday, April 26, 2008 - 04:40 pm: |
|

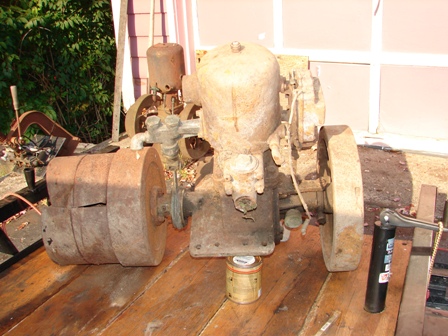

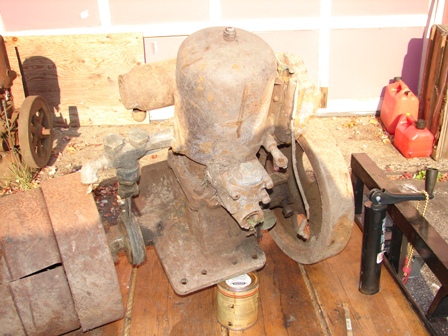

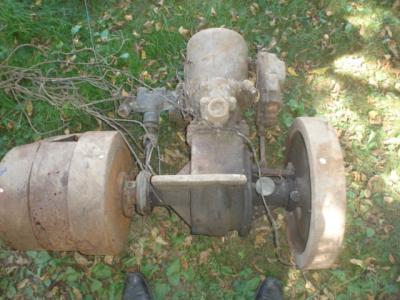

Here is the 1912 Caille 12 hp. I found last fall.
 |
Scott Noseworthy
Member
Username: scott_n
Post Number: 9
Registered: 02-2008
| | Posted on Saturday, April 26, 2008 - 04:47 pm: |
|
 |
Scott Noseworthy
Member
Username: scott_n
Post Number: 10
Registered: 02-2008
| | Posted on Saturday, April 26, 2008 - 04:52 pm: |
|
here is a picture of the mag with my foot for a scale
 |
Scott Noseworthy
Member
Username: scott_n
Post Number: 11
Registered: 02-2008
| | Posted on Saturday, April 26, 2008 - 04:55 pm: |
|
after a good soaking it came apart easy
 |
Scott Noseworthy
Member
Username: scott_n
Post Number: 12
Registered: 02-2008
| | Posted on Saturday, April 26, 2008 - 05:04 pm: |
|

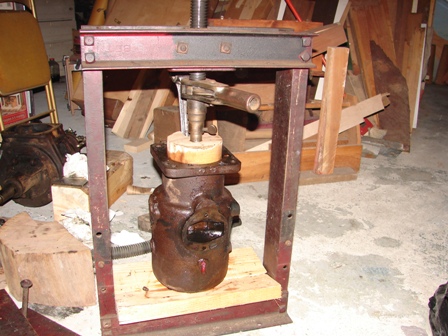

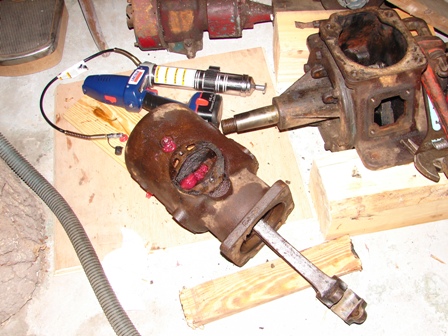

I've heard a lot of ways how to unstick a pistin the best way is to try them all
 |
Scott Noseworthy
Member
Username: scott_n
Post Number: 13
Registered: 02-2008
| | Posted on Saturday, April 26, 2008 - 05:08 pm: |
|
 |
Scott Noseworthy
Member
Username: scott_n
Post Number: 14
Registered: 02-2008
| | Posted on Saturday, April 26, 2008 - 05:28 pm: |
|
split the cases |
Scott Noseworthy
Member
Username: scott_n
Post Number: 15
Registered: 02-2008
| | Posted on Saturday, April 26, 2008 - 05:39 pm: |
|
 |
Scott Noseworthy
Member
Username: scott_n
Post Number: 16
Registered: 02-2008
| | Posted on Saturday, April 26, 2008 - 05:43 pm: |
|
The pistin and rod with pin weighted in at 19 pounds
 |
Scott Noseworthy
Member
Username: scott_n
Post Number: 17
Registered: 02-2008
| | Posted on Saturday, April 26, 2008 - 05:53 pm: |
|
And all of the castings cleaned and painted
 |
Scott Noseworthy
Member
Username: scott_n
Post Number: 18
Registered: 02-2008
| | Posted on Saturday, April 26, 2008 - 06:02 pm: |
|

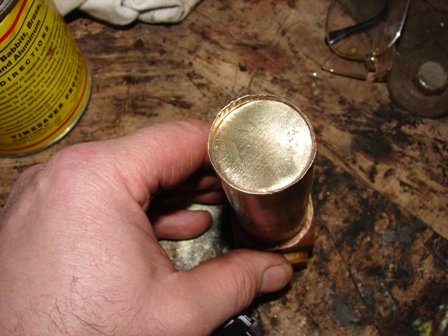

A little machine work
 |
Scott Noseworthy
Member
Username: scott_n
Post Number: 19
Registered: 02-2008
| | Posted on Saturday, April 26, 2008 - 06:16 pm: |
|

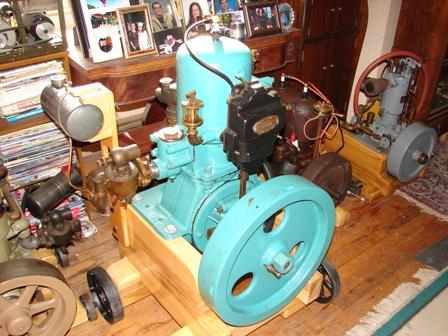

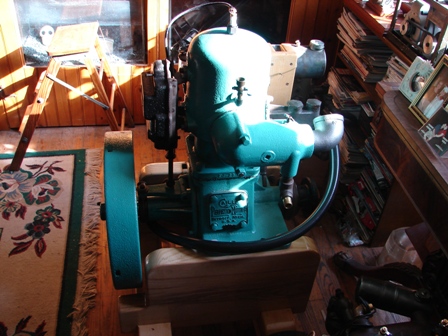

Ready to go to the show at calvert if I can get it in the truck
 |
Scott Noseworthy
Member
Username: scott_n
Post Number: 20
Registered: 02-2008
| | Posted on Saturday, April 26, 2008 - 06:22 pm: |
|
Ready to go to the show at calvert if I can get it in the truck |
J.B. Castagnos
Senior Member
Username: jb_castagnos
Post Number: 359
Registered: 07-2002
| | Posted on Saturday, April 26, 2008 - 09:00 pm: |
|

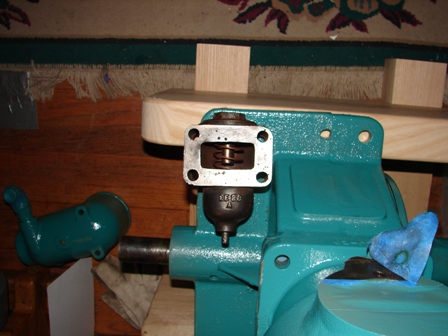

Nice work Scott, enjoyed the pictures. Was the mag in bad shape? That's a different check valve than I'm used to seeing on Cailles. We'll be looking for it at Calvert. J.B. |
RichardDurgee
Senior Member
Username: richarddurgee
Post Number: 1689
Registered: 11-2001
| | Posted on Sunday, April 27, 2008 - 09:35 am: |
|
*
Scott
Thanks for posting the photos, always interesting to see the old engines through the phases of redoing-- good work !
This 1912 ad from Caille Street in Detroit.
* |
Robert
Senior Member
Username: robert
Post Number: 208
Registered: 07-2003
| | Posted on Sunday, April 27, 2008 - 12:03 pm: |
|
Very nice work, thanks for posting. What is the HP and bore and stroke? Pushing the piston inward would scare the #^@% out of me though - in case it went too far, never to return! |
Richard A. Day Jr.
Senior Member
Username: richardday
Post Number: 588
Registered: 11-2003
| | Posted on Sunday, April 27, 2008 - 03:11 pm: |
|
Nice work Scott. Looking forward to seeing it run at CMM. Just hope we get good weather, |
Scott Noseworthy
Member
Username: scott_n
Post Number: 21
Registered: 02-2008
| | Posted on Sunday, April 27, 2008 - 06:32 pm: |
|
thanks guys after cleaning the mud wasps out of the mag. I just used a soft brass brush and wd-40. The first time I triped it I got a blue spark. I'm still fussing with timing. The check valve spring was shot but I think I have the right one. After popping the piston out of the cyclinder with the grease gun 7 tubes. I only pressed in the same amount as it came out. It has a 5 1/4" bore and 5" stroke.
 |
J.B. Castagnos
Senior Member
Username: jb_castagnos
Post Number: 360
Registered: 07-2002
| | Posted on Sunday, April 27, 2008 - 08:28 pm: |
|
I didn't realize it was that big, must be an 8hp. First marine engine I sleeved was a 6hp Caille, 4 1/2" bore. Did you weigh the piston, guessing 10-12lbs.I wouldn't use the grease gun untill it was broken loose, a friend split the cylinder that way. When using the grease method, you can fill the cylinder with oil or water to fill the void, saves grease and mess. |
Ernie
Senior Member
Username: ernie
Post Number: 805
Registered: 01-2002
| | Posted on Sunday, April 27, 2008 - 09:28 pm: |
|
Scott,
Looking forward to seeing it run.
I thought you were kidding. It really is in your living room... |
John Davis
Senior Member
Username: johnny
Post Number: 233
Registered: 03-2006
| | Posted on Wednesday, February 03, 2010 - 06:03 pm: |
|
Scott, very nice job on the restore. Great video on YouTube also. Did you know there is a 1922 Caille catalog that has your engine listed in it on Jack Craibs website? Your engine does appear to be 8hp. What was the big wash tub looking thing on the output shaft? My friend has a stationary GSM flywheel engine that uses that same magneto. You do not see that type of magneto that often. |
Andrew Menkart
Moderator
Username: andrew
Post Number: 1039
Registered: 11-2001
| | Posted on Wednesday, February 03, 2010 - 07:00 pm: |
|
Nice job Scott.
Can you post a link to the YouTube video?
Thanks. |
John Davis
Senior Member
Username: johnny
Post Number: 236
Registered: 03-2006
| | Posted on Wednesday, February 03, 2010 - 07:27 pm: |
|
Scott's 8hp Caille video
http://www.youtube.com/watch?v=vmGnHhk3Q6U |
John Davis
Senior Member
Username: johnny
Post Number: 302
Registered: 03-2006
| | Posted on Tuesday, May 25, 2010 - 11:22 pm: |
|
Scott, What color and brand of paint did you use to paint your Caille. Looks good and I would like to paint my twin cylinder Caille the same color if possible? |
Scott Noseworthy
Senior Member
Username: scott_n
Post Number: 159
Registered: 02-2008
| | Posted on Wednesday, May 26, 2010 - 04:39 pm: |
|
Lionel trains pecock green go to olsen train repair parts on line it was the best match to the coler I have on a caille row boat moter gas tank that I have. And my big Caille is a 12hp thanks fore posting the u-tube link Scott |
John Davis
Senior Member
Username: johnny
Post Number: 303
Registered: 03-2006
| | Posted on Wednesday, May 26, 2010 - 10:25 pm: |
|
Scott,
For some reason I could not get the Olsen site to come up. Sorry if I was wrong about the horse power of your Caille. I looked up the bore & stroke you posted 5-1/4 x 5 In the 1922 Caille catalog. See page below.
 |
Scott Noseworthy
Senior Member
Username: scott_n
Post Number: 160
Registered: 02-2008
| | Posted on Thursday, May 27, 2010 - 08:48 am: |
|
your right John 5&1/4" by 5" is 8hp for some reason I thought mine is 5$3/4" by 6" mite have posted it wrong. I'm not that great with the key Bord Now that I'm confused I will recheck and let you know it mite help if I red my own posts no harm. well try to get you more info on the paint |
Scott Noseworthy
Senior Member
Username: scott_n
Post Number: 161
Registered: 02-2008
| | Posted on Thursday, May 27, 2010 - 04:51 pm: |
|
Olsen's toy train part's (216)226-0444 |
Scott Noseworthy
Senior Member
Username: scott_n
Post Number: 162
Registered: 02-2008
| | Posted on Thursday, June 03, 2010 - 08:55 am: |
|
5&1/4" by 5" ti is but dos not look like the engine in this ad it looks like the engine in the ad that Ernie posted a little further down in the caille topic Scott |
Robert
Senior Member
Username: robert
Post Number: 376
Registered: 07-2003
| | Posted on Sunday, June 06, 2010 - 02:38 am: |
|
A nice restoration and from the video a smoother running engine than I would expect. |
John Davis
Senior Member
Username: johnny
Post Number: 306
Registered: 03-2006
| | Posted on Monday, June 07, 2010 - 09:47 pm: |
|
Thanks for the number Scott. |
John Davis
Senior Member
Username: johnny
Post Number: 319
Registered: 03-2006
| | Posted on Wednesday, July 07, 2010 - 05:57 pm: |
|
Scott,
Tried to email you using email address from this forum but keep getting kicked back.
I now have a small section on my website for Caille marine engine photos & literature. Wondering if you would like me to post some before and after restoration photos and/or the video of your Caille? If yes please email me some photos. The larger the photos the better.
By the way I ordered some of that peacock green or blue paint from Olsens. Thanks for the info. |
Ernie
Senior Member
Username: ernie
Post Number: 1229
Registered: 01-2002
| | Posted on Wednesday, July 07, 2010 - 07:24 pm: |
|
By way the video is mine. Feel free to use any of the 176ernie youtube vids on your site.
There is also one of Linda Olbrys and her Detroit from Mystic last year.
Nice work on your web page I haven't looked at it in a while |
John Davis
Senior Member
Username: johnny
Post Number: 320
Registered: 03-2006
| | Posted on Thursday, July 08, 2010 - 11:39 pm: |
|
Thank's Ernie, I like that Detroit video also. I guess Detroit's advertisements back in the day stating that their engines are so easy to start that a woman or child can start them were correct. |
John Davis
Senior Member
Username: johnny
Post Number: 345
Registered: 03-2006
| | Posted on Thursday, October 07, 2010 - 11:28 am: |
|
1913 Caille Advert.
 |
