| Author |
Message |

William Schaller
Senior Member
Username: billschaller
Post Number: 509
Registered: 12-2003
| | Posted on Saturday, March 24, 2012 - 03:46 pm: |
|

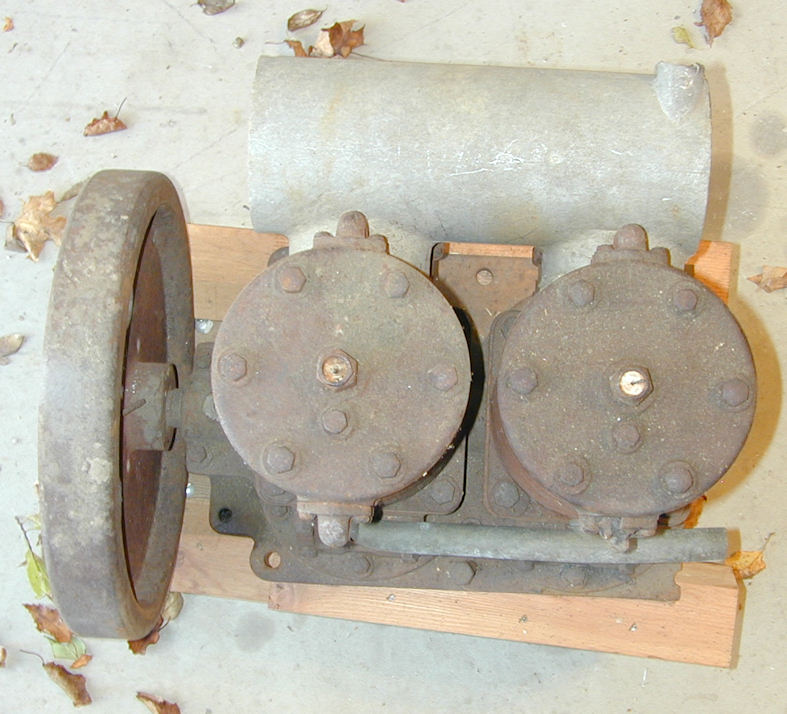

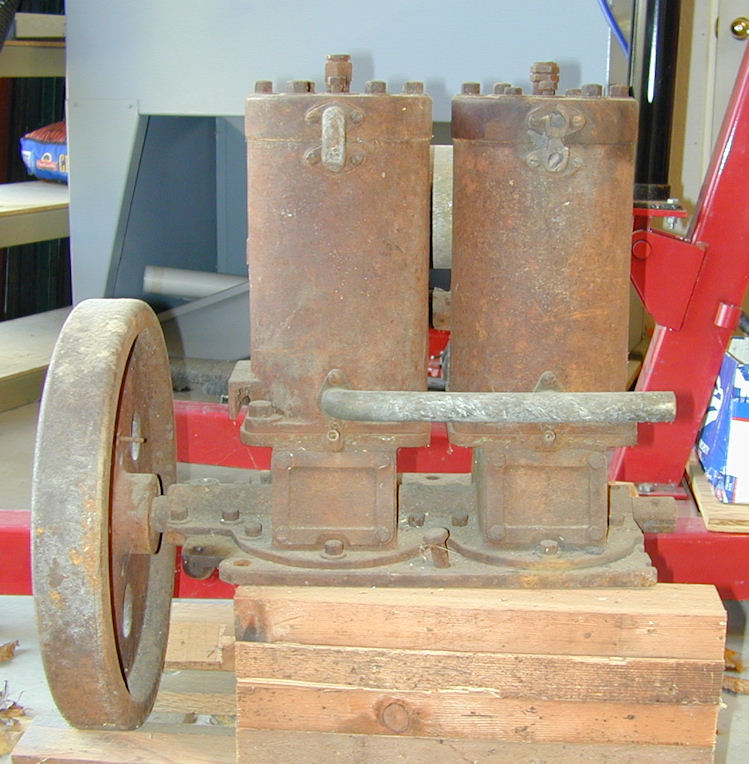

I have had this one for a long time, any one seen any info on motors with hollow mufflers? It came from the Minnesota Canada border.
 |
Andrew Munns
Senior Member
Username: johnoxley
Post Number: 55
Registered: 04-2010
| | Posted on Saturday, March 24, 2012 - 06:23 pm: |
|

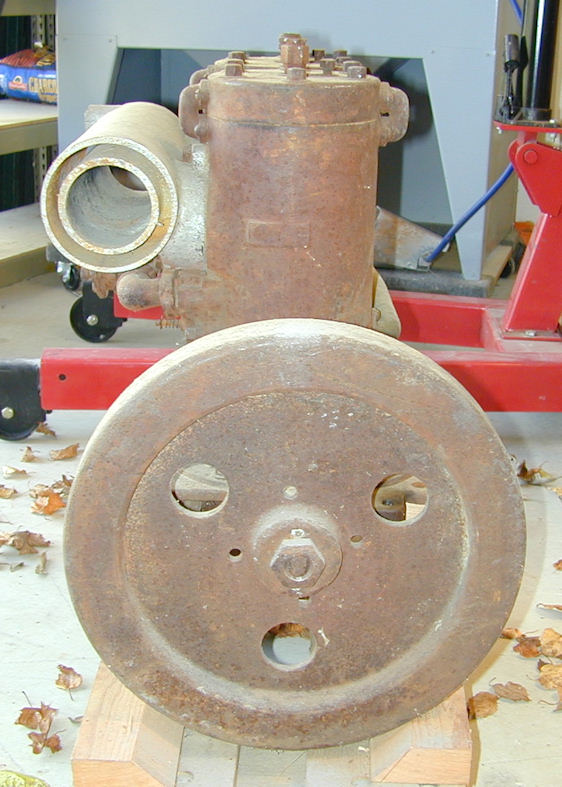

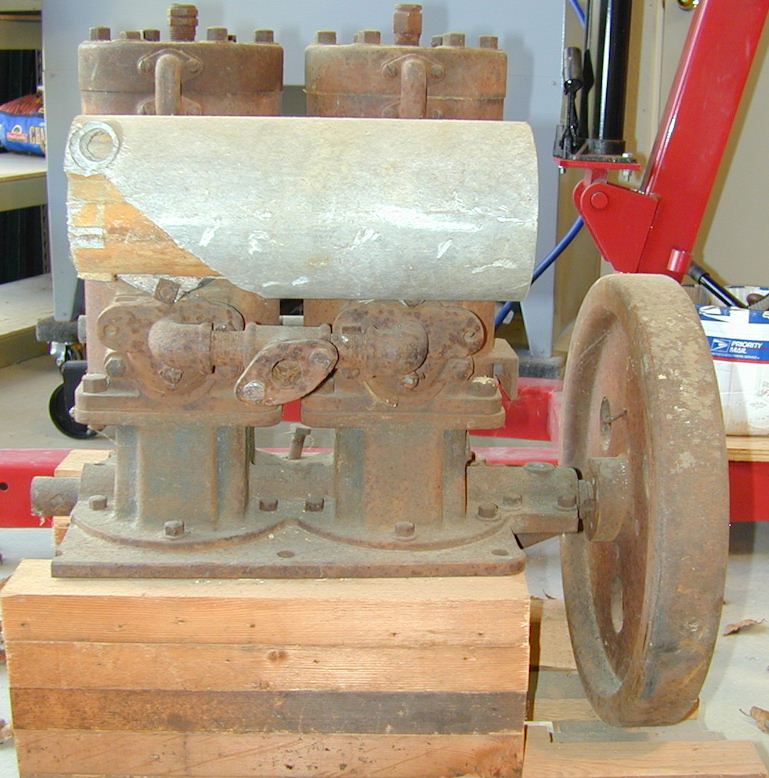

Hi - Do not know the motor, but it has a water jacketed exhaust manifold. Usually these rust wedged apart if salt water cooled and left to dry out. This one looks to have been cut to see the inside - looks choked with rust and mud. If you have a friendly patternmaker and foundry, a new maniold can be cast and then machined. Have cast these in Niresist cast iron but ordinary grey iron is original. Not an easy job.... Possible to fabricate and galvanise but will not last as long as cast iron. |
Robert B. Price
Senior Member
Username: rbprice
Post Number: 372
Registered: 11-2001
| | Posted on Sunday, April 15, 2012 - 10:50 am: |
|
Bill - do a search on Palmer Q-2 and see the water cooled exhaust manifold I made from a bunch of standard pipe fittings and few special parts. It is similar to the one on this engine. |
|
|
|
|
