| Author |
Message |

john fuller
New member
Username: scooter
Post Number: 1
Registered: 07-2011
| | Posted on Saturday, September 17, 2011 - 10:10 am: |
|
Hi. I have a super pup that came without an exhaust box, Would any one have one off these for sale or have a diagram of one and the internal layout so i could make up one. Or even a photo of one as i dont know what it looks like. Cheers. |
Greg Y
Senior Member
Username: gregoryan
Post Number: 84
Registered: 09-2004
| | Posted on Saturday, September 17, 2011 - 10:18 pm: |
|

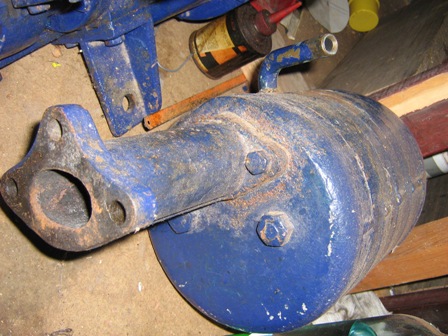

Hi. This is the Blaxland Greyhound 6\8Hp muffler. It is a few layers longer than the Super Pup 4 1/4Hp, yet the same diameter i think!? They are built-up from alternate layers of iron spacer rings/ and perforated bulkheads, from memory, there are longitudinal bolts holding them all together. Tho i wonder if all those internal baffles are necessary with a wet exhaust!?
It looks like Way too much weight at the end of that long-lever-of-a manifold.
You can see a bit of your model's muffler on this page; http://www.oldmarineengine.com/history/Blaxland/blaxland.htm |
john fuller
New member
Username: scooter
Post Number: 2
Registered: 07-2011
| | Posted on Saturday, September 17, 2011 - 11:58 pm: |
|
Hi Greg
Thanks a lot, for you input, do you think the internal baffles are perforated plate ? Looks like making that manifold will be a job, But maybe ill come across one. At least now i know what to look for, Cheers |
Andrew Munns
Advanced Member
Username: johnoxley
Post Number: 34
Registered: 04-2010
| | Posted on Monday, September 19, 2011 - 09:20 pm: |
|
Hi - I have a few Super Pup bits including a rusty exhaust pot and extension pipe similar to picture. The pot is roughly 7 1/2" diameter by 7 1/2" long. There are no through bolts or internal baffles - just empty space inside and lots of rust. There is also a 3/8" gas thread inlet on top. This unit is rusty and patched with fibreglass. Would be good for replicating a copy in steel (should be galvanised). It is a simple pattern if a casting is wanted. I know a patternmaker and have access to two good foundries in the Sydney area. If you are interested, the unit is at Baulkham Hills. |
john fuller
New member
Username: scooter
Post Number: 3
Registered: 07-2011
| | Posted on Tuesday, September 20, 2011 - 05:33 am: |
|
Hi Andrew
I am interested, would you be willing to part with these. Im in Lidcombe.
My contact No 0421435575 Cheers |
Andrew Munns
Advanced Member
Username: johnoxley
Post Number: 35
Registered: 04-2010
| | Posted on Saturday, September 24, 2011 - 04:51 pm: |
|
Hi John - I am away until end this week and will call then. |
