Stuart r2

Old Marine Engine » Stuart Turner » Stuart r2 « Previous Next »

Author Message
Top of pagePrevious messageNext messageBottom of page Link to this message

davdeborg
New member
Username: davdeborg

Post Number: 2
Registered: 07-2004
Posted on Wednesday, July 21, 2004 - 05:50 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

does anyone know any websites for stuart turner r2 pumping sets etc ive searched and searched with no joy pls help if you can
Top of pagePrevious messageNext messageBottom of page Link to this message

G Evans
Visitor
Posted on Friday, July 23, 2004 - 05:58 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

daveborg
found this http://www.stuart-turner.co.uk/
live this morniong
george
Top of pagePrevious messageNext messageBottom of page Link to this message

timmulvey
New member
Username: timmulvey

Post Number: 1
Registered: 05-2003
Posted on Friday, July 23, 2004 - 06:57 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I've only found an ocassional photo of a Stuart pump via search engines using various Stuart related phrases. Generally they are amongst photos from stationery engine field days.

I presume yours is a piston pump - either a Type A or the earlier Type D. I have a one page brochure dated 1949, but it doesn't identify the engine model - either an R2 or R3.

I have a list of ranges on engine numbers for each engine model and the related manufacture period. I presume that it covers all the engines whether used for marine or stationery engine application.

It shows that the R2s were manufactured over the period 1934 to 1971. In the 1970's Stuart Turner Limited ceased manufacture of the marine/stationery engines and just concentrated on their range of modern pumps - per the website link in the earlier posting.

I don't have much more. I'll post a photo of the piston pump from my brochure tonight.
Top of pagePrevious messageNext messageBottom of page Link to this message

timmulvey
Senior Member
Username: timmulvey

Post Number: 102
Registered: 05-2003
Posted on Saturday, July 24, 2004 - 07:23 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Here are two pump. The one in my brochure is an R2 - model A6R2 A6R2

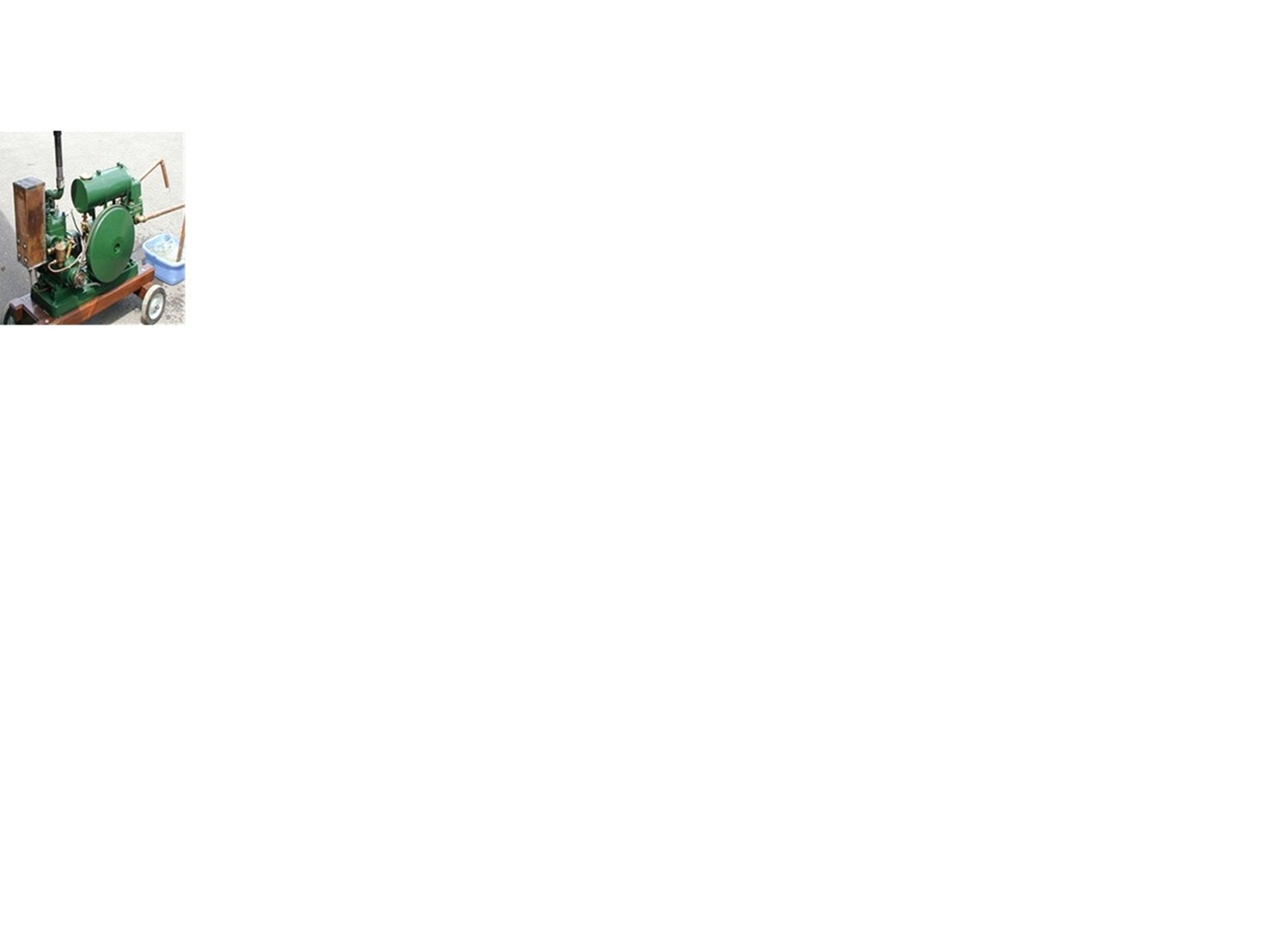

This next one - seemingly also an R2 - belongs to a friend of mine here in Australia.
ST pump
Top of pagePrevious messageNext messageBottom of page Link to this message

davdeborg
New member
Username: davdeborg

Post Number: 3
Registered: 07-2004
Posted on Saturday, July 24, 2004 - 08:24 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

mine is the first pump from the brouchure have you any idea of the date etc many thanks for your help
Top of pagePrevious messageNext messageBottom of page Link to this message

davdeborg
Member
Username: davdeborg

Post Number: 4
Registered: 07-2004
Posted on Saturday, July 24, 2004 - 10:08 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

ALSO CAN YOU LET ME KNOW WHAT THESE PUMPING SETS WERE USED FOR AND WHO WOULD OF USED THEM MANY THANKS
Top of pagePrevious messageNext messageBottom of page Link to this message

davdeborg
Member
Username: davdeborg

Post Number: 5
Registered: 07-2004
Posted on Saturday, July 24, 2004 - 10:15 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

heres some details
STUART TURNER PUMP SET
PUMP DETAILS \A6R2 ,6124
ENGINE DETAILS \NUMBER R2 37509
HELP ME LOL I NEED SOME IN FO ON DATE AGE WHERE AND WHO WOULD OF USED THIS TYPE OF SET UP ,THANKS FOR EVERYONES HELP SO FAR BEST WISHES TO YOU ALL
Top of pagePrevious messageNext messageBottom of page Link to this message

andrew
Moderator
Username: andrew

Post Number: 825
Registered: 11-2001


Posted on Saturday, July 24, 2004 - 10:44 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

davdeborg,

I believe that fairways engineers maintains a list of Stuart Turner serial numbers. They used to provide the original details based on your serial number for a small fee if you mailed them the information. I don't know how or if they do it anymore.
Top of pagePrevious messageNext messageBottom of page Link to this message

timmulvey
Senior Member
Username: timmulvey

Post Number: 103
Registered: 05-2003
Posted on Saturday, July 24, 2004 - 06:50 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I have a list of ranges of engine numbers and related range of years of manufacture for each model. However, Fairways have the manufacture records etc for each engine that was manufactured by Stuart Turner Limited. I've been told by more than one source that there is a small charge for such an enquiry unless you are buying some parts.

Your engine number 37509 falls with the range of engine numbers 30000 to 38899 that were manufactured during the period May 1934 to March 1958. If one assumes that equal numbers were manufuactured each year I estimate that yours was manufactured in the early 1950's. Of course this is a very rough estimate - a bit harder than most of the other models as they had a lot of different ranges for shorter durations as there were variations for those other models.

Other info from the brochure is that the A type pumps are suitable for suction lifts up to 25 feet. The A6R2 works at 240rpm and delivers 360gph and sold for 39 pounds 10 shillings in 1949 (date of my brochure). It was advertised as being quiet running - an important feature for domestic applications.

My brochure is a photocopy - a bit grainy - but I'll scan it for you and send via email tonight.

If you come acorss any other info I'd appreciate you keeping me in mind.

Also, there will shortly be a Stuart article by me appearing in the UK Stationery Engine magazine.

PS: I'll send the list of serial numbers to Andrew for future posting on the website.
Top of pagePrevious messageNext messageBottom of page Link to this message

davdeborg
Member
Username: davdeborg

Post Number: 6
Registered: 07-2004
Posted on Sunday, July 25, 2004 - 05:48 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

your a good man off course ill keep you in mind been in contact with fairways have to send them ten pounds sterling and they will date engine for me thanks again for your help heres a pic heres a pic
Top of pagePrevious messageNext messageBottom of page Link to this message

andy powell
New member
Username: ramraider

Post Number: 1
Registered: 08-2013
Posted on Thursday, August 01, 2013 - 08:49 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi-if anyone still reads this thread????

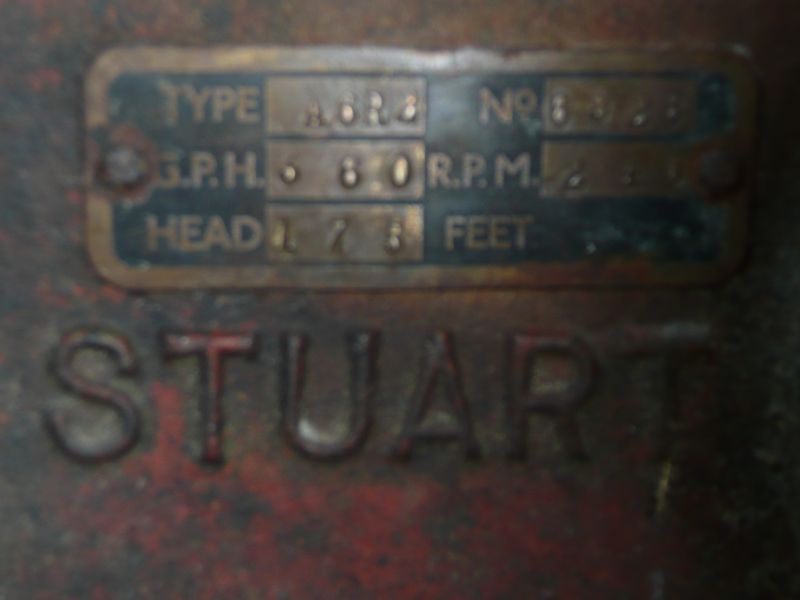

I have an old stuart turner which I found, covered in mud etc, in a farm quarry in scotland. From the plates :-

Type: A6R2
Nr: 6928
GPH: 360
RPM: 240
Head: 175 ft

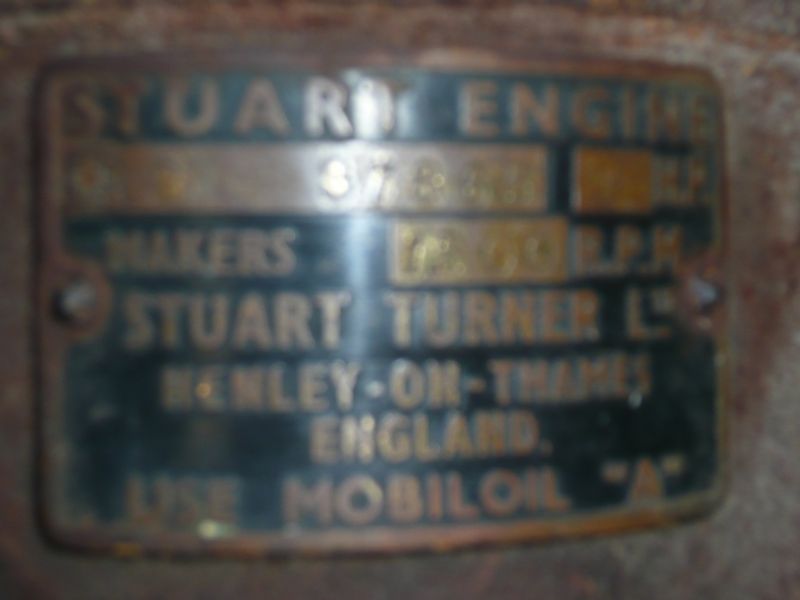

Engine plate details are:
Nr: R2 37865
RPM: 1500

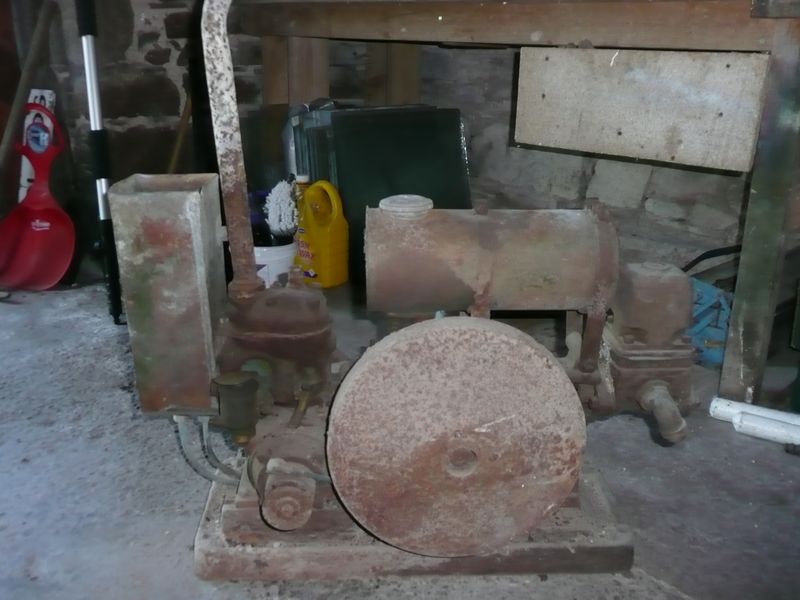

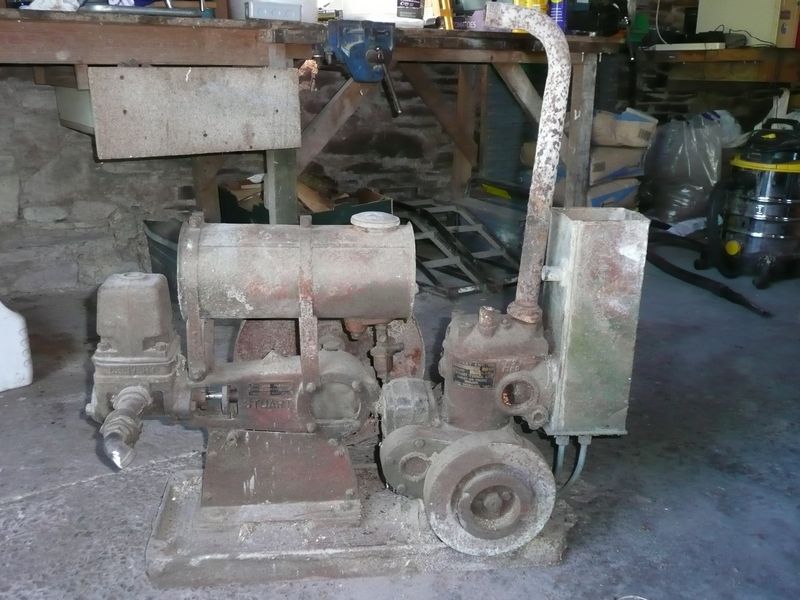

Stuart-Turner-pic1
Stuart-Turner-pic2
Stuart-Turner-pic3
Stuart-Turner-pic4

Can anyone offer an info on these? How best to go about restoration? Contacts for parts? Contacts for documentation etc? The link above to 'Fairways engineering' is now defunkt.
Top of pagePrevious messageNext messageBottom of page Link to this message

Tony Faulkner
Visitor
Posted on Tuesday, March 10, 2015 - 11:35 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

I have a Stuart Turner R2 with a Keith Blackman Compressor c1944, can anyone advise me of the timing for this engine. Thanks Tony
Top of pagePrevious messageNext messageBottom of page Link to this message

Hugo de Rrick
New member
Username: hugo_de_rrick

Post Number: 3
Registered: 10-2014
Posted on Sunday, March 22, 2015 - 04:29 pm:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi Tony -

Timing your R2; stamped on the periphery of the flywheel you'll find 'TDC'; a little way round from this mark (about 1 1/2") you'll find 'M' or 'Mag' stamped - with this mark uppermost & on the cylinder's centre-line, you want the magneto points to be just opening (with a Lucas SR1 or a Wipac A).

To do this, prise off the little steel cover to the lefthand side of the flywheel & slacken the magneto drive sprocket to the point @ which it pops off the magneto taper. Set the 'M' / 'Mag' mark uppermost on the cylinder centre-line & rotate the magneto 'til the points are just opening - nip up the mag sprocket & double check the timing - if all is well, fully tighten & replace the various covers. If not, repeat the process.

Hope this helps.

Regards,

H.
Top of pagePrevious messageNext messageBottom of page Link to this message

Poncet
Visitor
Posted on Tuesday, May 17, 2016 - 09:40 am:   Edit Post Delete Post View Post/Check IP Print Post    Move Post (Moderator/Admin Only)

Hi,

First, excuse my English (I'm French. Everything happens.)

I have a Stuart Turner R3M powering a small boat, and its head as a crack...

Is there a chance to find a head (and head gasket) ?

Thank you in advance for your answers.

P.S. I wonder if the manufacturer is http://www.stuartmodels.com/ or http://www.stuart-turner.co.uk/ ?
