Kevin Macdonald
Visitor
| | Posted on Saturday, September 13, 2014 - 03:39 am: |
|
Hi All,
I have recently obtained an R2 gen set comprising of the Stuart base plate,engine and dynamo but not the electric control(?) box that sits on top of the dynamo - does anyone know where I can get one from or if its possible to make one please?The engine number is 33619( 1940's?),300 watts,25/35 volts 12/8 amps.
This engine uses thermodynamics to cool it- can anyone let me know what size water tank I need?
Any help or guidance would be much appreciated.
Thank you.Kev. |
Hugo deRrick
New member
Username: hugh_goderrick
Post Number: 3
Registered: 02-2011
| | Posted on Thursday, October 02, 2014 - 04:01 pm: |
|
Hi Kevin -
Stuart recommended a 14 gallon tank for use with the R2 generating plants (19 gallons for the R3). If you're not going to run it @ full load for extended periods then you can get away with much less...
The switchboards do occasionally crop-up for sale - there's quite a bit to them (a cut-out / field rheostat / fuses / ammeter / voltmeter / various switches / the electric start switch) - most of it could be fashioned from alternative components.

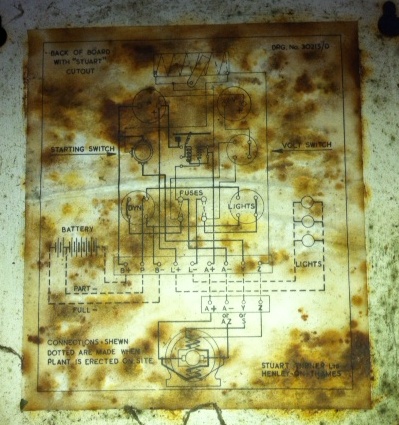

Have a gad @ the attached (poor!) wiring diagram for inspiration.
Ciao,
H.
 } |
Kevin Macdonald
Visitor
| | Posted on Saturday, October 11, 2014 - 01:36 pm: |
|
Hi Hugo,
Thanks for getting back to me with that info - very useful.All the best.
Kev, |
|
|
|
|
