| Author |
Message |

RichardDurgee
Senior Member
Username: richarddurgee
Post Number: 3503
Registered: 11-2001
| | Posted on Wednesday, February 11, 2015 - 09:58 pm: |
|
*
Big Schebler Two Inch
Audie T. in Louisiana sent this photo, a two inch
Schebler D, wanted to know if anyone knows of a marine engine that used one ? did Schebler make a bigger one ?
* |
Audie T.
Visitor
| | Posted on Thursday, February 12, 2015 - 10:58 am: |
|
Richard, Thanks for posting! It has a DX27 stamped in the bowl. |
RichardDurgee
Senior Member
Username: richarddurgee
Post Number: 3505
Registered: 11-2001
| | Posted on Thursday, February 12, 2015 - 12:31 pm: |
|
*

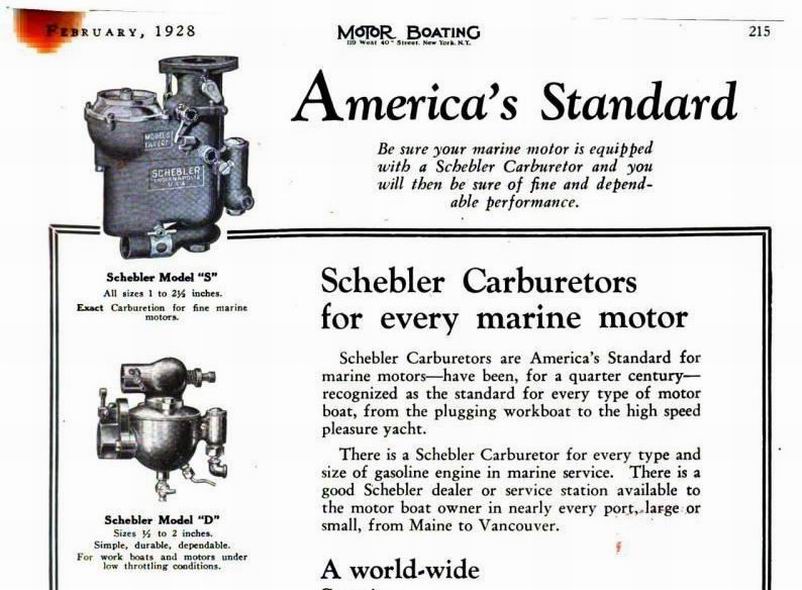

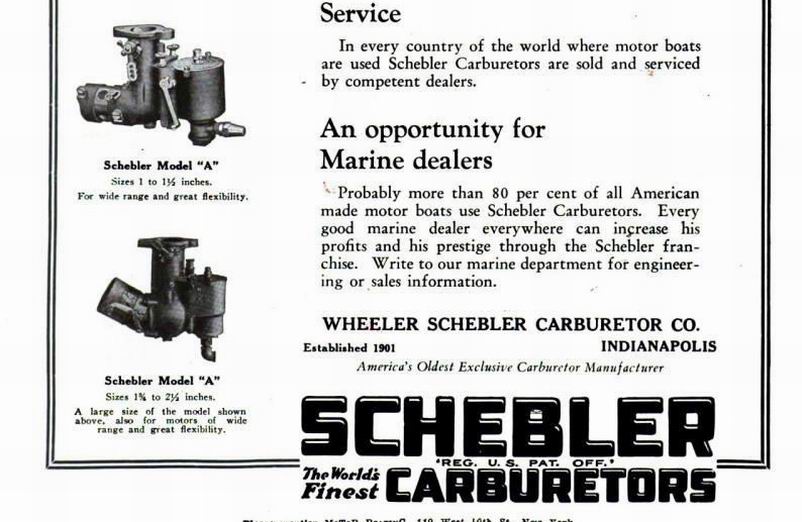

Schebler 1928 ad
Looks like 2 inch was largest model D.
* |
RichardDurgee
Senior Member
Username: richarddurgee
Post Number: 3506
Registered: 11-2001
| | Posted on Thursday, February 12, 2015 - 12:52 pm: |
|
*

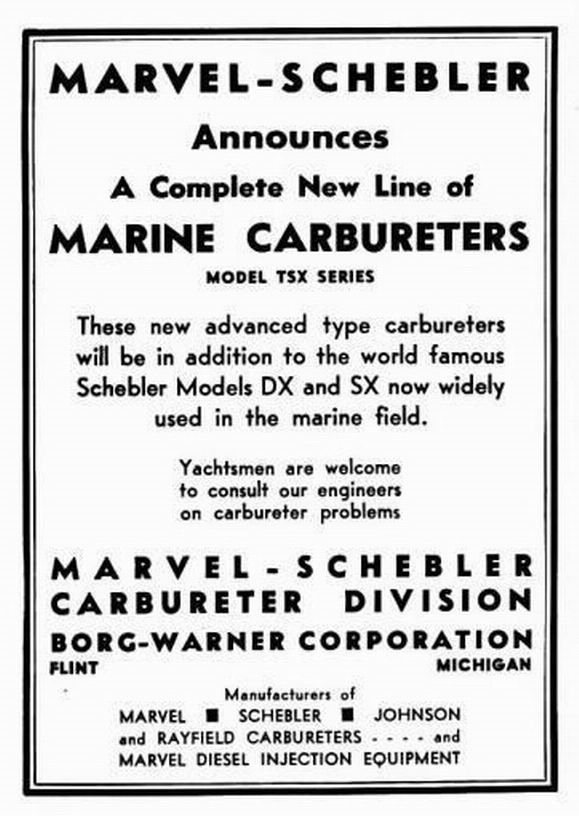

Audie, This is a Marvel Schebler ad 1939,
your DX may have been a marine Carburetor ?
* |
Audie T.
Visitor
| | Posted on Thursday, February 12, 2015 - 02:04 pm: |
|
I wonder if they made an 1-1/2" carb? I have all the other sizes. Thanks for the information Richard! Looks like it was a marine model. Imagine the engine it was on. I would guess in excess of 800 c.i. |
RichardDurgee
Senior Member
Username: richarddurgee
Post Number: 3508
Registered: 11-2001
| | Posted on Thursday, February 12, 2015 - 02:38 pm: |
|
*
Yes 1 1/2 were made
1/2, 3/4, 1, 1 1/4, 1 1/2, and 2 inch - 6 sizes
There is one of these big brass gasoline jugs on my 1929 Hart-Parr 18/36 three fuel tractor, two cylinder 501 cubic inches. It starts on gasoline when warms up switch to kerosene, if the plows dig in and engine starts knocking there is a valve that is manually opened it lets water into the intake manifold, just enough till the knocking quiets down ?
* |
Robert
Senior Member
Username: robert
Post Number: 664
Registered: 07-2003
| | Posted on Friday, February 13, 2015 - 03:06 pm: |
|
Atlas Imperial engines that started on gasoline used a big single Schebler.
Pity it was sandblasted. |
Audie T.
Visitor
| | Posted on Friday, February 13, 2015 - 05:37 pm: |
|
It may have been sand blasted Robert. I have a new old stock 1" schebler that I got from a friend in Florida that was still in the original box. It was never used and has the same casting look to it. I know some were polished smooth as I also have a couple of those. I'm in the market to buy an 1-1/2" if anyone has one to part with. Need not be in working order as it will be for display only. Thanks for information Robert on them being used on those big Atlas engines. |
Joe Holmes
Senior Member
Username: joe_h
Post Number: 67
Registered: 05-2005
| | Posted on Friday, February 13, 2015 - 08:29 pm: |
|
Richard, the ad you have shows a Schebler Model S. What were these for? I have one and would like to see it put to use/ Joe |
RichardDurgee
Senior Member
Username: richarddurgee
Post Number: 3510
Registered: 11-2001
| | Posted on Friday, February 13, 2015 - 11:44 pm: |
|
*
They were used from 1920 to 1933
I don't know the many applications and types of vehicles, tractors, fire Trucks etc.
Some of the marine applications I'm aware of are
1. Lycoming----- 1930-31
2.Kermath------- 1925-29
3.Scripps------- 1924-28
4.Sterling------ 1926-29
5 Van Blerck---- 1926-28
Other mfgrs used The Model S also !
* |
Ernie
Senior Member
Username: ernie
Post Number: 2001
Registered: 01-2002
| | Posted on Saturday, February 14, 2015 - 03:42 pm: |
|
Audie,
Send me an e-mail
I have one
Ernie
As to the finish on these carbs they came in polished, sand blasted and rough cast all in brass
They also came in iron and aluminum. |
William Schaller
Senior Member
Username: billschaller
Post Number: 613
Registered: 12-2003
| | Posted on Sunday, February 15, 2015 - 01:49 pm: |
|

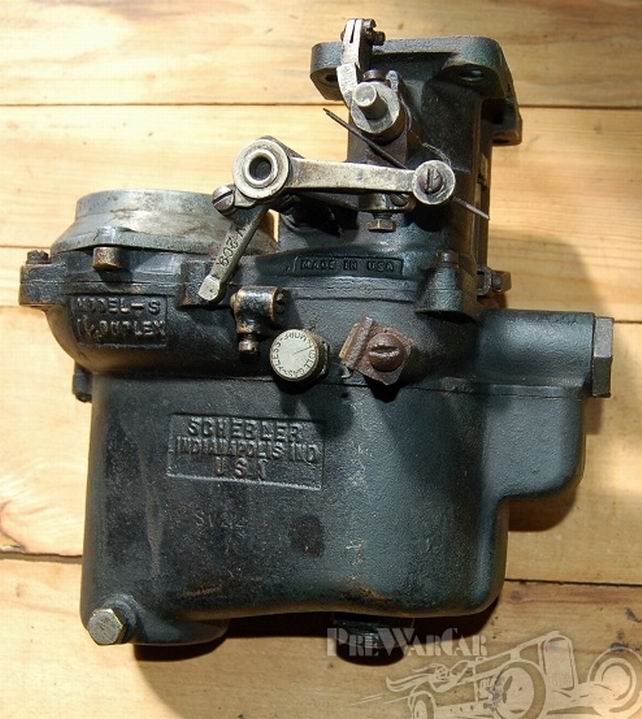

A picture for reference.
 |
