| Author |
Message |

B. Goss
Senior Member
Username: bgoss
Post Number: 198
Registered: 12-2007
| | Posted on Monday, May 06, 2013 - 07:50 pm: |
|

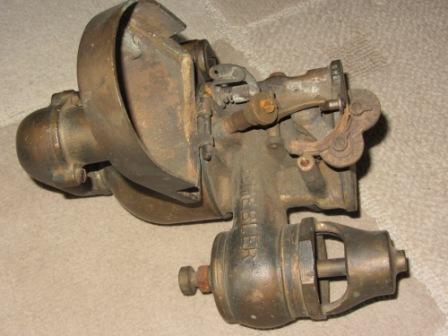

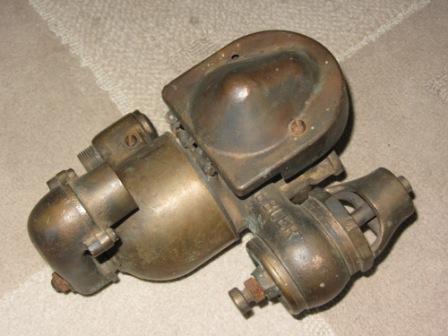

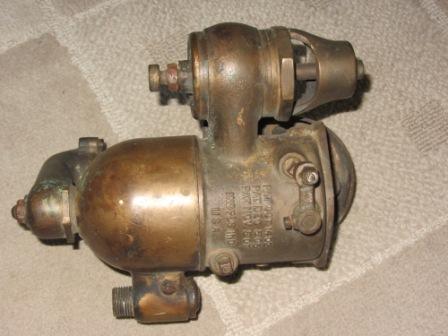

Can anyone help with the intended use for this Schebler? Could it be marine, auto, ? We got it with a bunch of marine engines and parts, but?
.
.
Thanks |
B. Goss
Senior Member
Username: bgoss
Post Number: 199
Registered: 12-2007
| | Posted on Friday, May 10, 2013 - 08:04 pm: |
|
Bump. Any thoughts? |
Robert
Senior Member
Username: robert
Post Number: 565
Registered: 07-2003
| | Posted on Friday, May 10, 2013 - 09:05 pm: |
|
Rotating and enlarging the last photo it appears there are two arms moving along a geared quadrant with metering screws to precisely control their movement around the curve of the quadrant; would such very fine metering be normal and what are the ports controlled? A closeup of the top of the carb right way up would help, also one of the throat from above. The hinged guard suggests a location like a motorcycle, but how big is this carb? I've never seen a very small Model R, if this is a Model R? |
Ernie
Senior Member
Username: ernie
Post Number: 1669
Registered: 01-2002
| | Posted on Friday, May 10, 2013 - 09:08 pm: |
|
Best guess...
Automotive Old Stude or Marmon
Try the AACA forum
http://forums.aaca.org/forum.php |
RichardDurgee
Senior Member
Username: richarddurgee
Post Number: 3026
Registered: 11-2001
| | Posted on Friday, May 10, 2013 - 09:43 pm: |
|
*

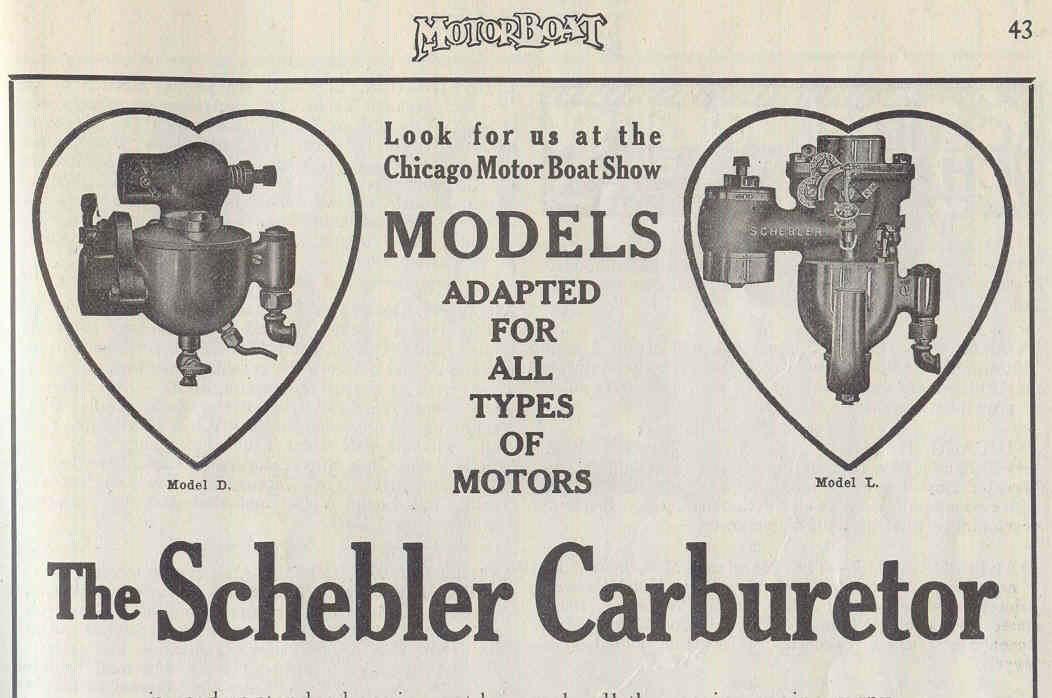

Its a Schebler Model L, they were advertised for marine engines on some of the higher end engines begining 1913. It was a new technology that incorporated a needle valve that progressively opened as engine was brought up to speed ! It was the successor to the model R.
I have never seen an ad that had the protective cover over the needle valve mechanism, I would guess that a tractor, bulldozer or similar equipment with exposure to debris coming from the side would be the application ?
This L carb has an adapter on the intake flange to allow fitting to pipe thread.These carbs also came in right or left applications so photo is not backwards !
* |
RichardDurgee
Senior Member
Username: richarddurgee
Post Number: 3028
Registered: 11-2001
| | Posted on Saturday, May 11, 2013 - 01:19 am: |
|
*

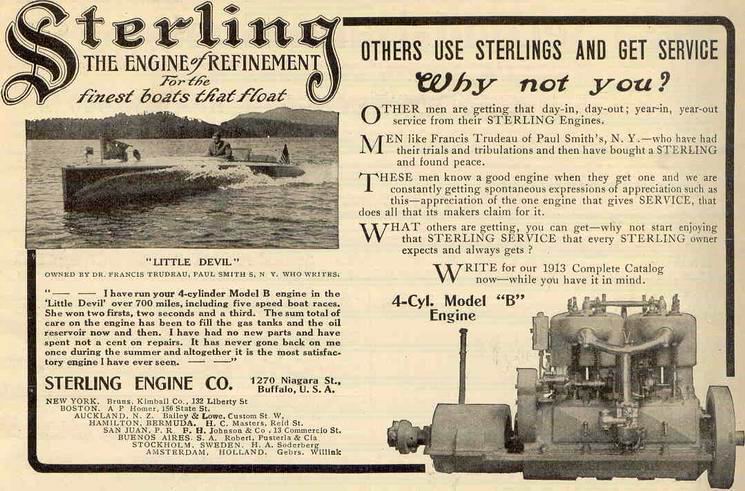

1913 Sterling with Schebler Model L .
* |
B. Goss
Senior Member
Username: bgoss
Post Number: 200
Registered: 12-2007
| | Posted on Saturday, May 11, 2013 - 04:17 pm: |
|
Thanks guys. That nails it as a Model L. Shows up on cars, trucks, marine & tractors by the looks of it. Quite an intricate set of adjustments to take care of.
Thanks again,
Blair |
William Schaller
Senior Member
Username: billschaller
Post Number: 567
Registered: 12-2003
| | Posted on Sunday, May 12, 2013 - 12:34 am: |
|

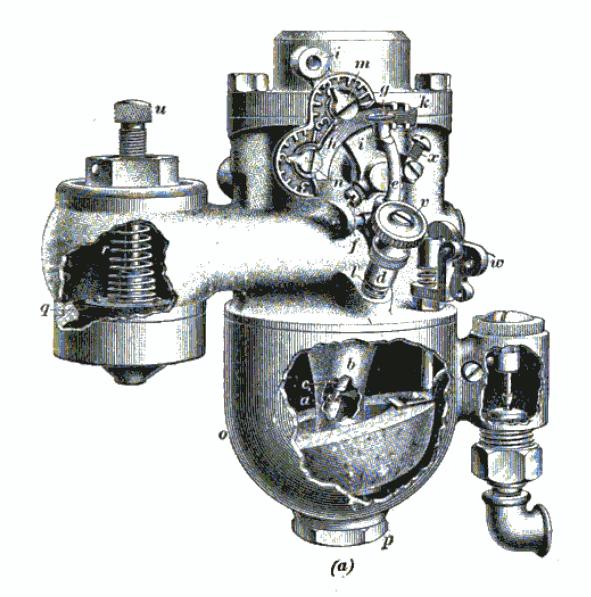

model L
 |
