| Author |
Message |

andrew
| | Posted on Wednesday, December 11, 2002 - 10:08 pm: |
|
Richard Durgee has sent in a write-up on Gray Motor Company Serial number identfication. Before posting it in a "permenant" location on the site he suggest that we post it here for feedback.
See: Gray Motor Serial numbers
... sorry about how some of the text has wrapped... I will fix that when we finalize it.
Thanks Richard, this sort of thing makes a lasting contribution to the hobby!
Editor's note on Dec. 19, 2002: Richard has submitted a revised list for review, here is the link to the "version 2" page. I will also post a new message at the end of this thread, but I thought it might be usefull to have the link to the revision here too. |
Bill Schaller
| | Posted on Wednesday, December 11, 2002 - 10:53 pm: |
|
This is the brass tag for engine 010s724. as you can see, it is not incomplete.
 |
Bill Schaller
| | Posted on Wednesday, December 11, 2002 - 11:02 pm: |
|
Oops, did you mean incomplete serial number, or incomplete engine? I will go out to the shed and see if I can find a few more numbers. |
rbprice
| | Posted on Thursday, December 12, 2002 - 02:33 pm: |
|
Richard - put a copywrite notice on your listing!!!!
Bob Price |
Bill Schaller
| | Posted on Thursday, December 12, 2002 - 09:24 pm: |
|
first a correction. the engine I have listed as 06R2922 does not have an oiler as listed, it does have a detroit standard gear tranny.
the picture was switched with 04S3349, a model s with detroit driven oiler and tranny. this one is not on the list.
engine number 010s724 is a 10 hp model S. it should be on the s list, not the r list
engine 010R1371 is a stationary model R 10 hp single. it is not on the list.
engine S12296 is a model s, single, not on the list.
engine 3U2835 is a model U single, not on the list
engine 26U10911 is a model u twin, not on the list.
now that I have found where the serial number is stamped on the flywheel, I should be able to find it on a few more. |
richarddurgee
| | Posted on Thursday, December 12, 2002 - 11:32 pm: |
|
Bill,
I'll make the adjustments to the list and add the new numbers and any others that come in and resend the new list to Andrew to post next week.
=
On eng 010s724-- not sure what the small s denotes? if eng has nut on shaft then it should be a 1920 and model S was not made after 1913 ??
then its an R ??? need some feed back ??
=
on eng 3U2835 it could be a 1912 waterpump front
or 1922 aft pump ??
we'll get it sorted out ! |
Bill Schaller
| | Posted on Friday, December 13, 2002 - 06:49 am: |
|
I have no doubt that 010S724 is a model S, it has hp listed as 10S, and it was equiped with a pulley drive oil pump. it has a nut on shaft.

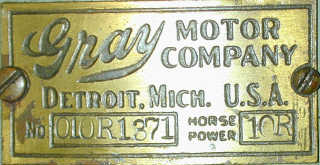

you can compare the nametag to this model R one.
3U2835 has an aft plunger pump, |
richarddurgee
| | Posted on Friday, December 13, 2002 - 07:57 am: |
|

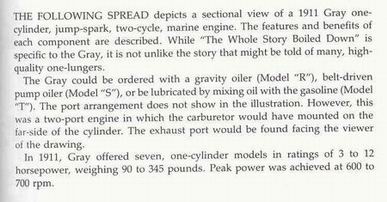

This info is in back of Stan Graysons book "Old Marine Engines" I'm sure its from a 1911 Gray catalog !
By 1914 catalog only the R model with no oilers
and the T was a completely new eng design ?? |
richarddurgee
| | Posted on Friday, December 13, 2002 - 08:30 am: |
|
1914 Gray Catalog
From what I've seen of the Miss River, seems "MUD"
would have been a better word than "SAND" |
Bill Schaller
| | Posted on Friday, December 13, 2002 - 03:22 pm: |
|
But, at the time the river was not dammed. My grandfather lived on a Mississippi backwater, and before the dams, it was a wonderful spring fed lake with sandy bottom. All the mud went down river in the spring floods. after the 1937 dam went in, it was a mud hole. also, the clammers would have been in sandy areas, I think. I have a scientific america somewhere that talks about it. |
J.B. Castagnos
| | Posted on Saturday, December 14, 2002 - 06:48 pm: |
|
Looking in the shed I ran across part of a two cylinder Gray, the flywheel is held on by a nut. Serial # 26U10450 |
richarddurgee
| | Posted on Saturday, December 14, 2002 - 08:27 pm: |
|
J.B.
Gray Model U 1920 twin has been added to the eng list --- Thanks |
miro
| | Posted on Sunday, December 15, 2002 - 05:03 pm: |
|
Intersting observation - my serial number is stamped on the body of the cylinder directly. Others have the serial number on a brass plate - I wonder when THAT change occurred?
miro |
andrew
| | Posted on Thursday, December 19, 2002 - 01:18 pm: |
|
Richard has submitted a revised Gray Serial number list for review,
here is the link to the Version 2 page.
Any further additions or comments can be posted below. |
richarddurgee
| | Posted on Thursday, December 19, 2002 - 02:30 pm: |
|
Gray engine list revision
Look at this and if all is OK Andrew will put it in the Gray Engine listing !
Any new information or engine numbers that come up just post them here and I will periodically revise this list. THanks for all your help! |
Bruce
| | Posted on Saturday, December 21, 2002 - 06:26 pm: |
|
Richard, My Gray 2 cycle single is #11 057, The upper case "S" is stamped above the space between the 11 and the 057. This S/N is stamped in the cylinder casting on a flat machined boss above the intake. If there was a gib key; it was cut off flush with the flywheel hub. The timer rides atop the Orberdorfer water pump behind the flywheel. #1269 is cast on the face of the flywheel along with the Gray logo. |
richarddurgee
| | Posted on Saturday, December 21, 2002 - 08:27 pm: |
|
Bruce,
Gray Model S 1911 single .
I'll add it to the list on next revision.
Thanks |
Nick
| | Posted on Sunday, December 22, 2002 - 08:33 pm: |
|
I have another single cyl. Gray if you want to add to the list. It has nut on flywheel, and water pump up front on timer shaft. Serial # on flywheel is 3U27407. It is so cracked up and so many parts missing that I think I will make a mailbox post ornament with it. |
richarddurgee
| | Posted on Sunday, December 22, 2002 - 10:25 pm: |
|
Nick,
-
Gray Model U 1917 single.
Will add it to the next revision.
-
If in the future we come to visit we'll just go to the Gray Model "u" mailbox and turn in the driveway !! |
andrew
| | Posted on Friday, December 27, 2002 - 06:38 pm: |
|
Richard,
Here is a link to a Gray Motor Co. engine for sale on ebay. The text says it is serial number 1247.
Regards,
Andrew |
richarddurgee
| | Posted on Friday, December 27, 2002 - 07:35 pm: |
|
Interesting that there is so many different
numbers on this eng, I've asked the seller if possible to send a readable pic of serial no tag ?
I'll report any info.It's a Model R and either
a 1911 0r 1915 ?? BUT NOT 1906 as claimed ! |
Nick
| | Posted on Sunday, January 05, 2003 - 04:19 pm: |
|
Richard,
#3U27407 is now employed by the U.S. Postal Service! The pay ain't much but its a job.
|
andrew
| | Posted on Sunday, January 05, 2003 - 10:14 pm: |
|

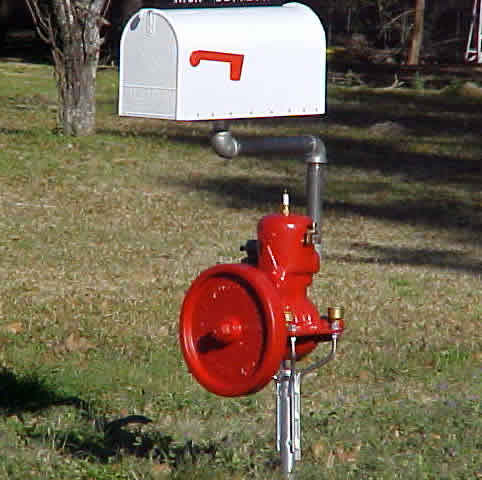

Here are Nick's pics:
 |
richarddurgee
| | Posted on Monday, January 06, 2003 - 08:34 pm: |
|
Nick
Ive got to tell you that your GRAy mail box support is just OUTSTANDING!!
Engine looks good enough to run, although you may have to open the mailbox to let the smoke out !
For the last 10 years i've had a deep sea diving helmet painted on my mail box, But after seeing
yours with the( real thing) i'm thinking of a decor change. Best of 2003 Richard |
nick
| | Posted on Tuesday, August 19, 2003 - 06:20 am: |
|
could anyone tell me the date of a model (o) no.159 four cycle and where i could get copies or photos of parts for these engines |
Joe Rolfe
| | Posted on Saturday, May 15, 2004 - 10:09 pm: |
|
Have just started working on a Gray that has been in storage - in my family since 1927. I originally mistook the casting numbers for the serial numbers Now have located the serial numbers and have a very clear read on them. 5 - 1/2 U 26110 stamped into the rim of the flywheel. We got it to fire one time today, everything seems to be there. Would appreciate any advice or info that is available. |
BK
Visitor
| | Posted on Monday, March 04, 2013 - 02:40 pm: |
|
I have a Gray Marine 6 cyl engine. The Plate says Type "M46" R
the Serial Number is 1746S
I'm trying to find oout the approximate date of this model 30's 40's or 50's
Thanks |
Paul Gray
Senior Member
Username: paulgray
Post Number: 135
Registered: 05-2003
| | Posted on Monday, March 04, 2013 - 06:24 pm: |
|
I'll have to check the serial number on the 2-cylinder, horizontally opposed Gray I have. |
