| Author |
Message |

frangord
New member
Username: frangord
Post Number: 1
Registered: 11-2005
| | Posted on Wednesday, December 21, 2005 - 02:48 am: |
|
need magneto for a usmcorp marine engine. model B(?)M-1
serial # 101459 7-6 cast on block
i can send a picture to you via email if you can help me or if you have a lead. really need to restore engine to working condition. thanks gord |
andrew
Moderator
Username: andrew
Post Number: 1304
Registered: 11-2001
| | Posted on Wednesday, December 21, 2005 - 08:42 am: |
|
Gord,
Did you try using the picture resizing tool at this link?
If you still can't get it, send the original picture(s) to me and I will post them here for you. |
solarrog
Senior Member
Username: solarrog
Post Number: 194
Registered: 03-2002
| | Posted on Wednesday, December 21, 2005 - 01:12 pm: |
|
Some of the US engines were converted Briggs and Stratton engines, I have also seen Lauson engines used by them, It is important to see the pictures so you model can be ID'ed, as far as B&S engines go I have seen the model NP,B,Z converted but them for water cooled marine use
Roger |
solarrog
Senior Member
Username: solarrog
Post Number: 195
Registered: 03-2002
| | Posted on Wednesday, December 21, 2005 - 01:23 pm: |
|
Your message mentions a magneto cap. Wisconsin engines usually have an external magneto,I keep having questions as to what you have, please email your pictures direct to me
Roger |
solarrog
Senior Member
Username: solarrog
Post Number: 196
Registered: 03-2002
| | Posted on Wednesday, December 21, 2005 - 03:56 pm: |
|
Ok I looked at your pictures and you have an air cooled Briggs and Stratton model B, Your magneto looks fine, dress the point so they are clean and make good contact, set them at .020 when you put it back together. I would change the condenser, as they go bad with age. I would clean and reseat the valves while you have it apart. The valve clearances on the old cast iron motors us generally .007 to .009 intake and .014 to .016 exhaust. I have model B brigg's in my collection, but havent found the model you have yet. yell if I can help further
Rog |
andrew
Moderator
Username: andrew
Post Number: 1306
Registered: 11-2001
| | Posted on Wednesday, December 21, 2005 - 05:36 pm: |
|

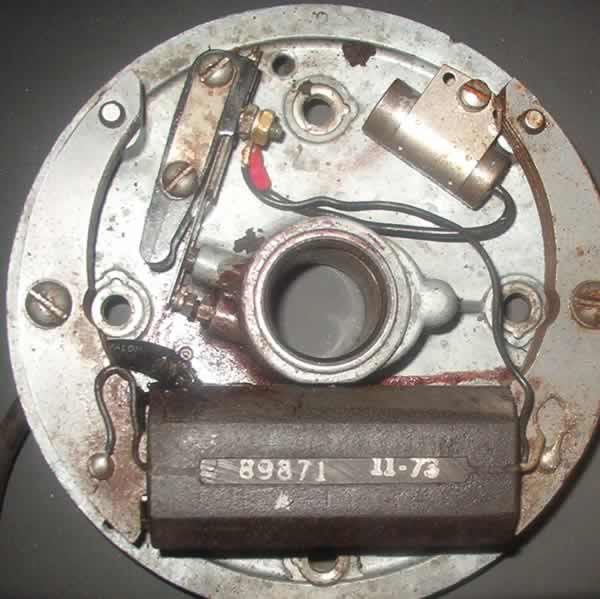

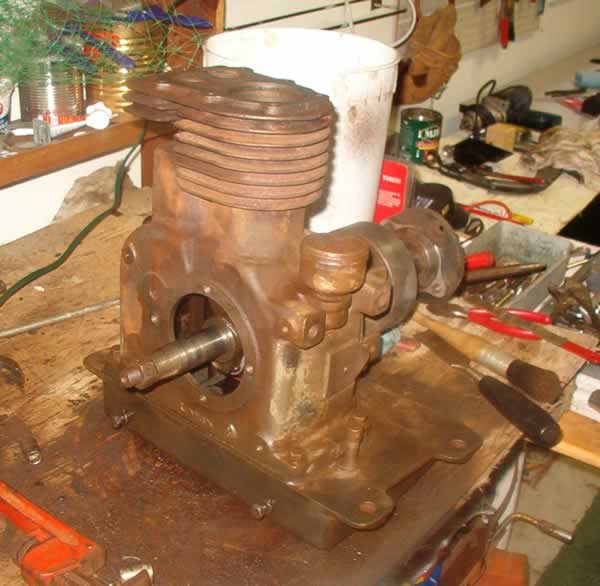

The pictures from Gord:
Note from Gord:
quote:thanks Andrew and Roger for your help in determining the model and magneto type
and the possible availability of a replacement magneto or ignition assembly.
by the way i'm a REAL novice attempting to get a 14' turner clinker
and usmc engine in the water again. thanks for your kind help.
gord
|
solarrog
Senior Member
Username: solarrog
Post Number: 197
Registered: 03-2002
| | Posted on Wednesday, December 21, 2005 - 06:51 pm: |
|
The model B is a common engine, I see them at many swap meets and on ebay all the time
You should be able to buy a engine to part out for $25 to $100 depending on condition, I do not know if new old stock or reproduced coils are available, The first place I would contact is Bob small engine repair at
http://www.bser.com or 319-377-3339
They should be able to lead you in the right direction
Roger |
richardday
Senior Member
Username: richardday
Post Number: 508
Registered: 11-2003
| | Posted on Wednesday, December 21, 2005 - 09:41 pm: |
|
I have a number of NOS B/S model ZZ coils will they fit the model B or anything other than the ZZ? |
