| motorgo, and maybe lockwood-ash? |
| Author |
Message |

Bill Schaller
| | Posted on Monday, September 09, 2002 - 08:16 pm: |
|

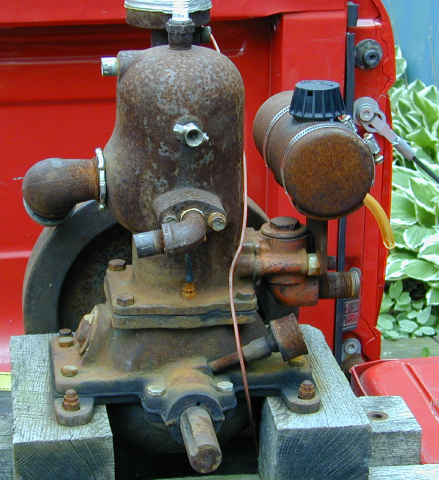

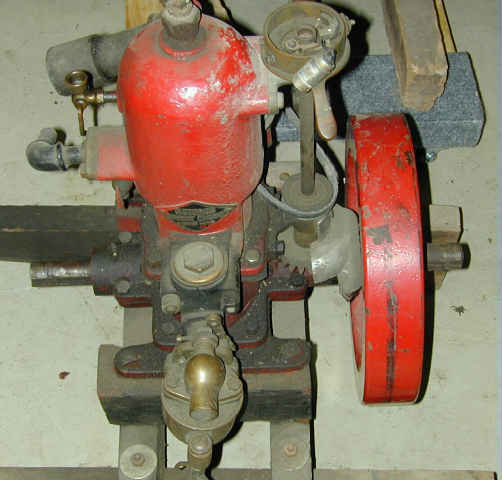

here are my motorgo, and an engine the man said was a lockwood ash.
 |
Bill Schaller
| | Posted on Monday, September 09, 2002 - 08:21 pm: |
|
should they have water pumps on them? |
J.B. Castagnos
| | Posted on Monday, September 09, 2002 - 11:27 pm: |
|
Bill, you will need a pump, a strap, and an eccentric-coupler. These are both 2 1/2 hp Lockwood Ash, use a two bolt pump. Art Dekalb has castings, the pumps are not cored, lots of machine work, but it can be done. It will add to the value of the motors. |
richarddurgee
| | Posted on Saturday, January 25, 2003 - 07:39 pm: |
|

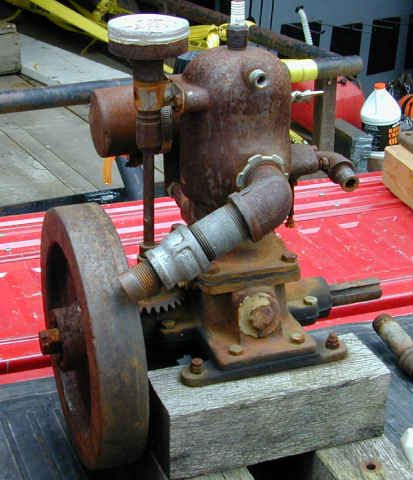

Thought this tag was interesting !
 |
J.B. Castagnos
| | Posted on Saturday, January 25, 2003 - 08:51 pm: |
|
Richard, I have a Motorgo like this, different tag. My engine has a Lunkenheimer mixer with a place for an oiler on the intake, about 1910 from what I've seen. The 1912 doesn't have the oiler port. I have an original drawing of the exhaust manifold, made one from a pipe nipple. It looks pretty good but I have since seen Audie Taquino's with an original manifold in poor shape, may have some cast in the future. On the Lockwoods the first digit of the serial # is for the hp, remaining numbers would be the production number, 2125 would be the 125th 2 hp. Don't know if Motorgo shared this numbering system. |
Richard Day
| | Posted on Sunday, January 26, 2003 - 11:49 am: |
|
Is there any real difference between this model of Sears MOTORGO and Lockwood Ash? My understanding of MOTORGO is it was a Sears label they tacked on all their marine engines they sold. Many were much earlier and different from the Lockwood Ash manufactured version. JB didn't Nadler go on making this model MOTORGO for Sears after LOCKWOOD ASH sold out to NADLER in the early 1920s? Is there any detectable difference between the MOTORGO, Nadler and Lockwood Ash engines other than the nameplate? |
J.B. Castagnos
| | Posted on Sunday, January 26, 2003 - 03:06 pm: |
|
The tag on this engine says Lockwood-Ash Motorgo. That's the first time I've seen both names on one tag. These engines were almost identical other than the name. On the 4hp Motorgo the primer cup was in a different location for some reason. The engine in the above picture is an early production, it has a bolt on exhaust manifold, most were like the engines in the first pictures, exhaust threaded into the block. Nadler didn't produce engines for Sears. The only way I can tell a Nadler from an L-A without the tag is by the machine marks. Nadler machined most of the flat surfaces on a lathe with radial machine marks out from the center. L-A used a rotary cutter that left marks across the surface, like this (((((((. J.B. Castagnos |
Richard Day
| | Posted on Sunday, January 26, 2003 - 08:49 pm: |
|
Thanks JB. |
richarddurgee
| | Posted on Sunday, January 26, 2003 - 10:56 pm: |
|
J.B. Great information THANKS !
When you cast the two bolt exhaust manifolds
put me down for one. |
primetrucks
| | Posted on Monday, March 01, 2004 - 11:23 pm: |
|
richard the little red lockwood-ash/ motorgo does it turn over or runs? |
primetrucks
| | Posted on Monday, March 01, 2004 - 11:28 pm: |
|
hi bill schaller would the little red motorgo be up for grabs? |
J. R. Larsen
Visitor
| | Posted on Saturday, September 25, 2004 - 06:50 pm: |
|
Looking for info on: Motorgo Marine Engine 8 HP,
2 cycle, 2 cyl. |
jb_castagnos
Senior Member
Username: jb_castagnos
Post Number: 215
Registered: 07-2002
| | Posted on Sunday, September 26, 2004 - 01:21 am: |
|
What do you need to know about it? I have some info. |
J. R. Larsen
Visitor
| | Posted on Saturday, October 30, 2004 - 10:36 pm: |
|
Motorgo Marine Engine 8 HP, 2 cycle, 2 cyl: Looking for general info, any manuals available, pictures, can it be aged by serial number? Thanks for any help you can give. |
richarddurgee
Senior Member
Username: richarddurgee
Post Number: 590
Registered: 11-2001
| | Posted on Sunday, October 31, 2004 - 09:51 pm: |
|
The early twins had separate cylinders, after (ca 1915) they were en-bloc !
e-mail me photos Ill post them here.
Whats serial number ?
[email protected] |
george tolbert
Visitor
| | Posted on Thursday, January 22, 2009 - 03:20 pm: |
|
to jb castanos we have come across a nadler engine it is ether a 2 or 21/2 horse we would like to know more about this engine it also has numbers on it either 2g39 or2039 on the plate and possibly ()g68 on the engine we have no e-mail but we do have a phone 6012010270 please call us or anyone else with info. thank you |
danny
Visitor
| | Posted on Sunday, August 16, 2009 - 05:55 pm: |
|
i have a motorgo marine engine NO 2268 what is the year of mine and what is it worth missing a magino and is there any one interested in it |
jb_castagnos
Senior Member
Username: jb_castagnos
Post Number: 466
Registered: 07-2002
| | Posted on Sunday, August 16, 2009 - 07:34 pm: |
|
Danny, Sears sold a few different engines under the Motorgo name. Lockwood Ash manufactured most of them, does it look like the ones at the beginning of this post? I may be interested, can you send pictures? If you click on my name at the left you should get my address.
Thanks, J.B. |
|
|
|
|
