th2oman
New member
Username: th2oman
Post Number: 1
Registered: 01-2018
| | Posted on Saturday, January 20, 2018 - 09:53 am: |
|
I recently picked up a Waterman A4 engine. Any information and pictures would be greatly appreciated. Thanks |
robert
Senior Member
Username: robert
Post Number: 930
Registered: 07-2003
| | Posted on Saturday, January 20, 2018 - 04:58 pm: |
|
Sure would be.  If you need help posting them someone here will help. |
th2oman
New member
Username: th2oman
Post Number: 2
Registered: 01-2018
| | Posted on Saturday, January 20, 2018 - 06:00 pm: |
|

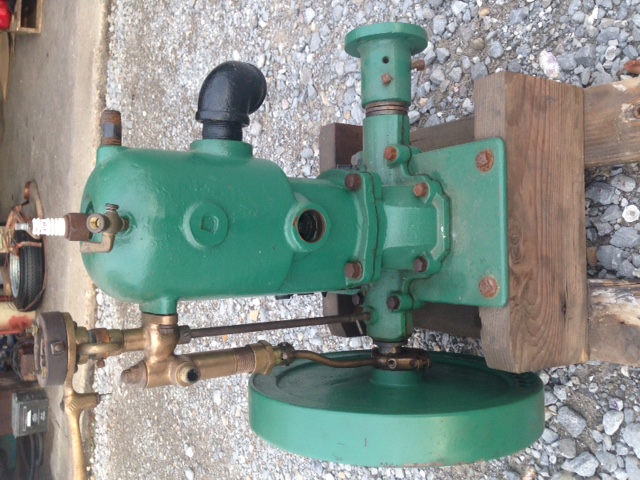

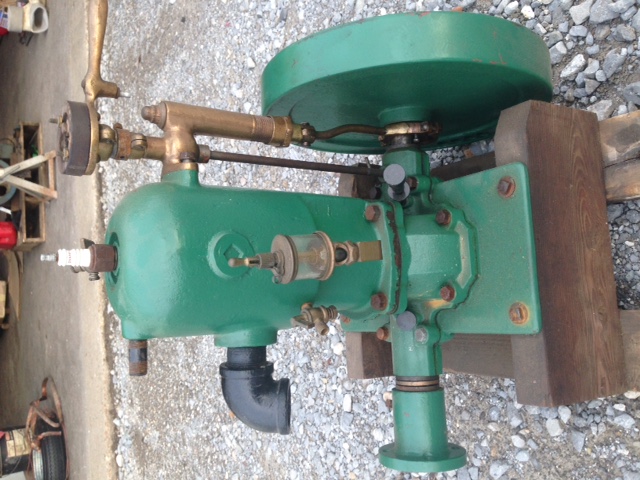

I was waiting for a response like that. I didn't have time to get any pictures until now. Here are a couple, it is rough shape, missing the carb and someone mounted a distributor instead of the original timer. Hoping for some pictures of other ones to compare to see what everything should look like. Was also wondering about the year of MFG. I really don't know too much about old marine engines, I'm more into hit and miss engines so any information would be awesome.
Thanks.
   |
ernie
Senior Member
Username: ernie
Post Number: 2438
Registered: 01-2002
| | Posted on Saturday, January 20, 2018 - 07:45 pm: |
|
Here are some pics for you
Hope this helps
Ernie
http://www.oldmarineengine.com/discus/messages/1/105203.html |
th2oman
New member
Username: th2oman
Post Number: 3
Registered: 01-2018
| | Posted on Saturday, January 20, 2018 - 11:01 pm: |
|
Thanks Ernie |
jim_parrott
Senior Member
Username: jim_parrott
Post Number: 164
Registered: 06-2009
| | Posted on Sunday, January 21, 2018 - 08:08 am: |
|
th2oman,
Looks like a nice engine with original paint.
I have one also. My pot metal bevel gears have deteriorated, and need replacing.
Jim |
rbprice
Senior Member
Username: rbprice
Post Number: 574
Registered: 11-2001
| | Posted on Sunday, January 21, 2018 - 01:49 pm: |
|
Jim - send me some pictures of the gears with some dimensions and I may be able to reverse engineer them and have some replacement gears made for you. |
ernie
Senior Member
Username: ernie
Post Number: 2440
Registered: 01-2002
| | Posted on Sunday, January 21, 2018 - 09:06 pm: |
|
I got the replacement ones on Dick Day's engine from Boston Gear.
However that was about 20 years ago and I don't remember the specs other than they were stock gears. |
jim_parrott
Senior Member
Username: jim_parrott
Post Number: 166
Registered: 06-2009
| | Posted on Monday, January 22, 2018 - 08:24 am: |
|
Th2oman,
My A4, I am missing the timer cover, but you can see how the inside works.
Hope this helps.
 |
jim_parrott
Senior Member
Username: jim_parrott
Post Number: 167
Registered: 06-2009
| | Posted on Monday, January 22, 2018 - 09:21 am: |
|
Bob and Ernie,

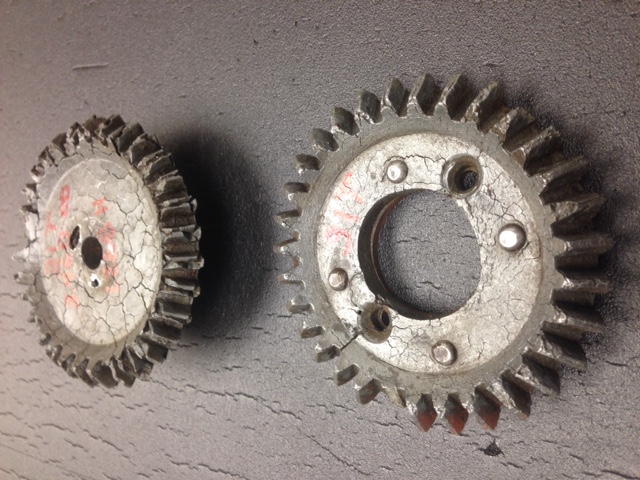

Pics of my Waterman gears,
Flywheel gear:
31 Teeth
3.460 OD
.530 Height
.680 Height with spacer
.430 Tooth face width
1.250 Bore
Timer side:
1.268 Height
.375 Bore
All measurements are approximate due to deterioration.
I will try to make some, if close replacements are not available. Have been reading up on it a little, and still stumped on few steps in the process but should be able to wing it.
Thanks for the support,
Jim
 |
rbprice
Senior Member
Username: rbprice
Post Number: 575
Registered: 11-2001
| | Posted on Monday, January 22, 2018 - 03:20 pm: |
|
Jim - I just looked through my Boston Gear catalogs and could not find anything that looked like those bevel gears. Why not put them into a box and send them to me and let me see what can be done to replicate them? |
jim_parrott
Senior Member
Username: jim_parrott
Post Number: 168
Registered: 06-2009
| | Posted on Monday, January 22, 2018 - 09:30 pm: |
|
Bob,
I just received some gear cutters in the mail this week and I think they will work fine. I'm gonna give it a shot. I'll keep you posted when I get started.
Thanks,
Jim |
th2oman
Member
Username: th2oman
Post Number: 4
Registered: 01-2018
| | Posted on Monday, January 22, 2018 - 10:45 pm: |
|
Thanks Jim , could you take a good picture of the carburetor as well?
Bob, we might be looking at getting a new set of gears for ours as well. We have an idea of a guy that might be able to make them, but if not I might be interested you trying to make some if your still up for it. |
jim_parrott
Senior Member
Username: jim_parrott
Post Number: 169
Registered: 06-2009
| | Posted on Tuesday, January 23, 2018 - 08:36 am: |
|
Th2oman,
If you look at Keith and Dicks engines on the above link, you will see they have 1' Schebler D type carburetors. Mine had an Acorn carburetor that looks similar, with a integral check valve, probably not the original for my engine. I believe these are 3 port engines and if so do not need a check valve. Schebler's are easy to find and would be a good match for it. A right hand Lunkenheimer would also be a good fit.
Jim |
th2oman
Member
Username: th2oman
Post Number: 5
Registered: 01-2018
| | Posted on Tuesday, January 23, 2018 - 08:23 pm: |
|
Thanks again Jim |
