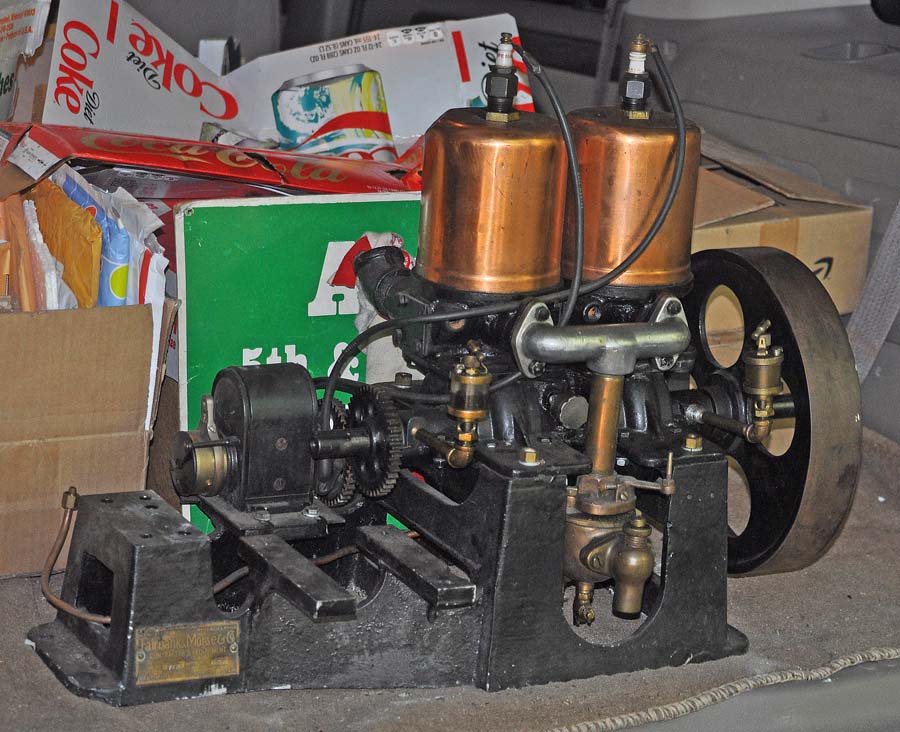

I'd like to 'beautify' this engine a bit. Any tips on removing the copper shells & 'body & fender' work to smooth the shells?
 |
jb_castagnos
Senior Member
Username: jb_castagnos
Post Number: 1249
Registered: 07-2002
| | Posted on Friday, November 11, 2016 - 08:27 pm: |
|
I've removed several, made a tool to help. The ring at the bottom has to be removed, some tap them off, others heat them, I cut most of the way through with a Dremel, broke it, re welded it. You can heat it and drop it on when replacing it. I think the bushing-retainer at the top of the cylinder is 1" 18tpi. I threaded a 6" piece of shaft to screw in place of the bushing. A 4" piece of 1" heater hose was slipped over and pushed against the cylinder, clamped with a hose clamp. Remove the primer cup and use a hose clamp to clamp a piece of rubber over the hole, block the water pump inlet. Connect a garden hose to the water outlet and the cylinder should rise off. |
squareroot
Senior Member
Username: squareroot
Post Number: 55
Registered: 09-2013
| | Posted on Friday, November 11, 2016 - 08:45 pm: |
|
Thanks for sharing your experience, J.B. That should be a great help! wayne |
jb_castagnos
Senior Member
Username: jb_castagnos
Post Number: 1251
Registered: 07-2002
| | Posted on Saturday, November 12, 2016 - 08:47 am: |
|
I thought I had a post on it, link below.
http://www.oldmarineengine.com/discus/messages/1/113353.html#POST23174 |
squareroot
Senior Member
Username: squareroot
Post Number: 56
Registered: 09-2013
| | Posted on Saturday, November 12, 2016 - 11:23 am: |
|
I see it. Thanks again, J.B.!
wayne |
raa
Senior Member
Username: raa
Post Number: 141
Registered: 02-2007
| | Posted on Saturday, November 12, 2016 - 04:05 pm: |
|
Wayne
I sent you a lot of pictures that should answer any of your questions. If not just call me at the number I gave you.
Dick |
squareroot
Senior Member
Username: squareroot
Post Number: 57
Registered: 09-2013
| | Posted on Saturday, November 12, 2016 - 04:35 pm: |
|
Yes, Dick I got them. Great pictures! Will be very helpful. Sorry that you didn't receive my 'thank-you.' Email is not 100% dependable; is it?! Thanks again.
wayne |
