| Author |
Message |

regsnz
New member
Username: regsnz
Post Number: 1
Registered: 09-2015
| | Posted on Thursday, October 15, 2015 - 04:56 am: |
|

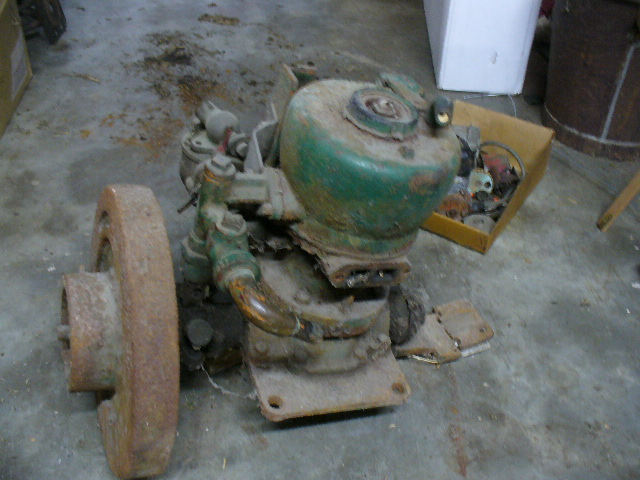

Just got this engine for free with another engine I bought. Looks to be a penguin maybe 4 or 5hp? Has a sprocket where the mag sits, probably not original, can anyone tell me what the original magneto would have been?  |
johnoxley
Senior Member
Username: johnoxley
Post Number: 144
Registered: 04-2010
| | Posted on Thursday, October 15, 2015 - 06:51 am: |
|
Hi - The maggy sits forward of the crankshaft on the small base, which on your engine looks to be broken. Advantage of these motors is that the water jacket is removable, allowing the owner to chip away at the dreaded internal rust (until you chipped into the cylinder space!). |
regsnz
New member
Username: regsnz
Post Number: 2
Registered: 09-2015
| | Posted on Sunday, October 18, 2015 - 04:44 am: |
|
So what type of mag did they originally use and is it couple drive or chain drive? Has orange paint underneath sliver, which is underneath green so guessing it was originally painted orange |
qwilkin
Senior Member
Username: qwilkin
Post Number: 99
Registered: 08-2009
| | Posted on Sunday, October 18, 2015 - 04:59 am: |
|
this link may be of help Quinton
https://www.google.com.au/search?q=penguin+marine+engines&biw=1164&bih=817&tbm=i sch&tbo=u&source=univ&sa=X&ved=0CDQQsARqFQoTCLyOm8bTy8gCFQqSlAoduVwFEQ#imgrc=_rH KA1Ui5BOEgM%3A |
qwilkin
Senior Member
Username: qwilkin
Post Number: 100
Registered: 08-2009
| | Posted on Sunday, October 18, 2015 - 05:09 am: |
|
Here is a u tube of one just restored and run a single penguin
Quinton https://www.youtube.com/watch?v=Q4qMjA6AQlc |
qwilkin
Senior Member
Username: qwilkin
Post Number: 101
Registered: 08-2009
| | Posted on Sunday, October 18, 2015 - 05:22 am: |
|
Here is a penguin same as yours running show the location of the mag wooden boat festival Hobart 2015
https://www.youtube.com/watch?v=ZG0p0MJqnZ8
Quinton |
qwilkin
Senior Member
Username: qwilkin
Post Number: 102
Registered: 08-2009
| | Posted on Sunday, October 18, 2015 - 05:36 am: |
|
http://i240.photobucket.com/albums/ff112/igatenby/a1-2.jpg
REG THIS ALSO MAY HELP WITH THE PENGUIN THE BLUE ON IN THE PICTURE |
johnoxley
Senior Member
Username: johnoxley
Post Number: 145
Registered: 04-2010
| | Posted on Sunday, October 18, 2015 - 05:47 am: |
|
Hi - See http://www.oldmarineengine.com/history/Penguin/penguin_marine_engine.htm
Shows in-line dog drive maggy. Removable for storage off-boat in a warm dry place conducive to health of magnetos. |
regsnz
New member
Username: regsnz
Post Number: 3
Registered: 09-2015
| | Posted on Wednesday, October 21, 2015 - 05:59 am: |
|
Is there a reason why it has a sprocket? I have seen some with them and some without them. |
johnoxley
Senior Member
Username: johnoxley
Post Number: 147
Registered: 04-2010
| | Posted on Wednesday, October 21, 2015 - 04:26 pm: |
|
Suggest alternative maggy drive as bracket broken? |
qwilkin
Senior Member
Username: qwilkin
Post Number: 103
Registered: 08-2009
| | Posted on Wednesday, October 21, 2015 - 07:27 pm: |
|
I have seen two variations one with a similar toothed wheel joined together with a duplex chain and also the mag mounted above the cog wheel again joined by the single link chain in all respects a Ne bracket will need to be made as per johns suggestion Quinton |
qwilkin
Senior Member
Username: qwilkin
Post Number: 109
Registered: 08-2009
| | Posted on Sunday, November 01, 2015 - 05:01 pm: |
|
Am looking at restoring a Simplex marine Ford side valve 100E engine and FNR gearbox anyone have any ideas the whereabouts of information
Quinton |
oceans15
New member
Username: oceans15
Post Number: 2
Registered: 06-2014
| | Posted on Tuesday, March 15, 2016 - 02:39 am: |
|
Mine has a Lucas SR1 - chain drive is not original |
