| Author |
Message |

modhydro
Advanced Member
Username: modhydro
Post Number: 32
Registered: 08-2004
| | Posted on Wednesday, July 15, 2015 - 03:03 pm: |
|

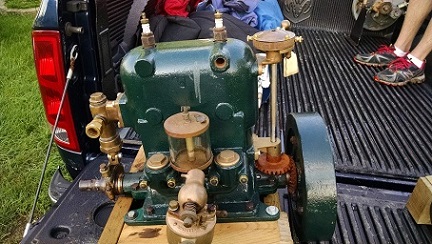

It was a great weekend and I picked up this one also. They were both from a friend from the AOMCI. We had a nice display of inboard engines at our larger summer meet and one thing led to another.....
I'm sure that JB can tell me all I need to know about this one such as the year. I know it needs rings, but other than that is in pretty nice condition.  } |
modhydro
Advanced Member
Username: modhydro
Post Number: 33
Registered: 08-2004
| | Posted on Wednesday, July 15, 2015 - 03:03 pm: |
|
 |
modhydro
Advanced Member
Username: modhydro
Post Number: 34
Registered: 08-2004
| | Posted on Wednesday, July 15, 2015 - 03:04 pm: |
|
 |
jb_castagnos
Senior Member
Username: jb_castagnos
Post Number: 1077
Registered: 07-2002
| | Posted on Wednesday, July 15, 2015 - 07:42 pm: |
|
Keith Felder has started researching the ads and technical data we have, he may chime in. Just a guess I would say 1910 or earlier, low #, I only know of maybe 4 with the single check valve water pump, I believe it will need a check in the inlet line. They started around 1906. |
keith_felder
Member
Username: keith_felder
Post Number: 24
Registered: 06-2012
| | Posted on Thursday, July 16, 2015 - 08:51 am: |
|
J B is right, L-A made the 5 HP, 2 cycle from 1905 to 1911 and with a upright timer from 1908. You do have a nice engine |
modhydro
Advanced Member
Username: modhydro
Post Number: 37
Registered: 08-2004
| | Posted on Thursday, July 16, 2015 - 09:01 am: |
|
Was the hole for holding the gear cover on the front face of the timer shaft bracket? This one has one hole on the right side, but it isn't tapped. Did the earlier ones not have the cover then? |
keith_felder
Member
Username: keith_felder
Post Number: 25
Registered: 06-2012
| | Posted on Friday, July 17, 2015 - 08:56 am: |
|
my btm timer bracket has a wide yoke and the grease cpl has to be removed to install. no gear covers at this time. |
primetrucks
Senior Member
Username: primetrucks
Post Number: 55
Registered: 03-2004
| | Posted on Friday, July 17, 2015 - 02:56 pm: |
|
hi the hole on top side should be for a oil drop to get to the timer shaft. small hole in front is for a gear cover that has 1 bolt in center,i will check i had some made in the past for one of early LA engines. modhydo give me a call at 225-268-4191 and we can talk. thanks jamie |
keith_felder
Member
Username: keith_felder
Post Number: 29
Registered: 06-2012
| | Posted on Sunday, September 13, 2015 - 10:46 am: |
|
what is the ser. # of the engine |
modhydro
Advanced Member
Username: modhydro
Post Number: 40
Registered: 08-2004
| | Posted on Monday, September 14, 2015 - 09:07 am: |
|
Keith,
the tag has 421 on it. I haven't seen anything stamped anywhere. Where should I look?
Thanks |
keith_felder
Member
Username: keith_felder
Post Number: 30
Registered: 06-2012
| | Posted on Monday, September 14, 2015 - 07:49 pm: |
|
Lockwood-ash put the ser. # on the tag and on the end of the crank shaft on the flywheel end. If someone didn't hit it with a hammer or pass a file over it, it should be there. you may have to remove some paint or rust but try not to take much metal off. |
modhydro
Advanced Member
Username: modhydro
Post Number: 41
Registered: 08-2004
| | Posted on Tuesday, September 15, 2015 - 08:36 am: |
|
Keith,
I looked at the crank this morning before work and didn't see any evidence of the number. The crank end barely has any rust marks and the center drill looks pretty much perfect so I don't think it has been abused. I will look some more when I have more time. |
