| Author |
Message |

ernie
Senior Member
Username: ernie
Post Number: 2098
Registered: 01-2002
| | Posted on Sunday, June 14, 2015 - 11:20 am: |
|

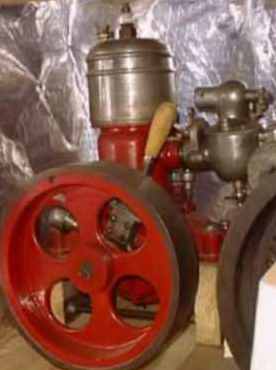

There are pics of this engine already here but I think the quality was real poor.
These were taken a long time ago and the resolution is as good as it gets.

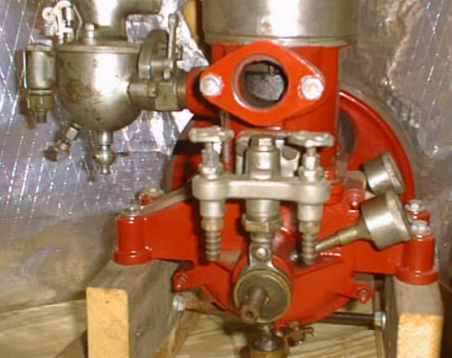

In the rear view showing the water pump if you look in the exhaust port you can see the water out tube hanging down. Not a good show engine as it is almost impossible to not have the cooling water exit into the exhaust.
It is a "salt water fitting" engine with all the brass and copper nickle plated
Enjoy
Ernie
 |
rbprice
Senior Member
Username: rbprice
Post Number: 517
Registered: 11-2001
| | Posted on Sunday, June 28, 2015 - 08:43 pm: |
|
Ernie - do you think those two plumbing valves are original to the the engine? And were they throttled to control engine temperature? |
bgoss
Senior Member
Username: bgoss
Post Number: 231
Registered: 12-2007
| | Posted on Sunday, June 28, 2015 - 09:54 pm: |
|
We had one with the same inlet taps. We assumed that one was for the bilge water and one from the lake?? Turn them on or off as needed. |
ernie
Senior Member
Username: ernie
Post Number: 2103
Registered: 01-2002
| | Posted on Monday, June 29, 2015 - 07:42 am: |
|
Yes they are original.
Actually they aren't valves. The handle is just an adjustment to prevent one or both of the two inlet check valve balls from opening.
I figure the choices are:
1 cooling water
2 bilge water
3 both closed to blow the water out of the exhaust when shutting down. |
rbprice
Senior Member
Username: rbprice
Post Number: 518
Registered: 11-2001
| | Posted on Monday, June 29, 2015 - 07:57 am: |
|
That is some clever thinking. I might just try to figure out how to do that on my boat.
Thanks guys |
