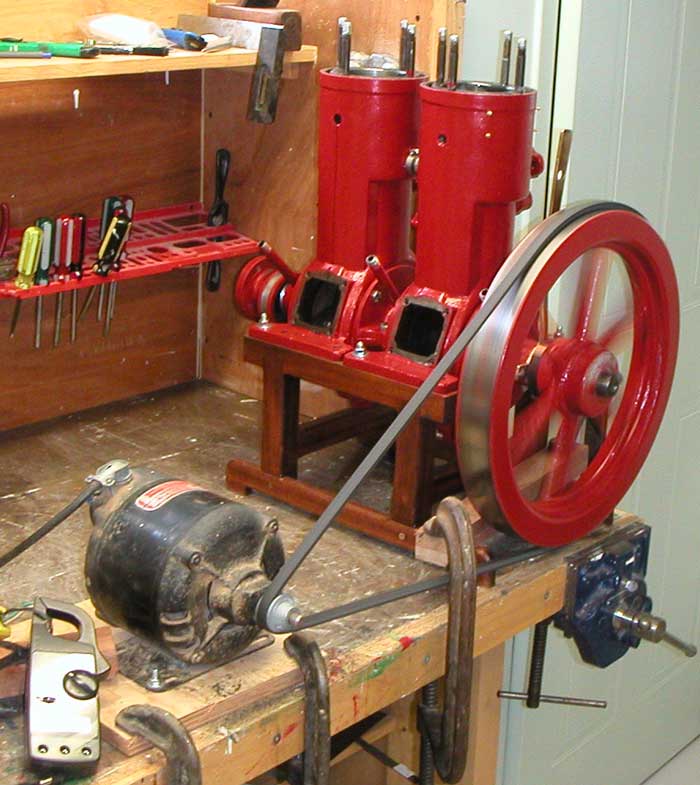

Here are some images showing a method I use for limbering up an engine with new rings and bearings. A clamp-on ammeter is shown in the foreground that displays current to the 1/3 HP electric drive motor. Current is a measure of the power required to drive the engine that is being limbered up. As this occurs current reduces to a steady level indicating the engine is run in and ready for final assembly.
Oil is added to the cylinder.
Barry
 |
david_doyle
Advanced Member
Username: david_doyle
Post Number: 31
Registered: 03-2013
| | Posted on Thursday, February 19, 2015 - 08:47 pm: |
|
Smart! |
johnny
Senior Member
Username: johnny
Post Number: 504
Registered: 03-2006
| | Posted on Wednesday, February 25, 2015 - 08:14 am: |
|
That is a great idea, I have a twin 14hp two cycle Caille I'm almost ready to start and it is a bit stiff when turning it over. Think I might do this same thing. Thanks for sharing. |
marion
Member
Username: marion
Post Number: 9
Registered: 03-2013
| | Posted on Wednesday, February 25, 2015 - 11:39 am: |
|
I like your quantitative way of breaking in an engine . . . not too little, but not too much. |
raa
Senior Member
Username: raa
Post Number: 94
Registered: 02-2007
| | Posted on Wednesday, February 25, 2015 - 07:23 pm: |
|

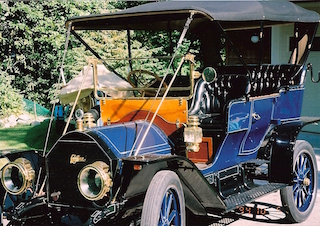

This is my 1909 Cady getting limbered up. Really helped a lot. I used a lot of oil too.
Dick
dick |
keith
Senior Member
Username: keith
Post Number: 438
Registered: 02-2002
| | Posted on Wednesday, February 25, 2015 - 09:45 pm: |
|
Dick, We need a lot more information on this neet engine and the rebuild. |
bruce
Senior Member
Username: bruce
Post Number: 480
Registered: 07-2002
| | Posted on Thursday, February 26, 2015 - 10:41 am: |
|
My eyes playing tricks again-looks like the v- banks of a Hisso hiding behind the great looking CADY ??? WOW! |
raa
Senior Member
Username: raa
Post Number: 95
Registered: 02-2007
| | Posted on Thursday, February 26, 2015 - 11:40 am: |
|
a few more pictures of the Cady project
|
