| Author |
Message |

ffholmes
New member
Username: ffholmes
Post Number: 1
Registered: 03-2014
| | Posted on Sunday, March 09, 2014 - 06:34 pm: |
|
I'm looking for any information I can get on this engine. I would like to get this running and need help with where to get a spark plug, and wiring a magneto.  |
ernie
Senior Member
Username: ernie
Post Number: 1810
Registered: 01-2002
| | Posted on Sunday, March 09, 2014 - 08:57 pm: |
|
Nice Engine
For ignition you need 2 model T Ford ignition coils.
For spark plugs you want either Motocraft or Autolite. The application to ask for is Model T Ford.
If you go to the ignition section of this web page there is info on how to wire coils and also info on how to make what you need using conventional igniiton coils,a Bosch Relay and a couple of condensers.
Hope this helps
Ernie |
jb_castagnos
Senior Member
Username: jb_castagnos
Post Number: 879
Registered: 07-2002
| | Posted on Sunday, March 09, 2014 - 09:15 pm: |
|
I have a similar engine without the reverse gear in my shop, belongs to a friend. It's a 12hp. I wasn't there when they first cranked it, but it ran away and scared them. We ran it and I got it to idle down, it's a good runner. Richard D may have a picture on file. |
richarddurgee
Senior Member
Username: richarddurgee
Post Number: 3251
Registered: 11-2001
| | Posted on Monday, March 10, 2014 - 08:25 am: |
|
*
J.B.
I looked, don't have a photo of the engine !

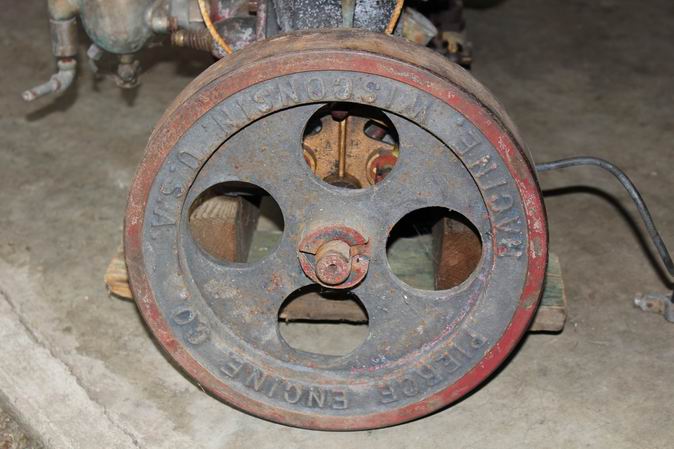

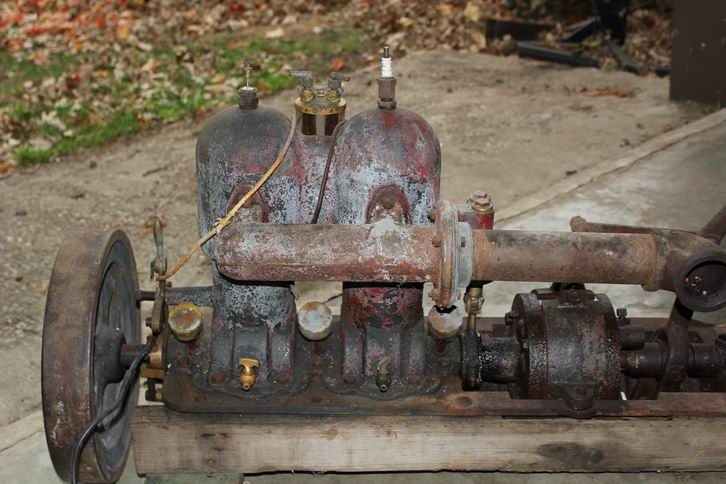

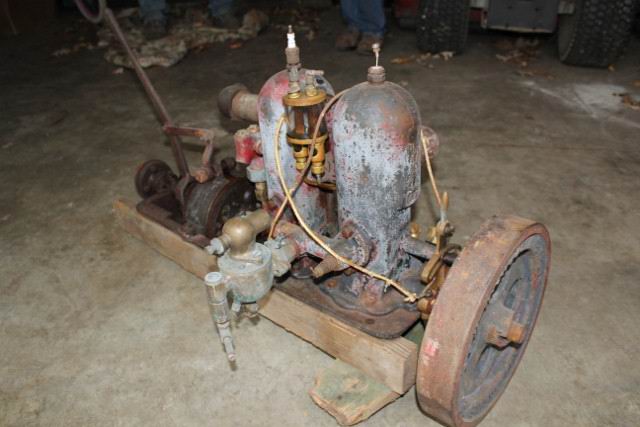

More Photos of Greg's engine in first post.
Very few twin Pierce engines in my files ?
* |
jb_castagnos
Senior Member
Username: jb_castagnos
Post Number: 883
Registered: 07-2002
| | Posted on Saturday, March 15, 2014 - 10:14 pm: |
|

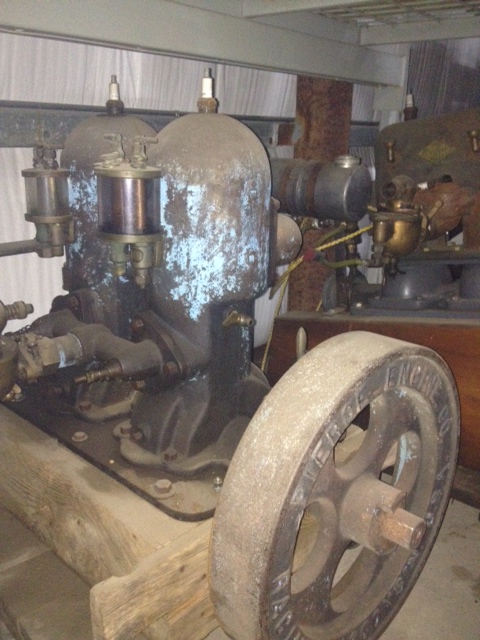

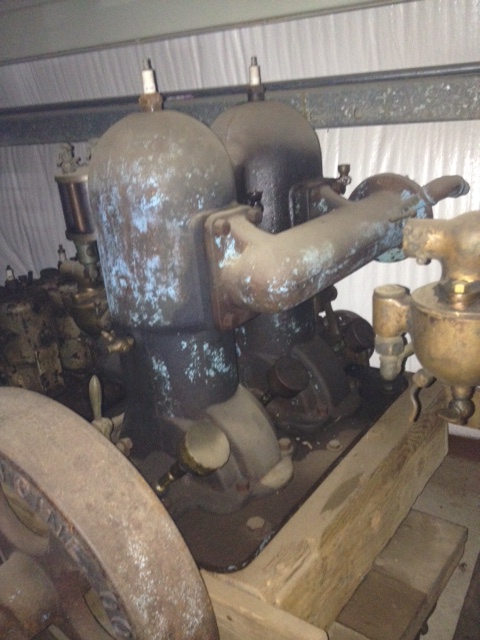

Here's some pics of the Pierce 12hp, it's under the rack, hard to get good photo's.
 |
