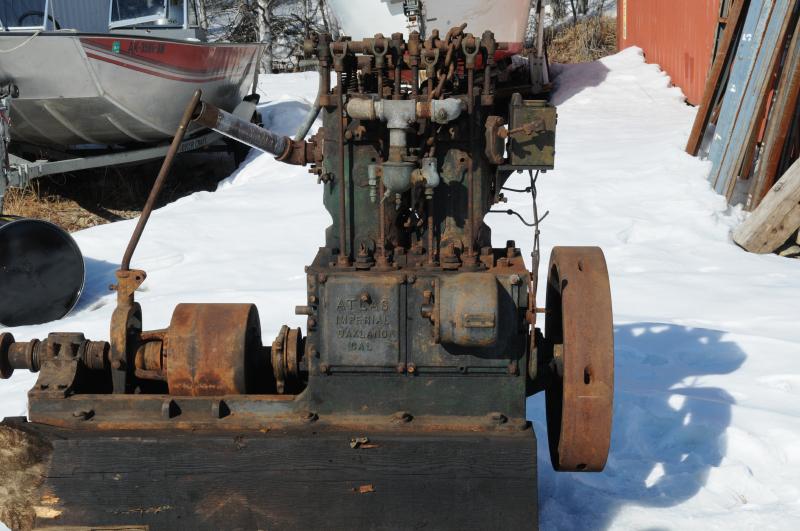

Edited e-mail from Eric and pics of an Atals 2 cylinder Gas engine
So, the question is, do you know anyone who might know where a 2, 3, or 4
cylinder Atlas exists which might show this detail. If I can get a few good
photos and a measurement or two I can fabricate the missing parts.
When I cruised around the Old Marine Engine website there is a wealth of
information there on Atlas-Imperial diesel engines and next to nothing on
Atlas-Imperial gas engines.

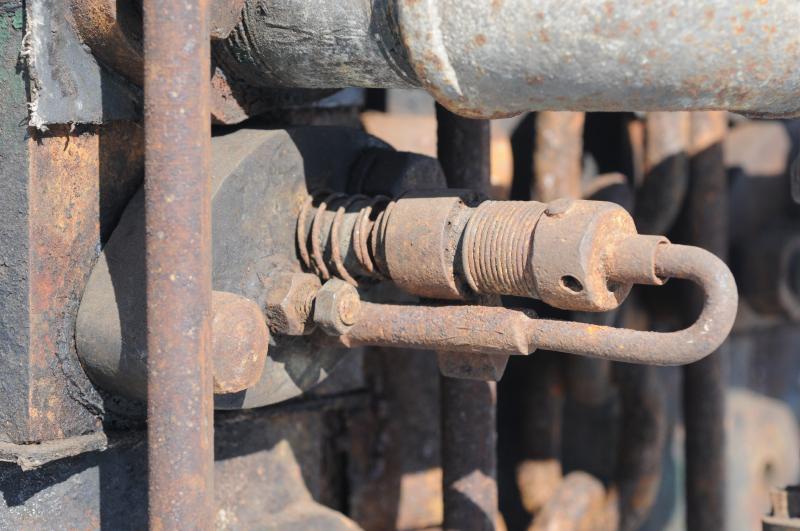

The two attached photos show the ignitor side of the engine. Both ignitors
are screwed into the cylinders but the pushrod and other linkage is missing.
At some time in the distant past an owner of the engine removed the intake
manifold and replaced it with a manifold fabricated out of pipe fittings.
When the original collector of the engine inquired about it he was told the

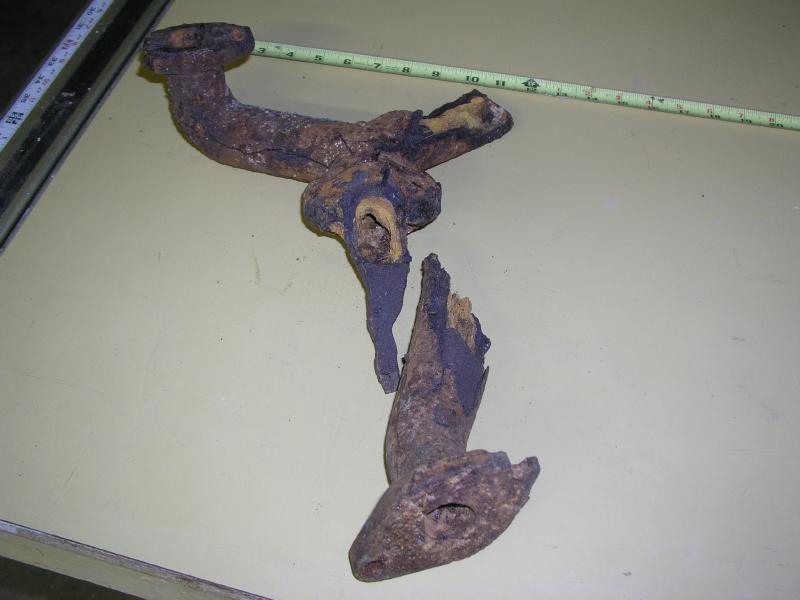

original manifold was laying in the mud on the beach. The original collector
went down on the beach and found the remnants of it and saved them so I have
enough to get measurements from for patterns for a new manifold.

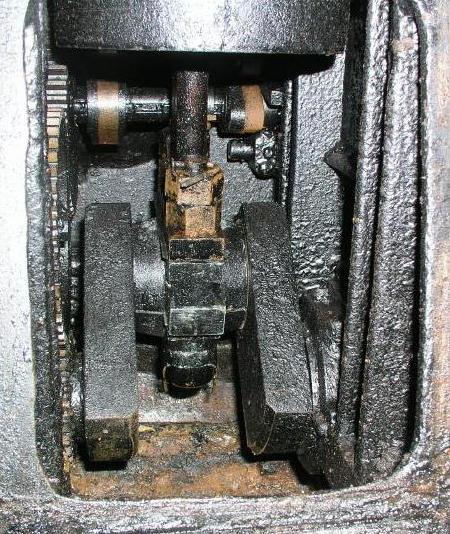

Notice a bent nail instead of a cotter pin securing the nuts on
one of the rod bearing bolts. Also notice the channels cast into the upper
crankcase to allow the cylinder hold down studs to pass through the upper
crankcase and thread into the lower crankcase. Definitely Heavy Duty.
One of the things I will eventually need is some photos of the
ignitor assemblies
 |
robert
Senior Member
Username: robert
Post Number: 606
Registered: 07-2003
| | Posted on Monday, October 14, 2013 - 12:37 pm: |
|
Very interesting engine; I have one very similar to this, perhaps identical. Is this a 16hp model?
There is a round bodied "balancing valve" that goes below the "Y" in the inlet manifold. I believe I know of another engine missing this part as well, so if you get any cast please let us know. I'll pass on a link to this page to the owner of that engine. There is another in WA, but with cylinders cast en bloc.
You seem to be missing the clutch "clamps" and the water pump as well?
Would you mind telling me what exact model of Manzel lubricator is fitted and whether it is steel or brass bodied?
Mine is stripped to a "short block" at the moment so I can perhaps help with dimensions and photos if you need them. Not sure if I have the ignitor push rods or not. |
robert
Senior Member
Username: robert
Post Number: 607
Registered: 07-2003
| | Posted on Monday, October 14, 2013 - 01:20 pm: |
|

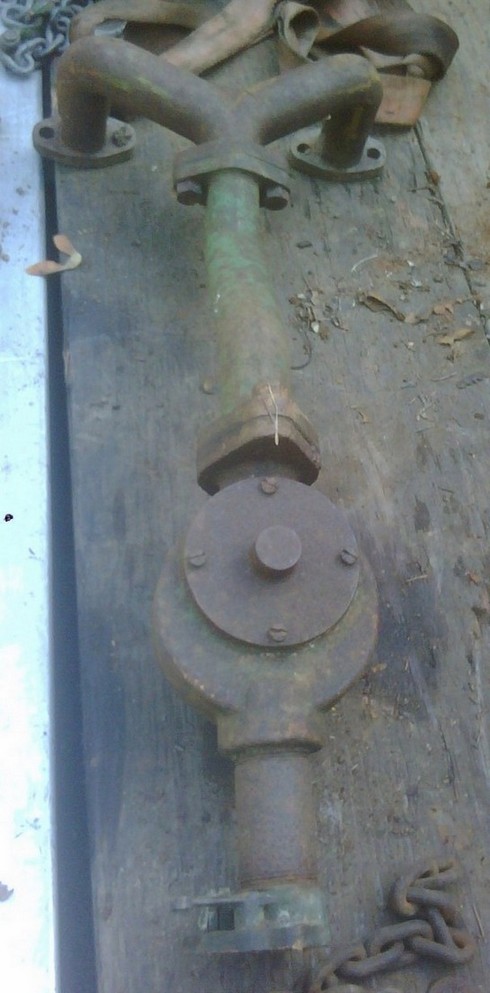

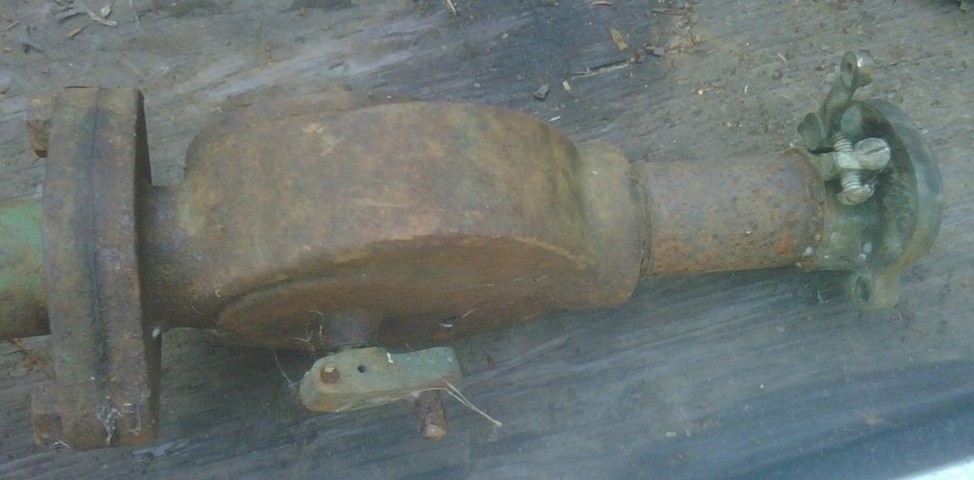

Here are a few shots of the manifold. Obviously with that placement it is not a balancing valve; my memory was at fault.
|
robert
Senior Member
Username: robert
Post Number: 608
Registered: 07-2003
| | Posted on Monday, October 14, 2013 - 01:31 pm: |
|
And here after making them all smaller than 100Kb.
 |
eric_johansen
New member
Username: eric_johansen
Post Number: 1
Registered: 11-2013
| | Posted on Thursday, November 14, 2013 - 03:04 am: |
|
