| Author |
Message |

ernie
Senior Member
Username: ernie
Post Number: 1730
Registered: 01-2002
| | Posted on Saturday, September 28, 2013 - 06:53 pm: |
|

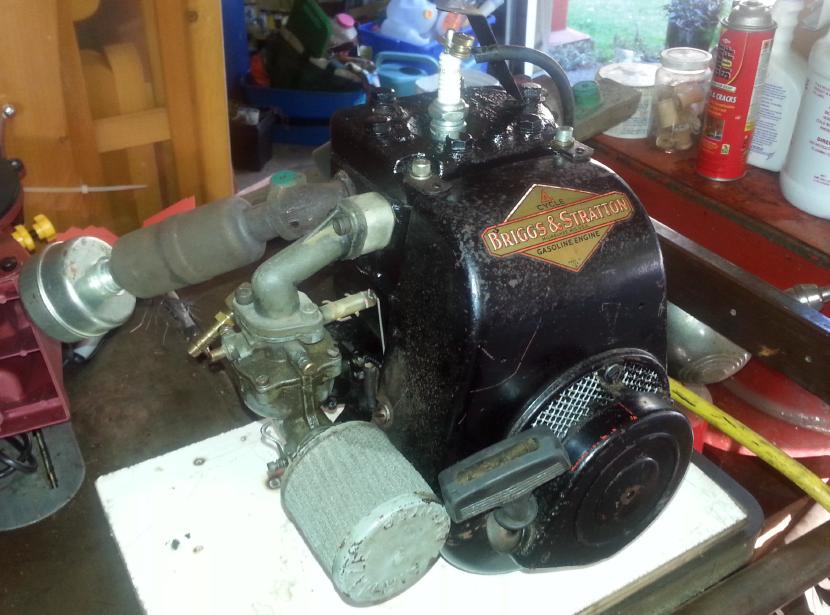

Briggs and Stratton 6S M
No fuel pump water pump bracket mounts to crankcase where fuel pump went on generator engines. Pump driven from the aft end of the crank. Pump and pulley exactly the same as generator engines. Marine mount which isn't on the engine now is 10 ga plate turned up on both sides similar to what Wisconsin did on thier ABM engines. Mount and water pump not installed so I could run it after assembly. Double mufflers for obvious reasons. Note intake manifold extension so flame trap misses front cover. Also extended throttle shaft.
 |
jb_castagnos
Senior Member
Username: jb_castagnos
Post Number: 831
Registered: 07-2002
| | Posted on Saturday, September 28, 2013 - 10:20 pm: |
|
Nice little motor Ernie, what year? |
ernie
Senior Member
Username: ernie
Post Number: 1731
Registered: 01-2002
| | Posted on Sunday, September 29, 2013 - 06:35 am: |
|
40's 50's I guess |
|
|
|
|
