| Author |
Message |

dick
Member
Username: dick
Post Number: 18
Registered: 07-2004
| | Posted on Tuesday, August 20, 2013 - 09:58 am: |
|

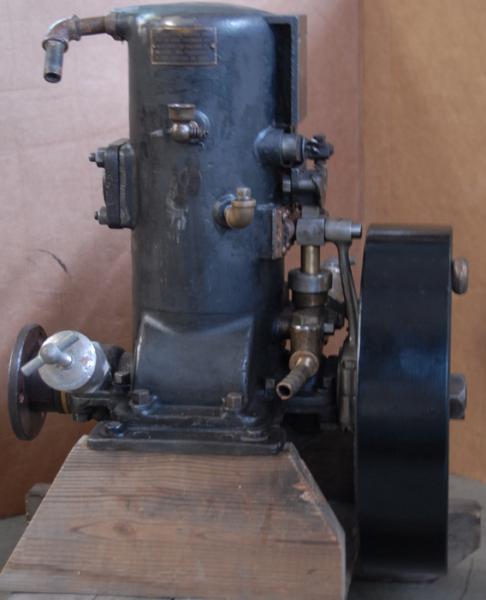

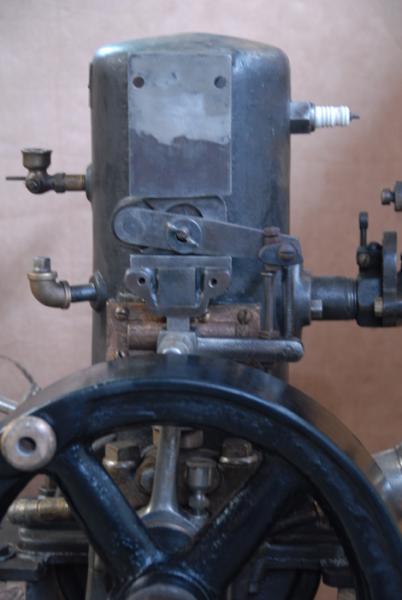

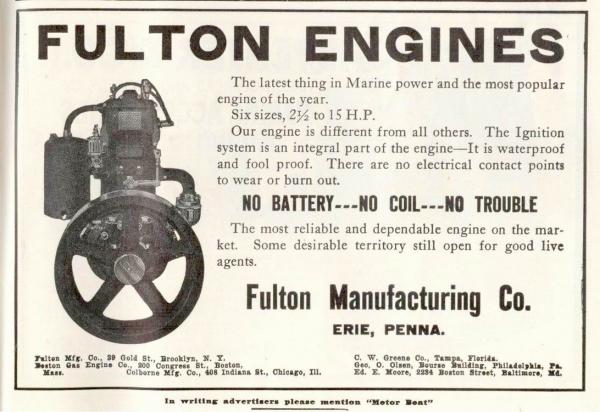

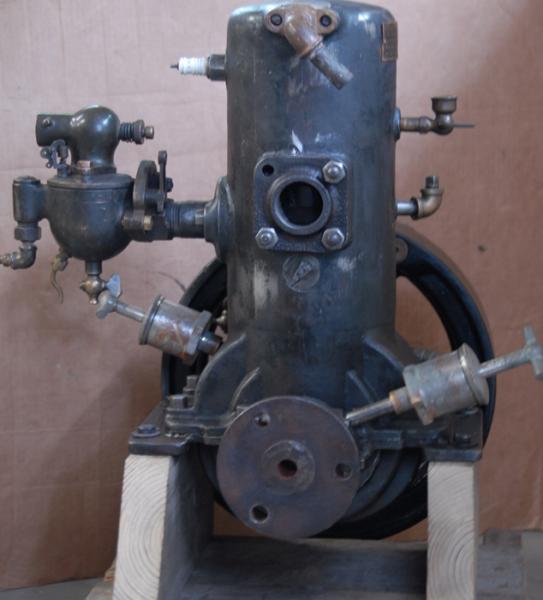

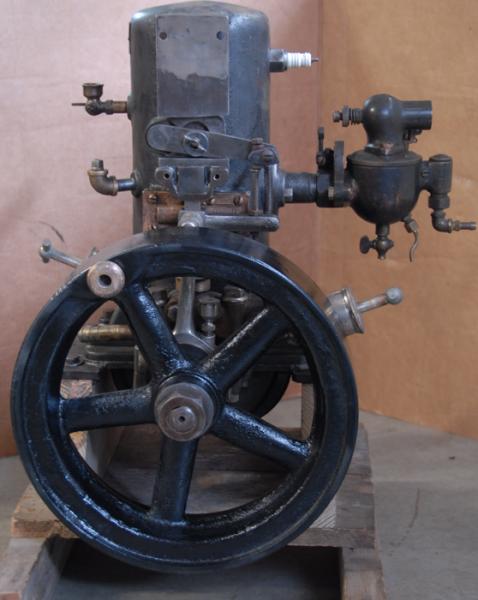

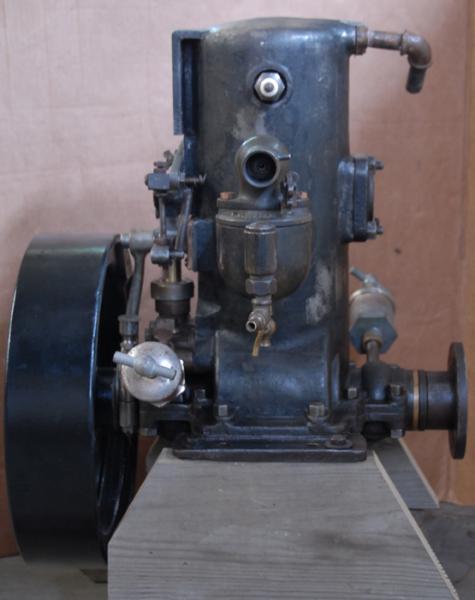

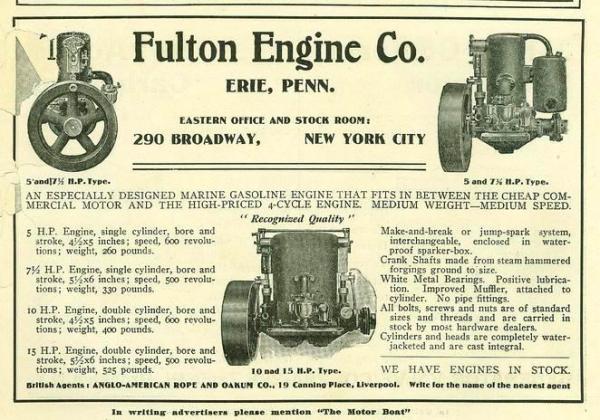

Mr. Durgee has identified this engine as a Fulton, made in Erie, PA sometime around 1910-1911. He thinks that spark plug and igniter-fired engines were made at the same time, the buyer having the option. The flat surface on the cylinder is where a magneto would fit (see advertisement provided by Mr. Durgee) for either kind of ignition. Does anyone have additional information about the magneto? It is hard to make out much detail in the advert. Thanks, Dick
 |
richarddurgee
Senior Member
Username: richarddurgee
Post Number: 3057
Registered: 11-2001
| | Posted on Tuesday, August 20, 2013 - 12:41 pm: |
|
*
Dick
Look into Wico Magnetos, they were used on the Caille marine engines in the same years 1911-12
Wico
* |
richarddurgee
Senior Member
Username: richarddurgee
Post Number: 3058
Registered: 11-2001
| | Posted on Tuesday, August 20, 2013 - 12:57 pm: |
|
*

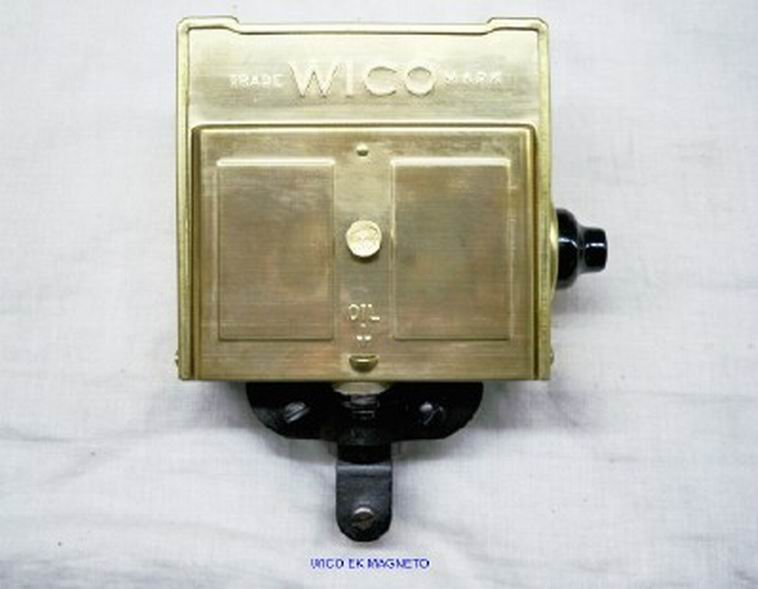

wico EK
http://www.old-engine.com/maghma.htm
* |
dick
Member
Username: dick
Post Number: 19
Registered: 07-2004
| | Posted on Tuesday, August 20, 2013 - 03:49 pm: |
|
Mr. Durgee, Thank you again - I will search in that direction too. |
billschaller
Senior Member
Username: billschaller
Post Number: 575
Registered: 12-2003
| | Posted on Sunday, August 25, 2013 - 09:16 am: |
|
Richard,
It could be a wico, but as far as I know, the wico EK wasn't introduced until the 1922 or 1923 time period. |
rbprice
Senior Member
Username: rbprice
Post Number: 437
Registered: 11-2001
| | Posted on Sunday, August 25, 2013 - 07:55 pm: |
|
Richard - do you have any info indicating that Fulton made any diesel engines in the 1910 - 1914 time frame?
Thanks
Bob |
richarddurgee
Senior Member
Username: richarddurgee
Post Number: 3072
Registered: 11-2001
| | Posted on Sunday, August 25, 2013 - 08:43 pm: |
|
*
There are several references dating 1914 & 1915
I'll scan and post them !

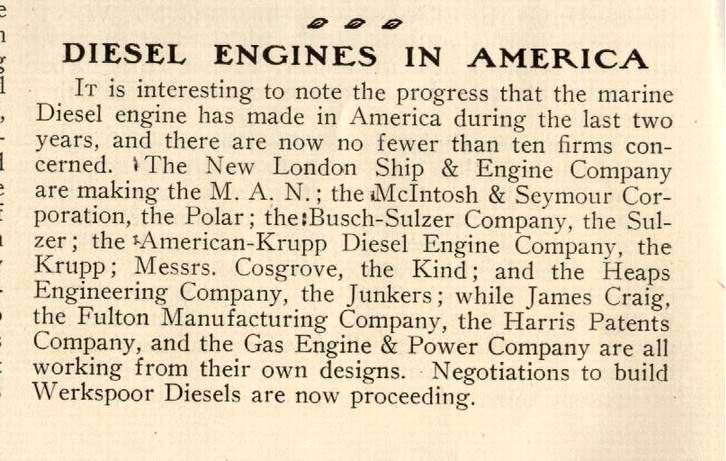

This Is a cool article in may 1914 Rudder, tells overall diesel activity and mentions trademark names !
* |
richarddurgee
Senior Member
Username: richarddurgee
Post Number: 3073
Registered: 11-2001
| | Posted on Sunday, August 25, 2013 - 09:00 pm: |
|
*
This 1915 ad suggests that they were only making stationary Diesels At This time July 1915 ?
Ad mentions Sutter Marine--Sutter Brothers Bought Fulton in 1922.
* |
richarddurgee
Senior Member
Username: richarddurgee
Post Number: 3074
Registered: 11-2001
| | Posted on Sunday, August 25, 2013 - 09:24 pm: |
|
*

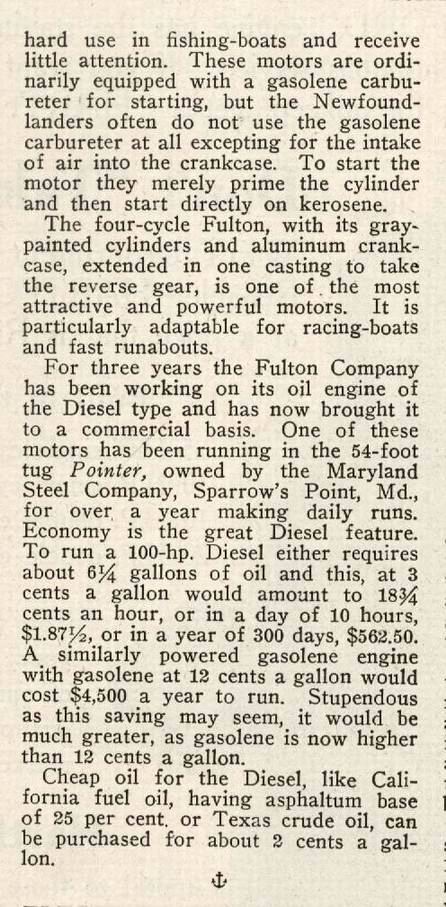

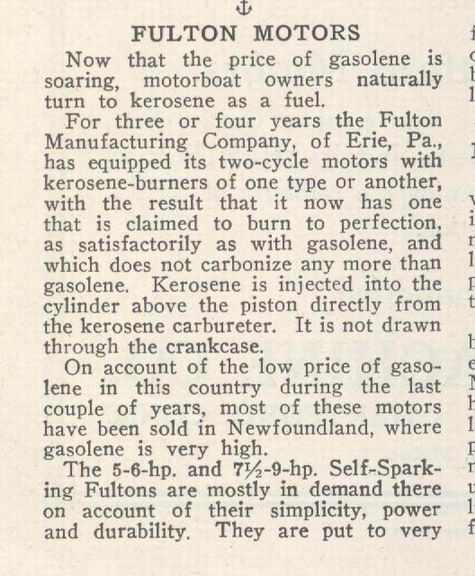

A few monts later-December 1915 article tells a different story ?
* |
richarddurgee
Senior Member
Username: richarddurgee
Post Number: 3075
Registered: 11-2001
| | Posted on Sunday, August 25, 2013 - 09:36 pm: |
|
*
I may have misunderstood the 1915 ad above that Fulton wasn't making marine diesels ? seems they were ?
* |
billschaller
Senior Member
Username: billschaller
Post Number: 576
Registered: 12-2003
| | Posted on Monday, August 26, 2013 - 12:20 pm: |
|
I read it that they were making "marine and stationary" diesel engines, i.e both. |
dick
Member
Username: dick
Post Number: 20
Registered: 07-2004
| | Posted on Tuesday, August 27, 2013 - 10:17 am: |
|
Regarding the magneto, squinting at the advertisement images, looking at Scott N's big Caille video, and a few notes on this OME site, I believe the mag to be a WICO Model 01. I can't tell if there is a difference between the mags on the jump spark and the igniter engines. In some of the images, there is a knife switch on the side of the mag. Perhaps Scott can tell us what is on his Caille after he recovers from the yet again terrific Mystic show. |
ernie
Senior Member
Username: ernie
Post Number: 1713
Registered: 01-2002
| | Posted on Tuesday, August 27, 2013 - 11:35 am: |
|
The Wico EK has 2 bolt holes that are verticle. Not sure on the 01.
Maybe a missing bracket that was between the engine and the mag??? |
rbprice
Senior Member
Username: rbprice
Post Number: 439
Registered: 11-2001
| | Posted on Tuesday, August 27, 2013 - 11:35 am: |
|
Thanks Richard - the Coates folks have the engine from the Pointer and are trying to restore it. I helped them revearse engineer the helical gear for the crankshaft that drives the cam shaft and governor for the three cylinder diesel that was used in the Pointer.
We believe that that engine was originally used by G.E. in Erie to build the first version of the diesel-electric locomotive drive in the 1911-1913 time frame.
The Fulton engine was deemed inadequate and given back to Fulton who sold it to the boat builder that made the Pointer. |
rbprice
Senior Member
Username: rbprice
Post Number: 440
Registered: 11-2001
| | Posted on Tuesday, August 27, 2013 - 11:40 am: |
|
The article about the Pointer says it has been running for "over a year" which jibes with the dates we think apply to the Fulton engine G.E. used in their development work.
Cheers |
robert
Senior Member
Username: robert
Post Number: 595
Registered: 07-2003
| | Posted on Friday, September 06, 2013 - 12:40 am: |
|
Does anyone know the location of the "Heaps Engineering Co." mentioned above? There was such a firm in New Westminster BC. They built the Schaake engine at one time. |
