ernie
Senior Member
Username: ernie
Post Number: 1675
Registered: 01-2002
| | Posted on Monday, May 27, 2013 - 04:51 pm: |
|

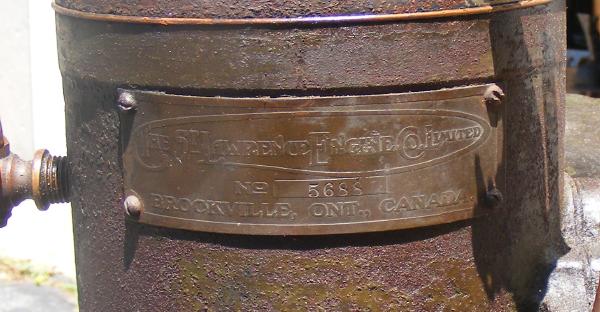

Some of you may remember this engine as it came from Dick Day. Charlie M purchased it after Calvert in 2013.
The engine has had all sorts of solvent/s poured in the cylinders for many years. It was just not going to come unstuck.

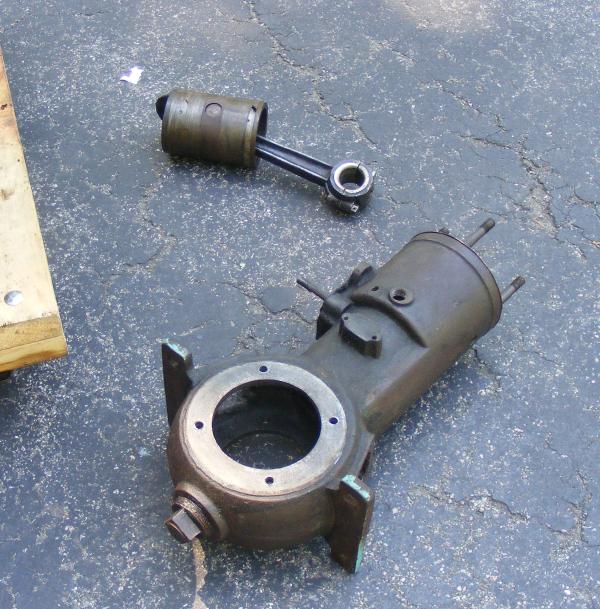

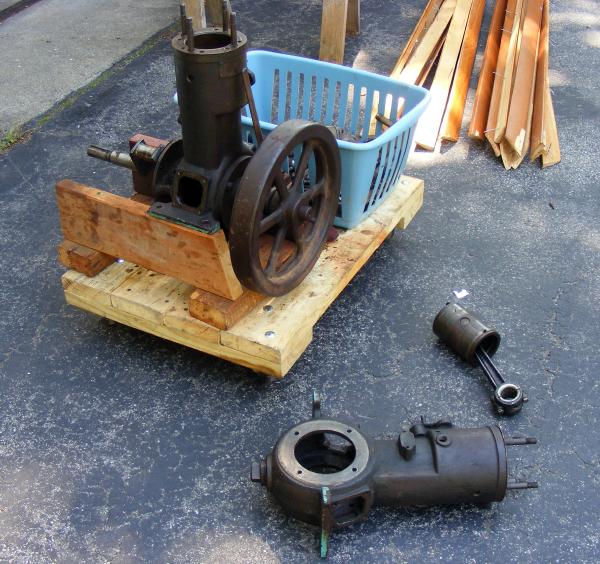

I took the aft cylinder off and thumped on the front piston with a piece of pipe. I thought it moved so I put a bar in the flywheel and it came free almost instantly. I put the aft cylinder in a press and pulling on the press jack handle with one finger it came free. Pushed it to the bottom and then pushed it out by hand. We aren't going to get to restoring this for a while so I put it back together today so the parts dont' get lost.

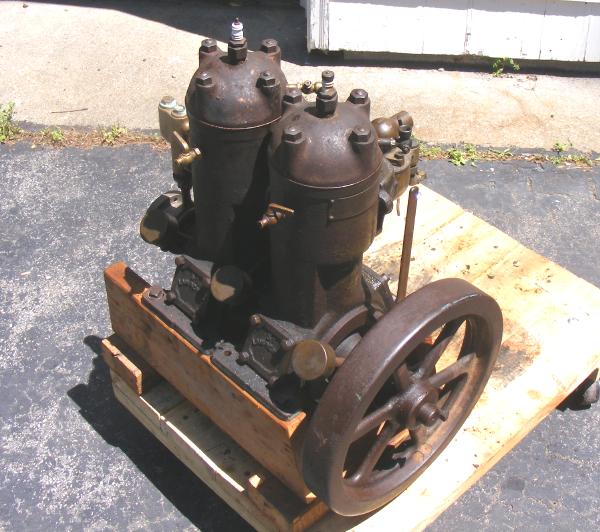

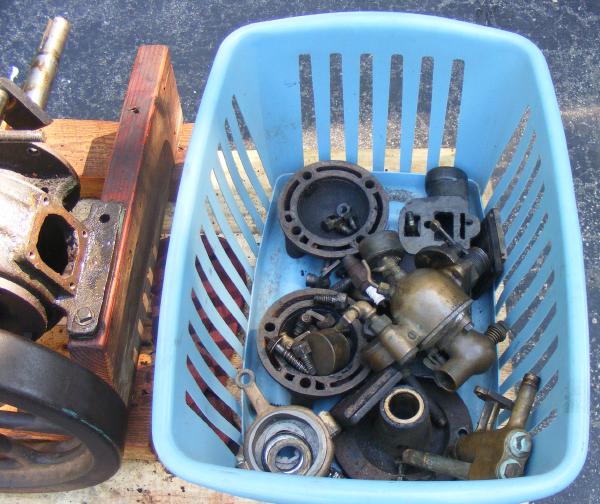

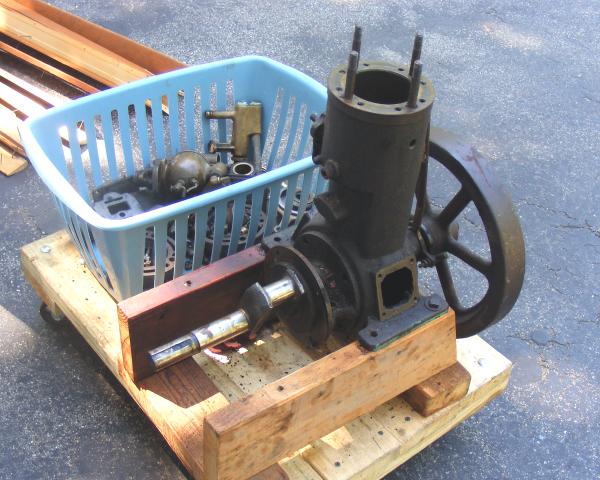

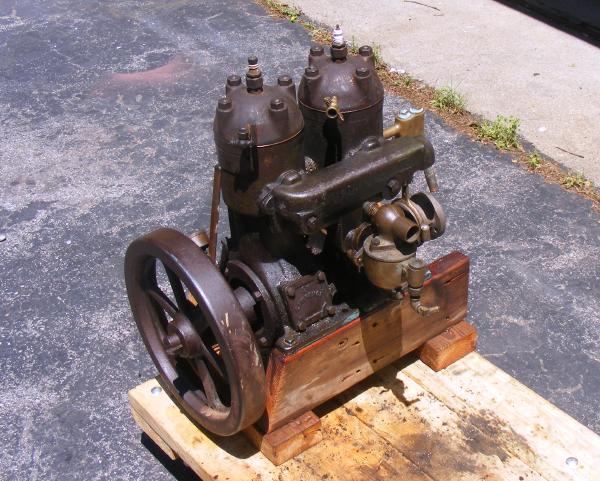

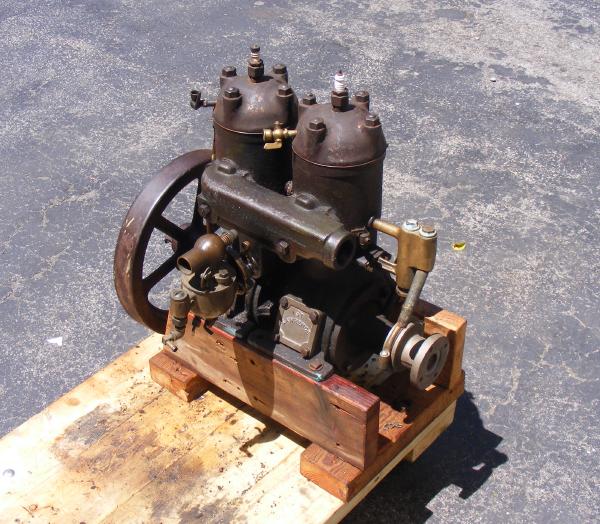

Pics with it apart and then back together. Yea I know one of the priming cups is wrong. Hey we had to see if it had compression in both cylinders. It does.
The last pic is the connection between the cylinders for water. Some sort of corregated rubber lined stainless steel???
There was no rust anywhere in this engine. It seems like what ever it had in it for oil glued the pistons to the cylinders. Everything internally is as clean as the crank journals.
 |
david_doyle
Member
Username: david_doyle
Post Number: 14
Registered: 03-2013
| | Posted on Monday, May 27, 2013 - 05:21 pm: |
|
Wow, good for you! Bet your still grinning. |
miro
Senior Member
Username: miro
Post Number: 700
Registered: 11-2001
| | Posted on Tuesday, May 28, 2013 - 09:54 pm: |
|
Doesn't look as if the engine was run all that hard when it was working - piston looks pretty clean.
miro |
jb_castagnos
Senior Member
Username: jb_castagnos
Post Number: 803
Registered: 07-2002
| | Posted on Wednesday, May 29, 2013 - 01:36 pm: |
|
Is that cast iron pistons? It has the later style one piece manifold. |
ernie
Senior Member
Username: ernie
Post Number: 1676
Registered: 01-2002
| | Posted on Wednesday, May 29, 2013 - 03:14 pm: |
|
Pistons are cast iron
Restoration will be just clean and paint. Mechanically it looks perfect.
Does anyone have any idea what the original connector for water between the cylinders was? |
bcm
Advanced Member
Username: bcm
Post Number: 48
Registered: 11-2009
| | Posted on Thursday, May 30, 2013 - 09:01 am: |
|
Ernie,
I use a very heavy wall hose with two narrow width stainless hose clamps. Hose is 5/8 ID x 1"+ OD. This is available as A2 fuel hose, thus must be high quality if fuel rated.
Barry
 |
bruce_g
Member
Username: bruce_g
Post Number: 7
Registered: 12-2009
| | Posted on Thursday, May 30, 2013 - 12:41 pm: |
|
I don't know what the original was but I use automotive heater hose with good success |
