david_woodworth
New member
Username: david_woodworth
Post Number: 2
Registered: 05-2012
| | Posted on Tuesday, October 30, 2012 - 10:54 pm: |
|
I think i have a 1910 Gray marine 5hp its all apart and i need someone i can call or get a copy of instructions to fix it. It has an oiler that is run off the crank shaft in back of the engine. I live in Calif. 661 513 0524 Thanks for your help. |
richarddurgee
Senior Member
Username: richarddurgee
Post Number: 2926
Registered: 11-2001
| | Posted on Wednesday, October 31, 2012 - 05:36 am: |
|
*
Gray engine serial number S1496 denotes a model S(with merchanical oiler) mfgr date 1911.

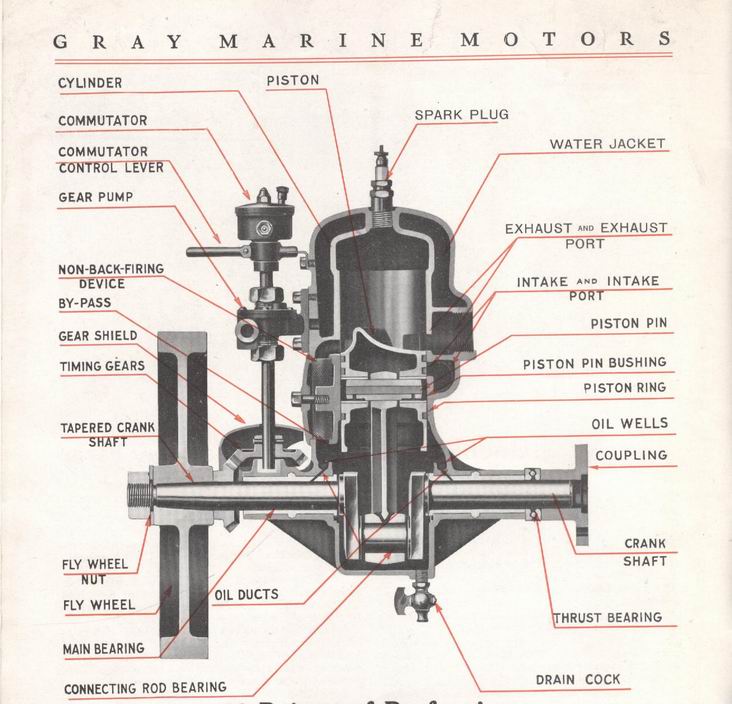

This illustration is of an R model same as Your model S but with out the mechanical oiler !

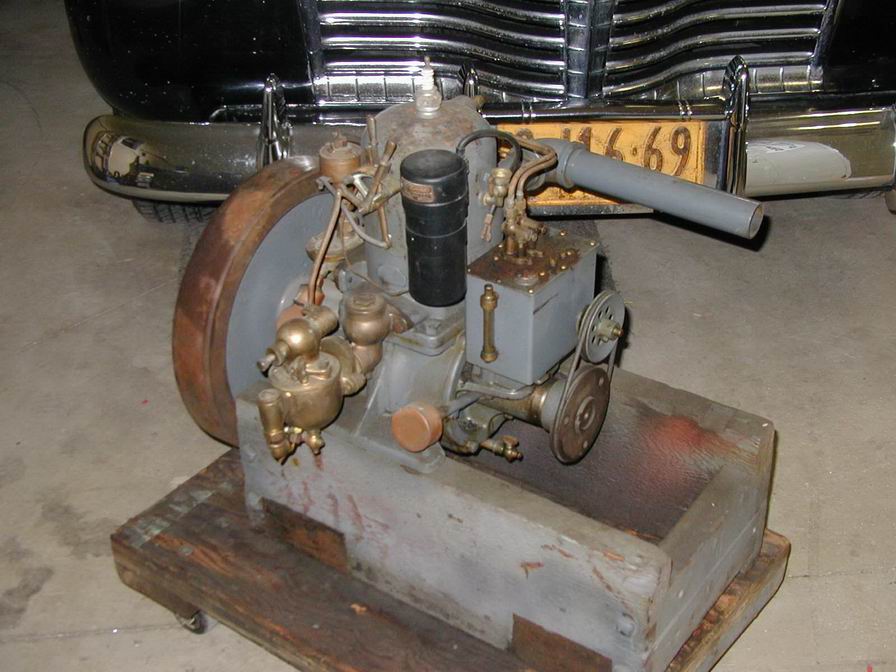

This is a model S as it came from the factory.

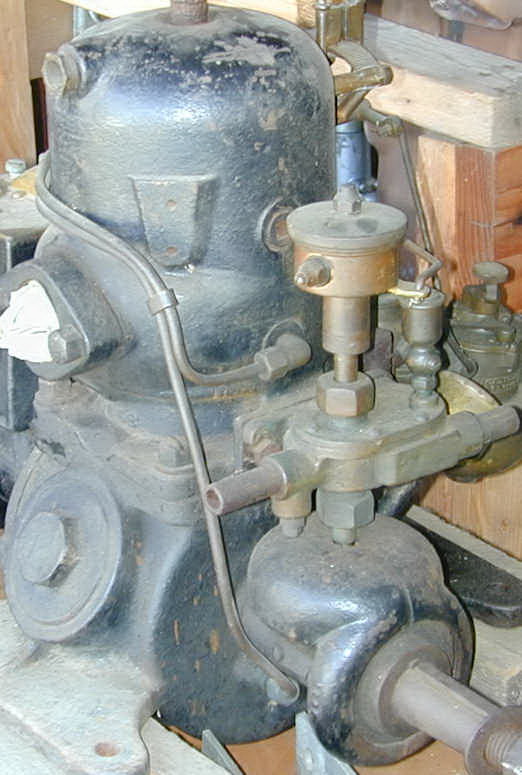

This photo of the front of a model S with the flywheel off-shows oil lines and fittings.
* |
ernie
Senior Member
Username: ernie
Post Number: 1582
Registered: 01-2002
| | Posted on Wednesday, October 31, 2012 - 07:20 am: |
|
oops...
The cutaway view at the top is a mid production "U" with flywheel nut instead of a gib key and gear water pump on the front instead of a piston pump on the back.
This is the same model that is in my boat.
Hope this helps
Ernie |
richarddurgee
Senior Member
Username: richarddurgee
Post Number: 2928
Registered: 11-2001
| | Posted on Wednesday, October 31, 2012 - 09:36 am: |
|
*

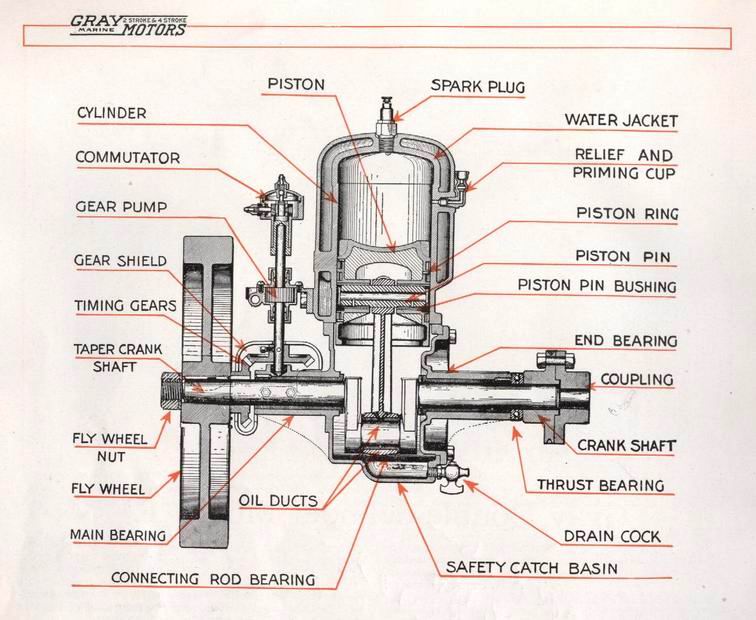

This is the Gray Model R that Should have been
posted in above post, its a 1913 but closest illustration that I have !
Thanks Ernie
* |
