| Author |
Message |

jb_castagnos
Senior Member
Username: jb_castagnos
Post Number: 677
Registered: 07-2002
| | Posted on Monday, April 16, 2012 - 10:12 pm: |
|
I got a call today, someone is donating an 8hp Roberts 4 cycle to our club. It's a single cylinder, from the original owners family. It will be several weeks before I get to see it, any idea what I might be going after? |
billschaller
Senior Member
Username: billschaller
Post Number: 515
Registered: 12-2003
| | Posted on Monday, April 16, 2012 - 10:30 pm: |
|
could be this. 1920
 |
jb_castagnos
Senior Member
Username: jb_castagnos
Post Number: 678
Registered: 07-2002
| | Posted on Tuesday, April 17, 2012 - 08:40 am: |
|
Thanks Bill, this is supposed to be a one cylinder 8hp, don't know if it's a large engine or a smaller high speed. |
richarddurgee
Senior Member
Username: richarddurgee
Post Number: 2799
Registered: 11-2001
| | Posted on Tuesday, April 17, 2012 - 09:40 am: |
|
*
J.B.
Recently I had been looking into Roberts 4 cycle engs and this is what I have found so far !
I agree with Bill's posting above that Roberts 4 cycle 8 hp was a small twin The model was designated as "H".

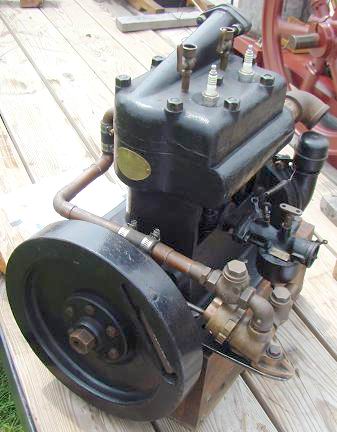

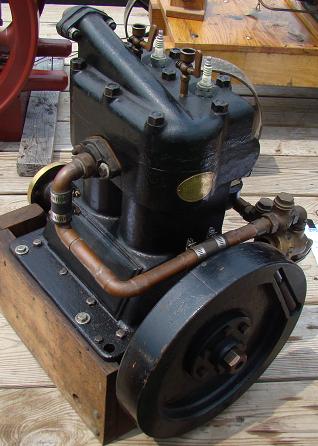

Bruce G posted his one of a kind early model H
here awhile back, it uses Ford model T pistons, two part valves /tappets etc and the head design looks like the very early T engines with the down slope water intake, the water pump bracket and water inlet into side of block looks early and at this point I believe it to be Pre WWI ??

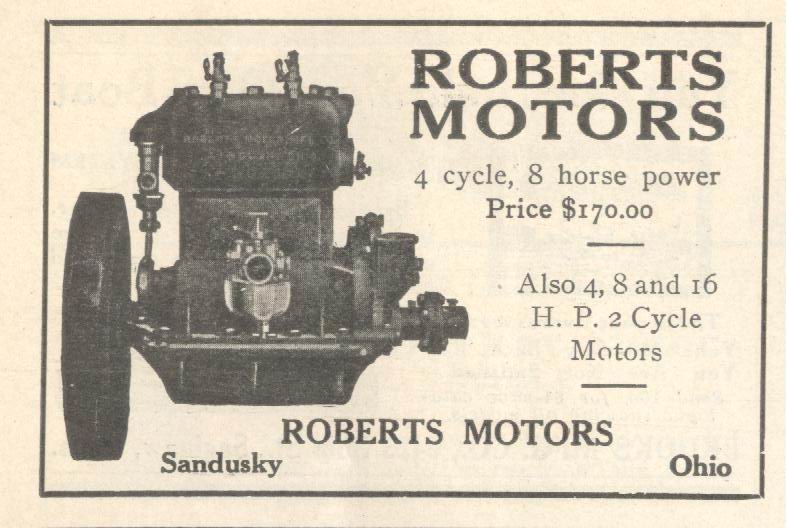

Roberts first ads right after the war in 1919
shows this Model H 8 hp engine but it has gone through several changes, head redesigned to support water/pumping directly into it !
This engine was advertised 1919 to 1921.

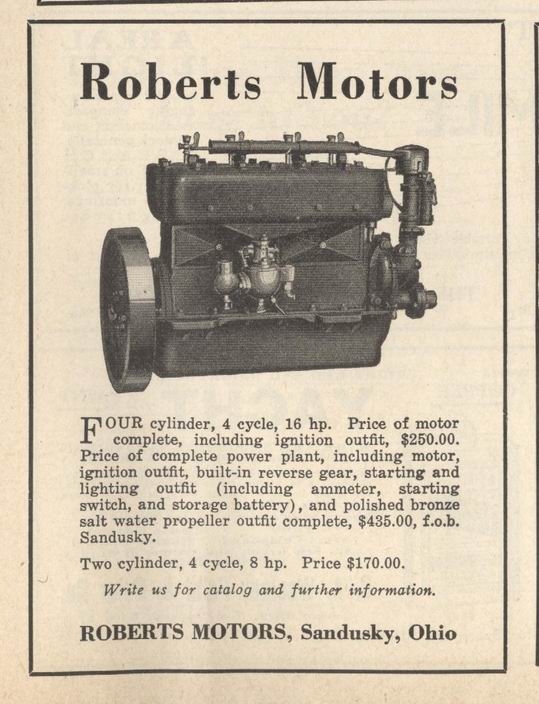

1922 brings a new 4 cycle design on board Model "J". these engines were advertised through 1925-6. this ad is a 4 cylinder but it references the twin 8 Hp.
Hope its a single cylindered engine we then have another unknown engine model to look into !!
* |
billschaller
Senior Member
Username: billschaller
Post Number: 517
Registered: 12-2003
| | Posted on Tuesday, April 17, 2012 - 01:54 pm: |
|
If it's a 2 cycle, this one from 1917 would be nice.
 |
rg171352
New member
Username: rg171352
Post Number: 2
Registered: 05-2008
| | Posted on Thursday, September 26, 2013 - 10:49 am: |
|
Sorry to drag up an old thread, but I thought it would be good to place this with other Roberts two cylinder information. I found this motor, it looks similar to the ones pictured above. Does anyone know what it is? It appears to be a modified version of the above motor. I can't seem to get my photo to upload it but I can email it to anyone.
Thanks for your help. |
richarddurgee
Senior Member
Username: richarddurgee
Post Number: 3091
Registered: 11-2001
| | Posted on Thursday, September 26, 2013 - 01:48 pm: |
|
*
Email photos to me, I will post them here
and see what info is available !
Click on my name at left for email address
* |
rg171352
New member
Username: rg171352
Post Number: 3
Registered: 05-2008
| | Posted on Thursday, September 26, 2013 - 02:39 pm: |
|
Thank you very much for your offer, I just emailed you the picture I took of it. |
richarddurgee
Senior Member
Username: richarddurgee
Post Number: 3092
Registered: 11-2001
| | Posted on Thursday, September 26, 2013 - 02:55 pm: |
|
*

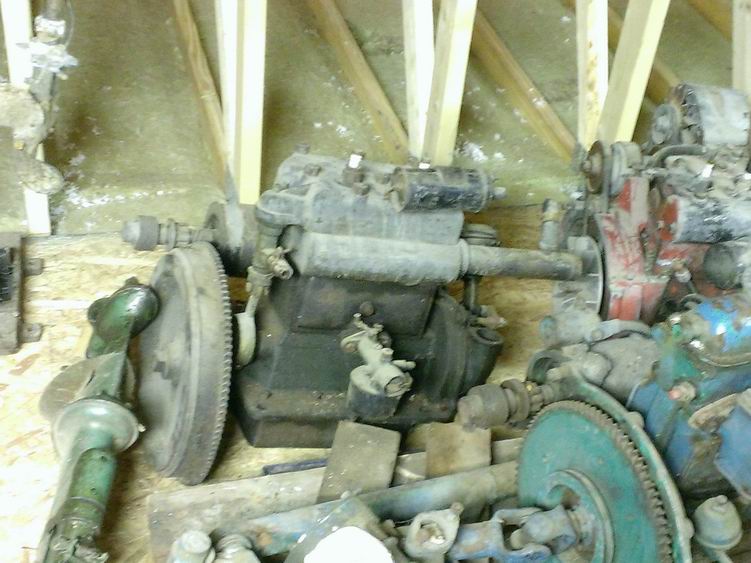

R.G's Photo
* |
rg171352
Member
Username: rg171352
Post Number: 4
Registered: 05-2008
| | Posted on Thursday, September 26, 2013 - 03:01 pm: |
|
Thank you very much |
rg171352
Member
Username: rg171352
Post Number: 5
Registered: 05-2008
| | Posted on Thursday, September 26, 2013 - 03:51 pm: |
|
It seems to look like the Model H pictured in the ad you posted last year with the differences being the absence of primers and the presence of a coil and an electric starter. Were these good engines? |
rg171352
Member
Username: rg171352
Post Number: 18
Registered: 05-2008
| | Posted on Wednesday, September 24, 2014 - 03:26 pm: |
|
What sort of transmission would be used with an engine like this? |
