| Author |
Message |

billschaller
Senior Member
Username: billschaller
Post Number: 371
Registered: 12-2003
| | Posted on Friday, December 10, 2010 - 09:48 pm: |
|
1907 Seal motor
 |
gregoryan
Senior Member
Username: gregoryan
Post Number: 71
Registered: 09-2004
| | Posted on Friday, December 10, 2010 - 10:18 pm: |
|
OMG! what planet is that from? I recognise a flywheel! Imagine what the boat might look like!? |
richarddurgee
Senior Member
Username: richarddurgee
Post Number: 2489
Registered: 11-2001
| | Posted on Saturday, December 11, 2010 - 11:08 pm: |
|
*
Very cool engine !
The single version 1907, I don't keep info on european engs but what I have read in the past these were well accepted, good running and easy to work on !
* |
russell
Advanced Member
Username: russell
Post Number: 42
Registered: 08-2003
| | Posted on Saturday, December 11, 2010 - 11:45 pm: |
|
I'd very much like to see a picture of a plan view. Is there a piston and conrod in there somewhere? |
billschaller
Senior Member
Username: billschaller
Post Number: 373
Registered: 12-2003
| | Posted on Sunday, December 12, 2010 - 09:47 am: |
|

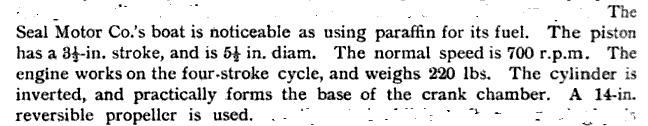

I did find a reference to the layout.
1904
 |
paulgray
Senior Member
Username: paulgray
Post Number: 82
Registered: 05-2003
| | Posted on Sunday, December 12, 2010 - 08:20 pm: |
|
Look like a very over-square cylinder design... |
jb_castagnos
Senior Member
Username: jb_castagnos
Post Number: 563
Registered: 07-2002
| | Posted on Monday, December 13, 2010 - 06:40 am: |
|
The over square was probably to reduce the overall height of the engine. The lower shaft on the Dirigo engine above was an advantage, why would you want to invert and engine and make the shaft higher? I think the answer is because it burns paraffin, kerosene to us. We've all seen the accumulation of gas and oil in the base on these old engines, paraffin doesn't vaporize like gasolene and would soon have the crankcase full. Inverting the engine made it self draining, Detroit got by this with the Middleditch injection system, injecting the kero right into the cylinder port instead of passing it through the crankcase. Seems to me they could have ran the transfer port inlet to the bottom of the crankcase to accomplish this instead of inverting the engine. |
