| Author |
Message |

bcm
Member
Username: bcm
Post Number: 10
Registered: 11-2009
| | Posted on Monday, November 15, 2010 - 07:59 pm: |
|
 |
johnoxley
Member
Username: johnoxley
Post Number: 12
Registered: 04-2010
| | Posted on Monday, November 15, 2010 - 11:03 pm: |
|

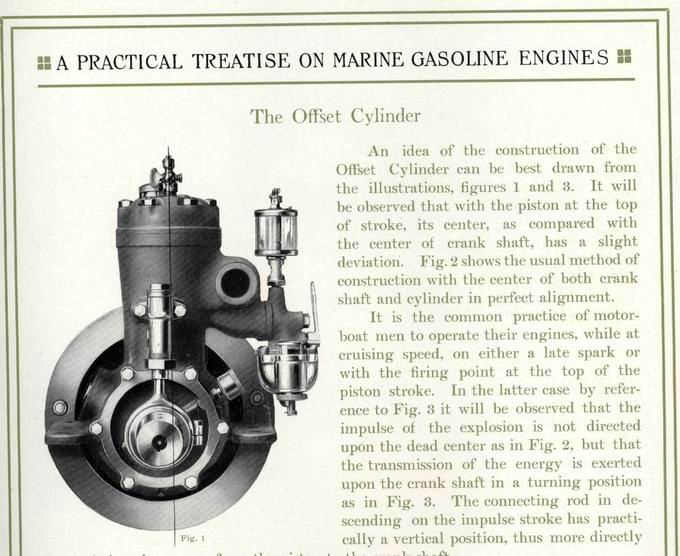

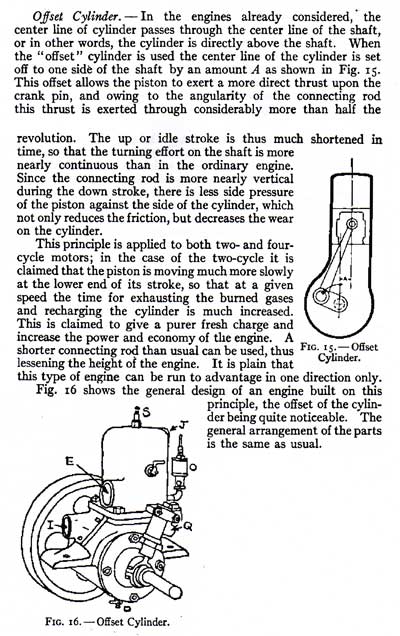

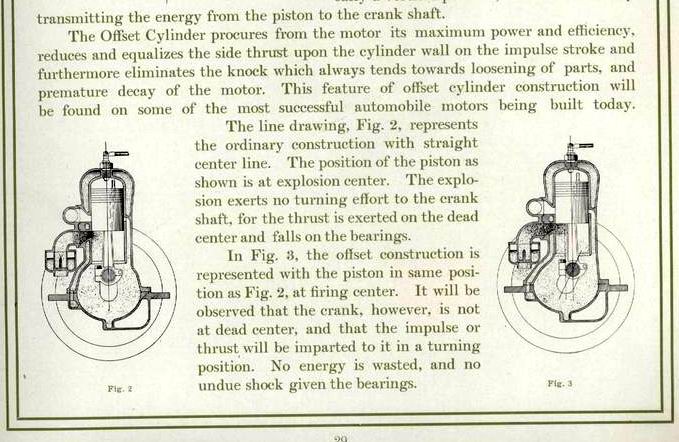

Looks like a Desaxe engine
See http://en.wikipedia.org/wiki/index.html?curid=24608799
Changes thrust on piston sidewall and alters durations of strokes. |
larry_from_maryland
Senior Member
Username: larry_from_maryland
Post Number: 439
Registered: 07-2003
| | Posted on Tuesday, November 16, 2010 - 07:38 am: |
|
The old 2 cylinder Deere engines were offset like that only the pistons were horizontial. |
johnny
Senior Member
Username: johnny
Post Number: 366
Registered: 03-2006
| | Posted on Tuesday, November 16, 2010 - 08:08 am: |
|
Detroit Engine Works sold a 8hp 4 cycle horizontal stationary desaxe engine. |
richarddurgee
Senior Member
Username: richarddurgee
Post Number: 2479
Registered: 11-2001
| | Posted on Tuesday, November 16, 2010 - 08:39 am: |
|
*
This little engine was one of the more obvious of the offset engines, in other 1907 ads the company claimed 20 to 40 percent less cylinder friction ? I will look but I believe Ferro engines were offset.
In the early 1960's Chrysler Corp had a racing division and would recommend tips to get better performance from their V/8s, on drag strip use they suggested reversing the pistons on the rods, they were offset to quiet the engines but resulted in friction ? Lots of piston slap but they did seem to run quicker.
* |
richarddurgee
Senior Member
Username: richarddurgee
Post Number: 2480
Registered: 11-2001
| | Posted on Tuesday, November 16, 2010 - 09:00 am: |
|
*
1909
Ferro Machine & Foundry Company
* |
ernie
Senior Member
Username: ernie
Post Number: 1291
Registered: 01-2002
| | Posted on Tuesday, November 16, 2010 - 11:57 am: |
|
The automotive industry still does this. However it us usually done be offsetting the wrist pin in the piston. Not by moving the actual cylinder bore off to one side |
rbprice
Senior Member
Username: rbprice
Post Number: 344
Registered: 11-2001
| | Posted on Saturday, November 20, 2010 - 08:20 am: |
|
Not only did Ferro do that on their smaller and earlier engines, but my 1920 four cylinder, four cycle is also offset. Approx. .63 inch. |
