| Author |
Message |

billschaller
Senior Member
Username: billschaller
Post Number: 354
Registered: 12-2003
| | Posted on Friday, November 05, 2010 - 02:51 pm: |
|
Take a guess, it's "Special".
 |
miro
Senior Member
Username: miro
Post Number: 517
Registered: 11-2001
| | Posted on Friday, November 05, 2010 - 02:54 pm: |
|
Is this the famous and seldom seen "Basket Case" ? |
billschaller
Senior Member
Username: billschaller
Post Number: 355
Registered: 12-2003
| | Posted on Friday, November 05, 2010 - 04:04 pm: |
|
It's never had salt water in it. |
ernie
Senior Member
Username: ernie
Post Number: 1284
Registered: 01-2002
| | Posted on Friday, November 05, 2010 - 05:33 pm: |
|

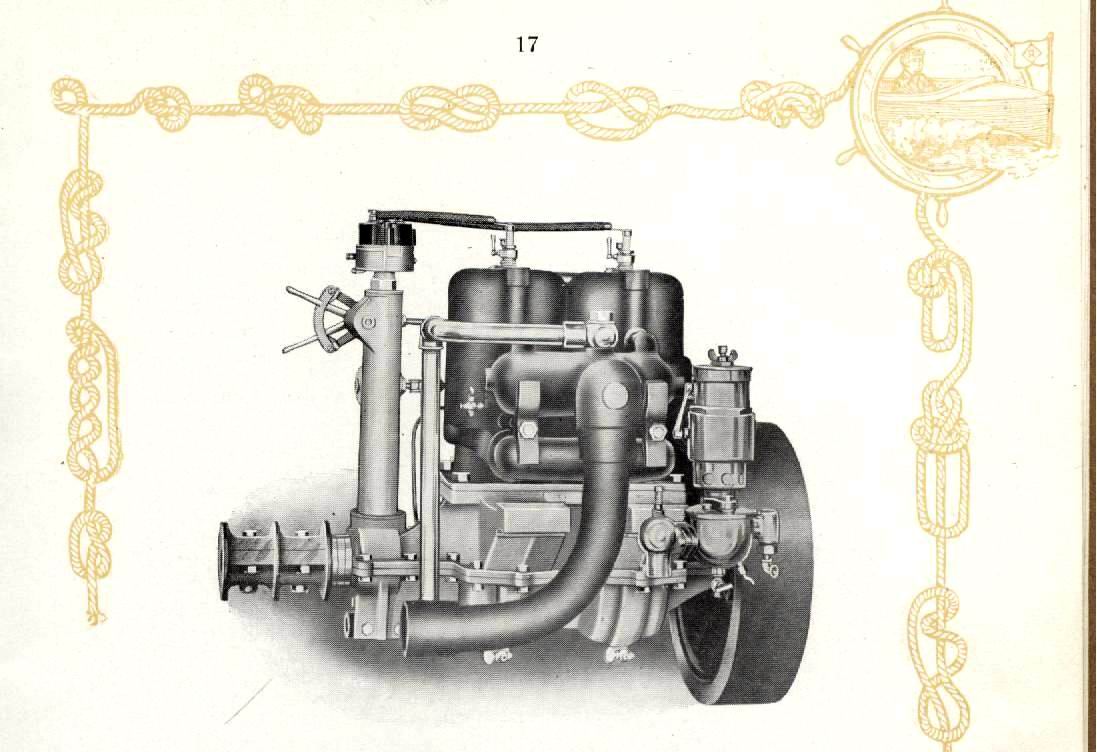

Roberts |
billschaller
Senior Member
Username: billschaller
Post Number: 356
Registered: 12-2003
| | Posted on Friday, November 05, 2010 - 10:19 pm: |
|

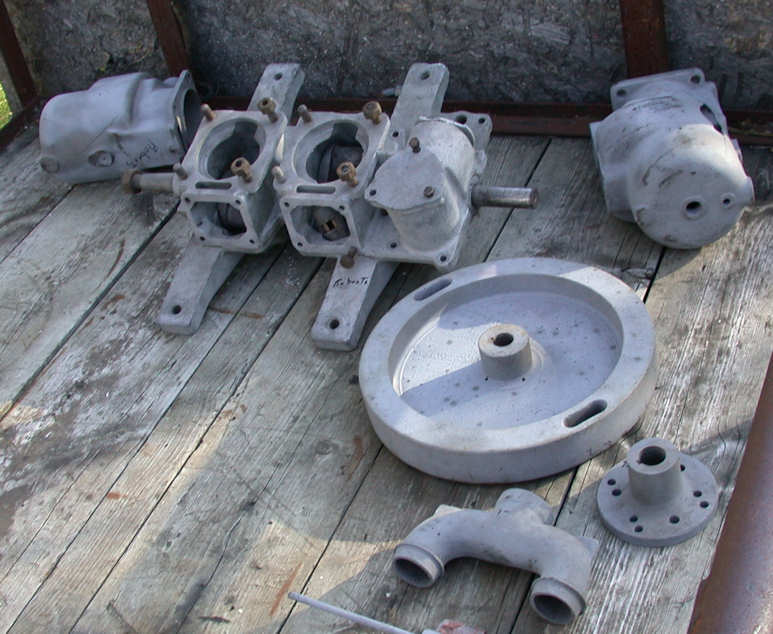

here you go. it's nonmagnetic.
 |
ernie
Senior Member
Username: ernie
Post Number: 1285
Registered: 01-2002
| | Posted on Saturday, November 06, 2010 - 09:58 am: |
|
Bill,
Look real good and I think you will agree it is a Roberts Design. I had one just like it that was tagged Bruce Stewert Imperial which like most of the Mullins engines were designed and possibly made by Roberts. 2 things that seem to be unique to Roberts designs are the tapered intake manifold runners where it mates with the cylinder the other is the slots in the flywheel rim. Oh and Nonmagnetic too...

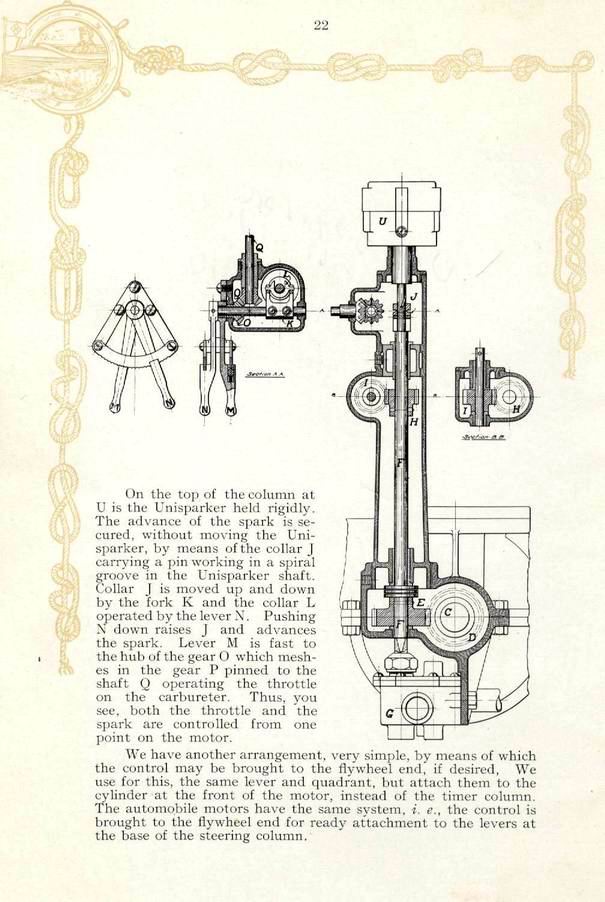

By the way this one needs an automotive style distributor the drive was under that 3 bolt plate. |
billschaller
Senior Member
Username: billschaller
Post Number: 357
Registered: 12-2003
| | Posted on Saturday, November 06, 2010 - 01:42 pm: |
|
I assumed this one had a handle behind the flywheel for marine use, and a distributer for airplane and other uses.
 |
ernie
Senior Member
Username: ernie
Post Number: 1286
Registered: 01-2002
| | Posted on Saturday, November 06, 2010 - 04:26 pm: |
|
Are there gears in the housing? |
billschaller
Senior Member
Username: billschaller
Post Number: 362
Registered: 12-2003
| | Posted on Sunday, November 14, 2010 - 04:40 pm: |
|

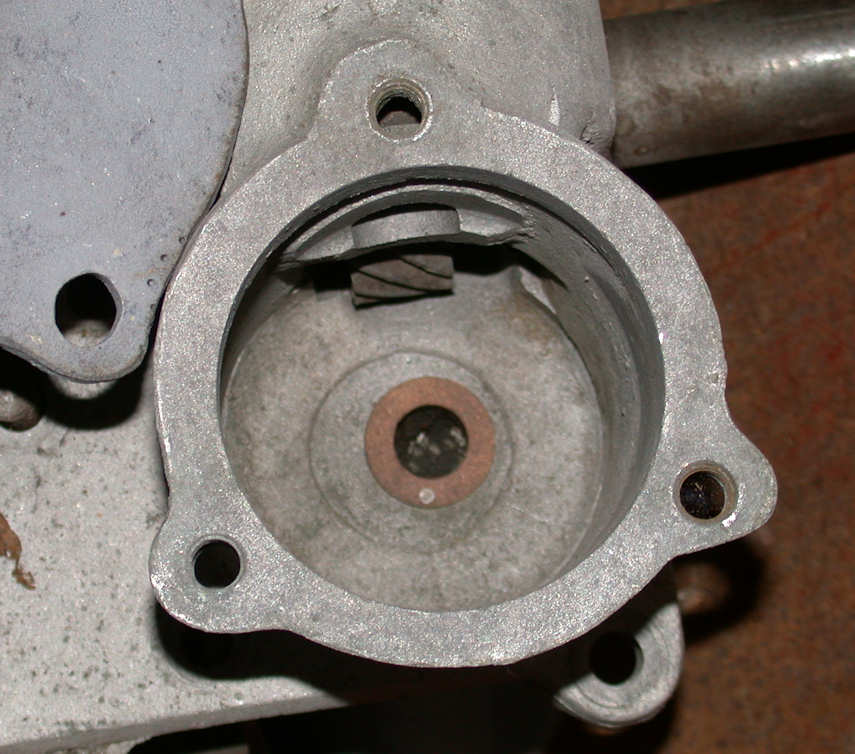

View from above under the three bolt cover
and from the side under the screwed on cover
 |
richarddurgee
Senior Member
Username: richarddurgee
Post Number: 2477
Registered: 11-2001
| | Posted on Sunday, November 14, 2010 - 05:57 pm: |
|
*

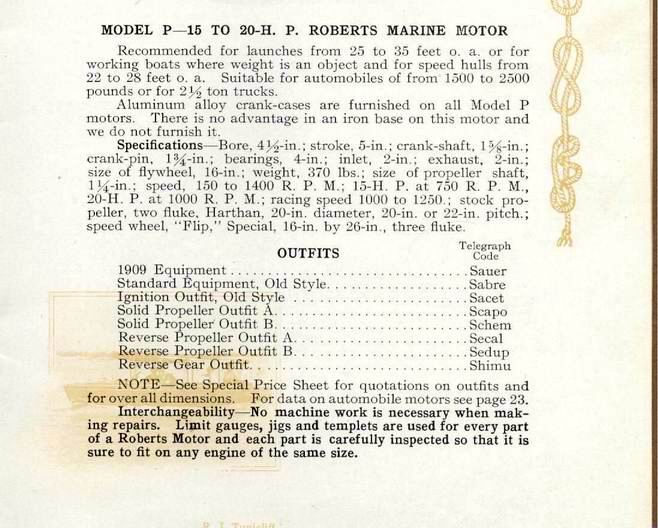

1909-11
* |
iceboater
Member
Username: iceboater
Post Number: 12
Registered: 08-2006
| | Posted on Monday, November 22, 2010 - 07:50 pm: |
|
I have a Roberts that looks very close to the one pictured but mine has a timer. It also has a cool nametag that reads Roberts Motors the motors that never backfire. It is a 2 cyclinder 6 Hp and is also all nonmagnetic except the flywheel,timer,crank and drive flange. It looks like aluminum to me.
    |
