| Author |
Message |

richarddurgee
Senior Member
Username: richarddurgee
Post Number: 2400
Registered: 11-2001
| | Posted on Thursday, May 13, 2010 - 08:15 pm: |
|
*
Palmer Heavy Duty 1910
** |
gregoryan
Senior Member
Username: gregoryan
Post Number: 63
Registered: 09-2004
| | Posted on Thursday, May 13, 2010 - 10:33 pm: |
|
Wow, again. Twin cam-shafts. The valve chambers bolt on the Sides of the cylinders, making for much simpler castings! One can take their valve modules ashore for valve grinding! |
ernie
Senior Member
Username: ernie
Post Number: 1193
Registered: 01-2002
| | Posted on Saturday, May 15, 2010 - 07:05 pm: |
|
I am going to guess it as an F2
Heavy Duty...
Howabout simply BIG

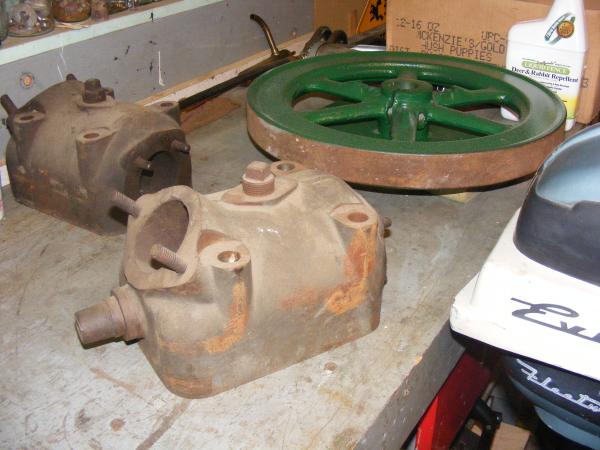

Here are pics of an NOS cylinder and valve chests from a Palmer F series that I am going to make a floor lamp out of. The cylinder is knee high and the flywheel in the pic with the valve chests is from a 1 1/2 hp hit and miss Fairbanks Morse.
 |
robert
Senior Member
Username: robert
Post Number: 370
Registered: 07-2003
| | Posted on Sunday, May 16, 2010 - 01:15 am: |
|
Ernie/Dick, do any F series engines still exist? |
ernie
Senior Member
Username: ernie
Post Number: 1195
Registered: 01-2002
| | Posted on Sunday, May 16, 2010 - 08:21 am: |
|
To my knowledge just 4 NOS cylinders and valve chests |
gregoryan
Senior Member
Username: gregoryan
Post Number: 64
Registered: 09-2004
| | Posted on Sunday, May 16, 2010 - 09:51 pm: |
|
What are all those ports? I imagine the top & bott are water-cooling, then the 2nd one down is the inlet/ or exhaust. So what is the biggest port for?
I imagine this equipment is the same either side of the cylinder? Do you have any other photo angles on these parts Ernie? Thanks- Interesting!
Greg |
ernie
Senior Member
Username: ernie
Post Number: 1196
Registered: 01-2002
| | Posted on Sunday, May 16, 2010 - 10:25 pm: |
|
From top to bottom
Water
Intake or exhaust depending on which side the manifold are arranged
Water
Water with a cover cleanout I guess |
qwilkin
Member
Username: qwilkin
Post Number: 13
Registered: 08-2009
| | Posted on Monday, May 17, 2010 - 02:49 am: |
|
For the aussie engine buffs I am restoring a blaxland twin in a 5 metre boat .I am looking for a brass fuel tap and also rope to insulate the exhaust pipe can anyone help in the supply.
Quinton |
