Continue posting St Lawrence Engines Information Here !
* |
bgoss
Senior Member
Username: bgoss
Post Number: 64
Registered: 12-2007
| | Posted on Wednesday, November 19, 2008 - 08:46 pm: |
|
Is that an order, Richard? OK!

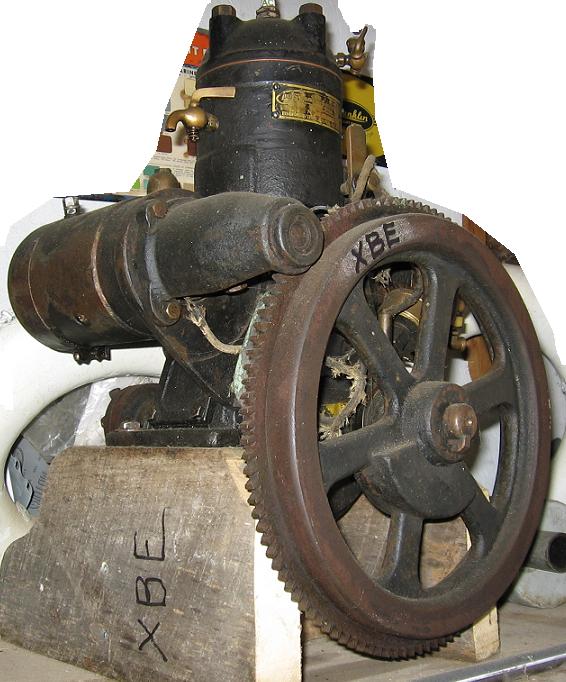

We just got another number off a friend's engine today. S/N is 7517, Model XBE. Looks like brass tag.
 |
richarddurgee
Senior Member
Username: richarddurgee
Post Number: 1918
Registered: 11-2001
| | Posted on Wednesday, November 19, 2008 - 09:11 pm: |
|
*
Blair, I didn't mean it to sound like an order but it must have worked - Got This post ! THANKS
Photo filed, serial # added to list.
Cool old engine and surrounded by old nautical stuff ! The stand looks just like some of mine.
* |
barry
Senior Member
Username: barry
Post Number: 93
Registered: 02-2006
| | Posted on Thursday, November 20, 2008 - 04:12 pm: |
|
Here is an image of a St Lawrence advertisement with what looks like a starter wheel. The advertisement states "WRITE FOR OUR 1913 CATALOGUE".
Also a image of the engine without transmission or BOSCH magneto.
The starter must have an overriding clutch at the crankshaft sprocket, any thoughts?
Barry
 |
bgoss
Senior Member
Username: bgoss
Post Number: 65
Registered: 12-2007
| | Posted on Thursday, November 20, 2008 - 06:56 pm: |
|
I guess that would be the 'lightweight' engine in the photograph? Looks like aluminum base and manifolds. Interesting that the tag is out on the exhaust.
Taking a closer look, it also appears that the ignition is geared off the side of the crankshaft rather than directly above with a bevel gear.
Likely has a ratchet type clutch behind the flywheel.
Has anyone claimed fame to the nice old 3 cylinder that was just sold on ebay? |
bgoss
Senior Member
Username: bgoss
Post Number: 66
Registered: 12-2007
| | Posted on Thursday, November 20, 2008 - 07:13 pm: |
|
JB, you asked awhile back about the drip oiler. I believe that you're right, the cap screws near the top of the block would be the mounting points to hold the oiler. The pipe plugs just above and inside the inspection plates would be removed to accommodate the oil lines into the crank.
 |
keith
Senior Member
Username: keith
Post Number: 217
Registered: 02-2002
| | Posted on Thursday, November 20, 2008 - 10:42 pm: |
|
I believe the three cylinder belongs to Steve Fox. It is a lightweight racing version of a St Lawrence engine. Steve has some great engines and is very knowledgeable Canadian engines. |
freshwater
Advanced Member
Username: freshwater
Post Number: 36
Registered: 11-2007
| | Posted on Sunday, November 23, 2008 - 01:43 pm: |
|

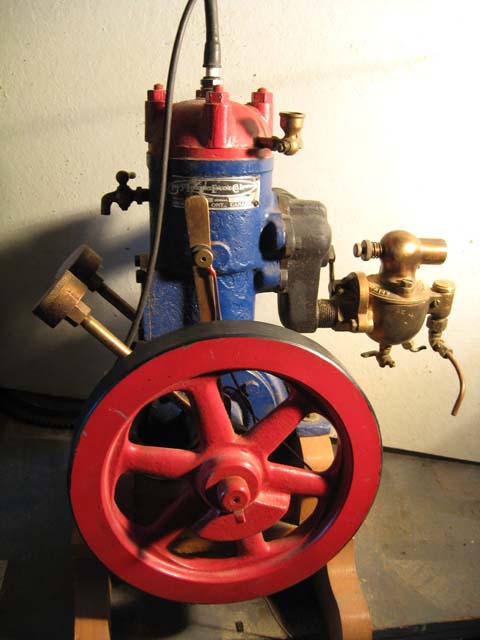

This is my St Lawrence serial 5812, Interesting because it was my wife's grandfathers. Always in fresh water, on Kootenay Lake BC Canada. I restored it, it made it into the house, but still hasn't made the living room. Derek |
richarddurgee
Senior Member
Username: richarddurgee
Post Number: 1924
Registered: 11-2001
| | Posted on Sunday, November 23, 2008 - 02:29 pm: |
|
*
Derek
Thanks for the posting, Photo filed and Serial # entered in our St Lawrence Engines list.
A calculated guess of the year Mfgrd would be late 1920's ?
* |
barry
Senior Member
Username: barry
Post Number: 94
Registered: 02-2006
| | Posted on Sunday, November 23, 2008 - 02:53 pm: |
|
St Lawrence offered a cottage pump in what is thought to be their 1932 and 1934 catalogues. Here is an image of the catalogue page and an outfit ownwd by Ron Jelley. The engine is model XA with cooling water pump removed as a TEE off the main pump supplied engine cooling water.
Engine is serial 5485.
Ron has been trying to determine how fuel contained in the base was elevated to the carburetor as there is no evidence of a fuel pump. Any thoughts ??
Barry
 |
jb_castagnos
Senior Member
Username: jb_castagnos
Post Number: 420
Registered: 07-2002
| | Posted on Sunday, November 23, 2008 - 04:12 pm: |
|
Possibly base pressure through a check valve to pressurize the tank, like the old Evinrude and Johnson double hose systems. |
bgoss
Senior Member
Username: bgoss
Post Number: 68
Registered: 12-2007
| | Posted on Sunday, November 23, 2008 - 07:31 pm: |
|
Barry, looks like they're still showing the marine water pump on the engine, with the inlet coming from the large pump. Slightly overkill. Maybe the company artist who sketched the picture was just having a seniors moment...
Could be pressure in the tank to suppy the fuel. Are there any of these cottage pumps that came out of a boathouse complete, or have any been restored to running? |
barry
Senior Member
Username: barry
Post Number: 95
Registered: 02-2006
| | Posted on Sunday, November 23, 2008 - 07:38 pm: |
|
Here is a link to the stlawrenceengines.ca discussion about the cottage pumps and fuel delivery issue.
Barry
http://www.stlawrenceengines.ca/discuss/viewtopic.php?f=3&t=50&st=0&sk=t&sd=a&st art=10 |
richarddurgee
Senior Member
Username: richarddurgee
Post Number: 1927
Registered: 11-2001
| | Posted on Sunday, November 23, 2008 - 09:24 pm: |
|
*

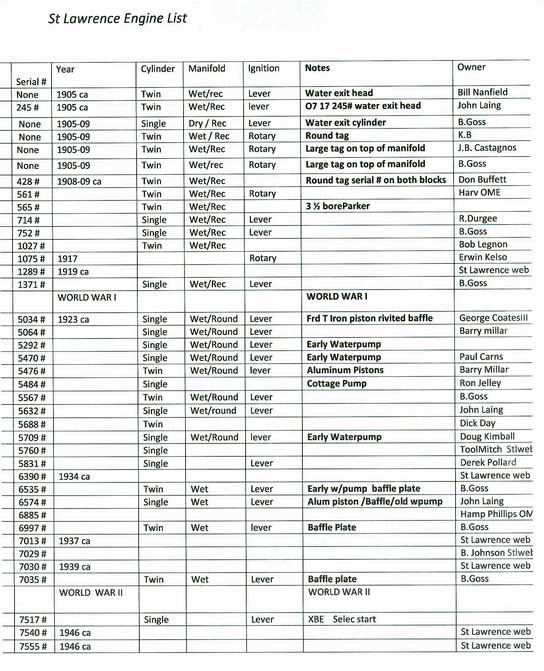

Updated St Lawrence Engines List III
 |
alcleary
Member
Username: alcleary
Post Number: 10
Registered: 12-2003
| | Posted on Sunday, November 23, 2008 - 11:50 pm: |
|

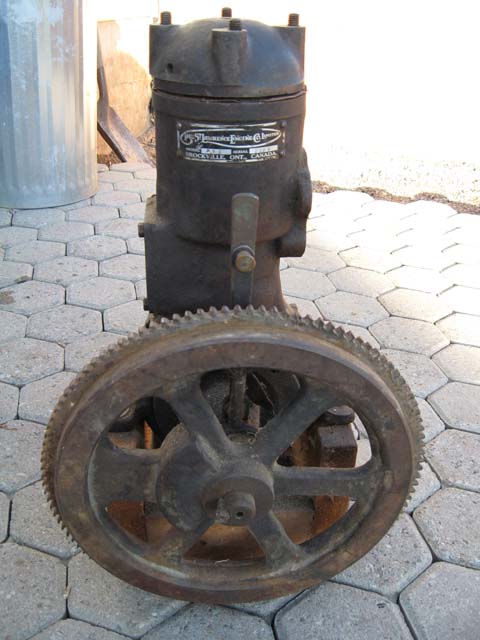

I am the owner of engine no. 5760 that you have listed under my username of “toomitch” from the St. Lawrence web site. This summer I finished rebuilding it and have some information to add to your listing. It is a:
-single cylinder,
-cast iron piston (3 ½” bore, 4” stroke),
-½” NPT spark plug,
-no baffle in the transfer port,
-rectangular brass tag has serial number without model identification,
-single flange water pump with 2 piece eccentric strap (old style),
-a one piece wet manifold in the round style shape,
-and a flywheel that measures 14” diameter and 1 7/8” face width.
The head and the outer rim of the flywheel showed signs of nickel plating. I asked to have the head nickel plated, but the company mistakenly chromed it. Haven’t started this engine yet, collecting the electrical parts now.
Can't get this photo to move, will try later.
_______________________________________
This engine is serial number 5153:
-twin cylinder
-aluminum piston (3 ¼” bore, 3 ½” stroke)
-1/2” NPT spark plug
-no baffle in the transfer port
-rectangular brass tag has serial number without model identification
-single flange water pump with 2 piece eccentric strap (old style)
-a one piece wet manifold
-and a flywheel that measures 14” diameter and 1 ½” face width
This engine also shows remnants of nickel plating on the heads and the outer rim of the flywheel. This engine will be this winters project.
________________________________________
This engine is serial number 7764:
-single cylinder
-aluminum piston (3 ½” bore, 4” stroke)
-18 mm spark plug
-access plate to baffle in the transfer port
-rectangular aluminum tag has serial number and model identification XBE
-water pump with 2 flanges and one piece eccentric strap (new style)
-the manifold is missing but would be a one piece and wet
-and a flywheel with a ring gear that measures 13” diameter and 1 5/8” face width.
______________________________________
This engine is serial number 7961:
-single cylinder
-aluminum piston (3 ¼” bore, 3 ½” stroke)
-18 mm spark plug
-access plate to baffle in transfer port
-rectangular aluminum tag has serial number and model identification XA
-water pump with 2 flanges and one piece eccentric strap (new style)
-a one piece wet manifold in the round style shape
-and a flywheel that measures 12” diameter and 1 ½” face width.
___________________________________
This engine is serial number 7939, and just has the cylinder, crankshaft, and a seized piston:
-single cylinder
-aluminum piston (3 ¼” bore)
-access plate to baffle in transfer port
-rectangular aluminum tag has serial number and model identification XAE
-the water pump would have 2 flanges
-manifold would be wet and one piece.

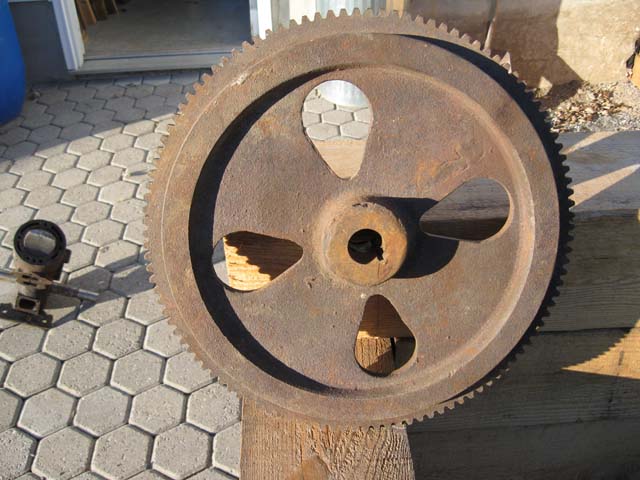

Not installed, but with this engine came a flywheel that looks like the one by Owen Bosma in an earlier post. It has 4 teardrop cut outs, a ring gear, and measures 12 5/8” diameter and 1 3/16” face width. I was told by a senior Dispro member that it is thought that these flywheels were used at the very end of production. Maybe when assembling engines from stock parts supply after 1950 they ran out of flywheels and still had more parts to assemble, and came up with these flywheels to complete the last of the engines. No mention of where they would have come from.
____________________________________
It has been mentioned often that after 1934, St. Lawrence used aluminum pistons. This probably comes from a reprint of the 1934 catalog that many people have and quote from. I recently bought a 1932 catalog, and it says all one and 2 cylinder engines have aluminum pistons and light steel connecting rods, so we can safely move the date back to at least 1932.
St. Lawrence used Ford Model T’s, Model A’s, Fordson tractor, and flat head Ford V8 engines for marine conversion. I don’t know the starting dates for Model T’s & Model A’s, but from these 2 catalogs we find the first use of Fordson engines in 1926 and the first use of Ford V8’s to be 1934. St. Lawrence also started to manufacture their own reverse gears in 1934, using Paragon reverse gears in the 1932 catalog. Glad to see all the work you are doing to help date my favourite engines, thanks,
Al Cleary. |
alcleary
Member
Username: alcleary
Post Number: 11
Registered: 12-2003
| | Posted on Monday, November 24, 2008 - 12:06 am: |
|

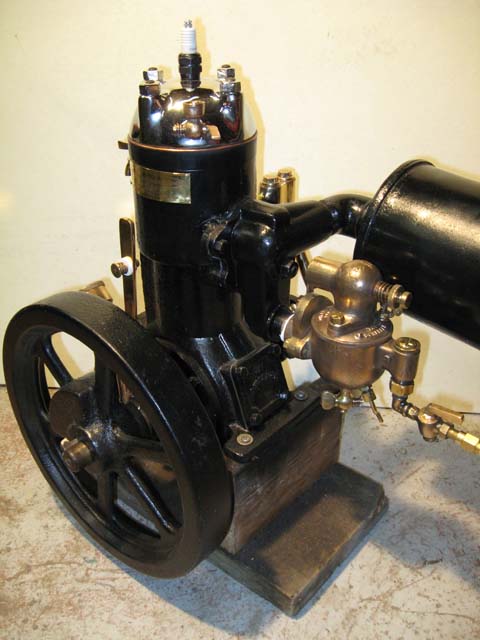

Trying again to post pictures of St. Lawrence engine serial number 5760
 |
richarddurgee
Senior Member
Username: richarddurgee
Post Number: 1931
Registered: 11-2001
| | Posted on Monday, November 24, 2008 - 09:17 am: |
|
*
Al
Thanks for the posting your engines, all photos are filed and all serial numbers added to our St Lawrence Engines list.
Some interesting info here, The 1932 catalog lists aluminum pistons ! your 5153 # engine above would seem to date even further back around mid 1920's and has the aluminum pistons ??
Teardrop flywheel is going to be a continued discussion >
* |
richarddurgee
Senior Member
Username: richarddurgee
Post Number: 1932
Registered: 11-2001
| | Posted on Monday, November 24, 2008 - 09:21 am: |
|
*
These Threads get so large with the photos that some computers take forever to load so I'll open
Early St Lawrence Engines Part IV |
