| Navy Norfolk Standard Engine |
| Author |
Message |

frank_s
New member
Username: frank_s
Post Number: 1
Registered: 07-2008
| | Posted on Wednesday, July 30, 2008 - 07:30 pm: |
|
Hello;
Any info , pix, Dwg's out there for the above engine ?
Thanks Frank |
richarddurgee
Senior Member
Username: richarddurgee
Post Number: 1752
Registered: 11-2001
| | Posted on Wednesday, July 30, 2008 - 08:49 pm: |
|
*

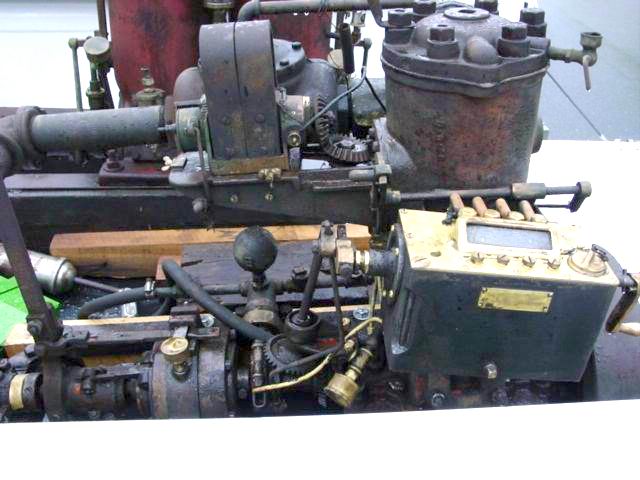

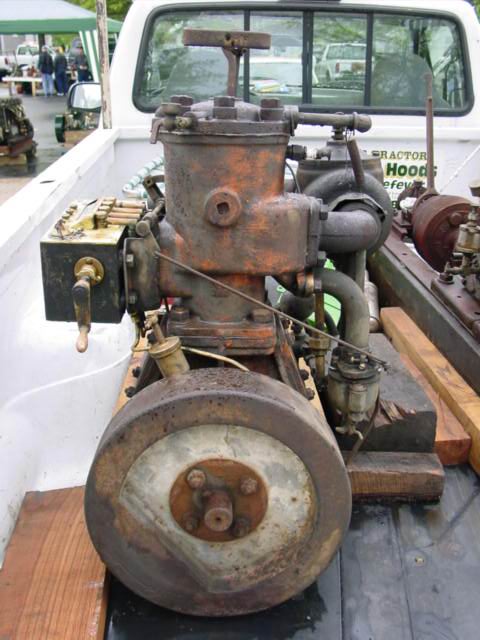

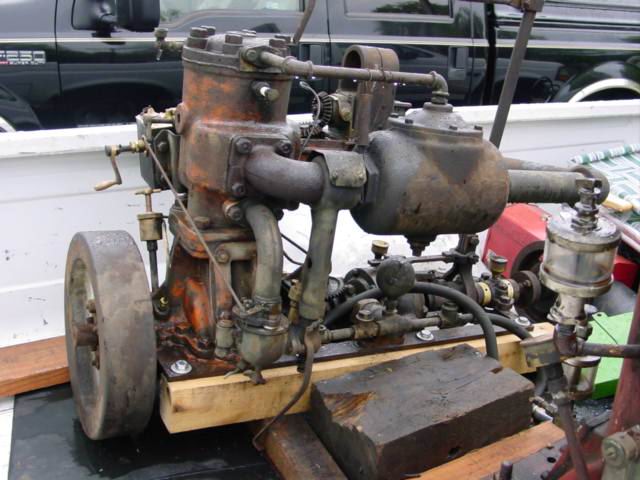

This one caught my eye and camera lens at The 2005 Calvert Marine Engine Show !
* |
frank_s
New member
Username: frank_s
Post Number: 2
Registered: 07-2008
| | Posted on Thursday, July 31, 2008 - 04:24 am: |
|
Hi Richard;
Thanks, this one is a NAVY Std. Eng. I think, a very early, or maybe late Eng. again Tks for the
Pix.
Frank |
frank_s
New member
Username: frank_s
Post Number: 3
Registered: 07-2008
| | Posted on Monday, August 04, 2008 - 06:23 am: |
|
Hi all;
Thanks again Richard for the Pix.
On my quest for any / all info I might find on these engines, it turns out that this series of engines were designed by the US NAVY Bureau of Engineering, built in the Norfolk Navy Yard
{Norfolk Va.}
There were 4 sizes in this series, from 1 to 4 Cyls. and were as follows;
Type "EE", one Cyl. 5 HP
Type "GG", two Cyl. 10 HP
Type "HH", Three Cyl. 15 HP
Type "KK", Four Cyl. 20 HP
The first "EE's" the Cyl. was integral to the lower base, the design was changed to a seperate Cyl. later, as the Pix show.
All parts were interchangeable, except, upper & lower base, crankshaft. Even the flywheels were the same.
I would still like to find further info, Dwgs, Pix, Specs. on these engines if anyone has more.
Thanks Frank |
|
|
|
|
