| Author |
Message |

doug11k
Senior Member
Username: doug11k
Post Number: 54
Registered: 12-2003
| | Posted on Tuesday, July 29, 2008 - 08:11 pm: |
|

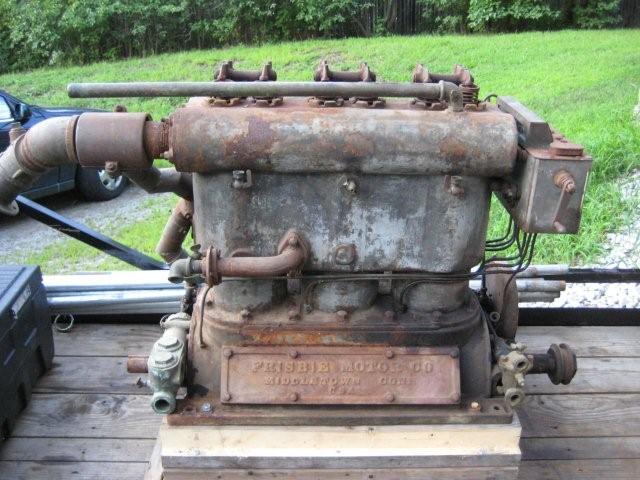

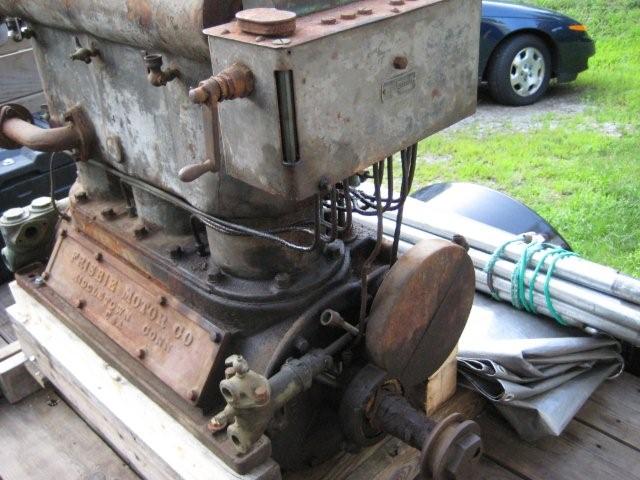

A friend recently acquired a 3 cylinder Frisbie marine engine. Previous owner said it ran on a boat in the Connecicut River and was removed by SteamTown in Vermont(?) in the sixties & replaced with a steam engine. It looks very complete. There is a name tag with serial number but the Manzel mechanical lubricator needs to be removed to read it. He'd like to restore it & is looking for a date, manual and any other information.
 |
richarddurgee
Senior Member
Username: richarddurgee
Post Number: 1750
Registered: 11-2001
| | Posted on Tuesday, July 29, 2008 - 09:14 pm: |
|
*
What a great looking old Marine engine !
Russell A. Frisbie designed valve in head and put on the market in 1903.
Frisbie Ad 1924
* |
jb_castagnos
Senior Member
Username: jb_castagnos
Post Number: 383
Registered: 07-2002
| | Posted on Tuesday, July 29, 2008 - 09:16 pm: |
|
Looks like a good find Doug, appears to be in good shape. |
rholcomb
Member
Username: rholcomb
Post Number: 22
Registered: 10-2004
| | Posted on Wednesday, July 30, 2008 - 12:24 am: |
|
Did you get the starting bar for it????is that an atwater kent system for the distributor???I have a 2 cylinder model of the same design year with tubes along the side for intake and exaust passages.
doug would you take a better picture of the throttle and timing lever on the side for me thanks bob.... |
richardday
Senior Member
Username: richardday
Post Number: 642
Registered: 11-2003
| | Posted on Wednesday, July 30, 2008 - 07:07 am: |
|
Wow!! I have to wonder Who thought up the air intake oven/piping? |
doug11k
Senior Member
Username: doug11k
Post Number: 55
Registered: 12-2003
| | Posted on Wednesday, July 30, 2008 - 07:47 am: |
|
Bob, I'll ask him to take some more photos. Could you post one of the starting bar that I don't think he has? |
doug11k
Senior Member
Username: doug11k
Post Number: 56
Registered: 12-2003
| | Posted on Thursday, July 31, 2008 - 12:12 am: |
|
Bob,

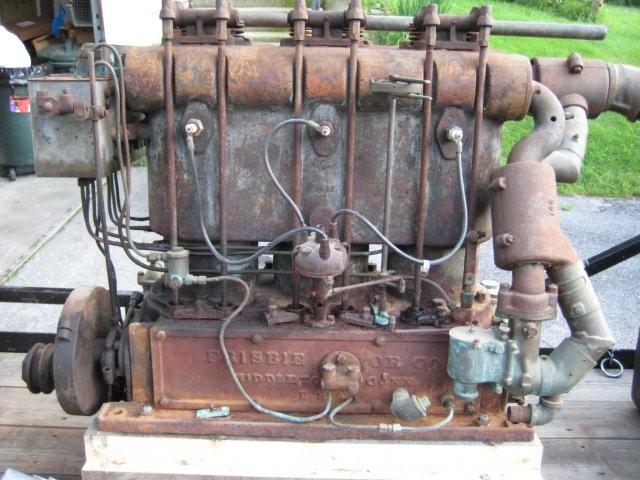

Are these photos any help?
 |
rholcomb
Member
Username: rholcomb
Post Number: 23
Registered: 10-2004
| | Posted on Friday, August 01, 2008 - 01:32 am: |
|
Doug, i will get a picture off to you monday,have not forgot about the frisbie but i am getting ready for our lynden show friday and saturday. what i also need is a shot of the advance retard quadrant that also controls the throttle thanks bob.... |
robert
Senior Member
Username: robert
Post Number: 223
Registered: 07-2003
| | Posted on Sunday, August 24, 2008 - 07:43 pm: |
|
Atwater Kent Type H timer. Easthope Bros. had the agency for Frisbee from around 1912-14 until it was given to Lipsett around 1920-24. This is based on the interview with Peck Easthope in Raincoast Chronicles No5. He comments that the engines were prone to overheating and the "valves were in cages" which he felt was a disadvantage. But then of course he was still sore about loosing the agency perhaps! |
rholcomb
Member
Username: rholcomb
Post Number: 24
Registered: 10-2004
| | Posted on Tuesday, August 26, 2008 - 10:21 pm: |
|
here is a shot of the starting bar i have for the 2 cylinder |
kevin_stone
New member
Username: kevin_stone
Post Number: 1
Registered: 07-2008
| | Posted on Wednesday, August 27, 2008 - 09:11 pm: |
|
Does anyone know Ed Leslie. He posted here back in november 2001 and had just aquired a three cyclinder frisbie and would like to talk with him. Thanks Kevin |
kevin_stone
New member
Username: kevin_stone
Post Number: 2
Registered: 07-2008
| | Posted on Wednesday, August 27, 2008 - 09:27 pm: |
|
Heres some pictures after removing side plate.     |
