| Author |
Message |

richarddurgee
Senior Member
Username: richarddurgee
Post Number: 972
Registered: 11-2001
| | Posted on Sunday, February 12, 2006 - 09:30 am: |
|
"What's the name" of this engine 1922 ?
 |
ernie
Senior Member
Username: ernie
Post Number: 365
Registered: 01-2002
| | Posted on Sunday, February 12, 2006 - 02:51 pm: |
|
I know where there is one in pieces. No beds or reverse gear. |
solarrog
Senior Member
Username: solarrog
Post Number: 114
Registered: 03-2002
| | Posted on Sunday, February 12, 2006 - 02:56 pm: |
|
Newway
Not sure of the spelling
Roger |
richarddurgee
Senior Member
Username: richarddurgee
Post Number: 973
Registered: 11-2001
| | Posted on Sunday, February 12, 2006 - 05:40 pm: |
|
Yup !
 |
solarrog
Senior Member
Username: solarrog
Post Number: 115
Registered: 03-2002
| | Posted on Sunday, February 12, 2006 - 06:00 pm: |
|
They have a very profound look about them, Do you have something alittle more difficult?
I have my IQ turned all the way up to 80
(upper limit)
so test me |
andrew
Moderator
Username: andrew
Post Number: 545
Registered: 11-2001
| | Posted on Sunday, February 12, 2006 - 06:22 pm: |
|
Richard,
There was a quiz in one of the old RUDDER or MOTORBOAT magizines. It showed about twenty different motors and readers had to identify them.
If you could find that quiz you could post it...
I don't recall the year or month off hand. If you are not familiar with it I could take a look in my collection... don't post the year/month here...  |
ernie
Senior Member
Username: ernie
Post Number: 366
Registered: 01-2002
| | Posted on Sunday, February 12, 2006 - 06:29 pm: |
|
Here is another
 |
richarddurgee
Senior Member
Username: richarddurgee
Post Number: 974
Registered: 11-2001
| | Posted on Sunday, February 12, 2006 - 06:30 pm: |
|
Andrew, I never have come across that issue, but I can post some engines !
"What's The Name"
This one is 1910, how about that angle iron mount.
 |
solarrog
Senior Member
Username: solarrog
Post Number: 116
Registered: 03-2002
| | Posted on Sunday, February 12, 2006 - 06:38 pm: |
|
darn this one takes an IQ of 81, I was close |
richarddurgee
Senior Member
Username: richarddurgee
Post Number: 975
Registered: 11-2001
| | Posted on Sunday, February 12, 2006 - 08:11 pm: |
|
O.K First Clue.
16th President of U.S.A. |
solarrog
Senior Member
Username: solarrog
Post Number: 117
Registered: 03-2002
| | Posted on Sunday, February 12, 2006 - 08:34 pm: |
|
Ok the Lincoln bad boy super motor???????? |
jb_castagnos
Senior Member
Username: jb_castagnos
Post Number: 86
Registered: 07-2002
| | Posted on Sunday, February 12, 2006 - 08:39 pm: |
|
Ernie, yours looks like the Detroit, Caille, American family. |
richarddurgee
Senior Member
Username: richarddurgee
Post Number: 976
Registered: 11-2001
| | Posted on Sunday, February 12, 2006 - 09:15 pm: |
|
Second Clue !
I'm sure that many here on this web site like myself, experienced this wonderful old mid west Company not in a boat or a grain binder but with the wind in your hair behind a pair of handlebars ! |
richarddurgee
Senior Member
Username: richarddurgee
Post Number: 977
Registered: 11-2001
| | Posted on Sunday, February 12, 2006 - 09:31 pm: |
|
 |
solarrog
Senior Member
Username: solarrog
Post Number: 118
Registered: 03-2002
| | Posted on Sunday, February 12, 2006 - 09:52 pm: |
|
I just bought one of those scooters yesterday.
I dont think it floats though
Roger |
ernie
Senior Member
Username: ernie
Post Number: 367
Registered: 01-2002
| | Posted on Monday, February 13, 2006 - 08:02 pm: |
|
JB you got it.
Do you remember the one that BJ had at Calvert?
Here is the complete ad
 |
jb_castagnos
Senior Member
Username: jb_castagnos
Post Number: 87
Registered: 07-2002
| | Posted on Monday, February 13, 2006 - 08:34 pm: |
|
Yes, I remember it, first I've seen with a mag. |
richarddurgee
Senior Member
Username: richarddurgee
Post Number: 981
Registered: 11-2001
| | Posted on Monday, February 13, 2006 - 10:35 pm: |
|
WATERPROOF 1912
 |
restogreen
New member
Username: restogreen
Post Number: 1
Registered: 03-2007
| | Posted on Friday, April 13, 2007 - 08:48 pm: |
|

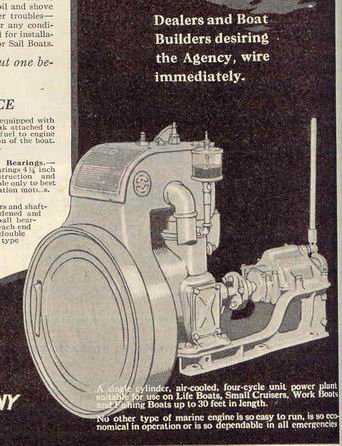

The New Way engine pictured was built in the 20's. I just restored one. It is a model CR rated 5HP. The engine was a first attempt of building an air-ooled self contained engine. The flywheel has six spokes but is covered by a tin shield. Behind the flywheel is a bolted on squirrel fan to direct air thru shrouding and over cylinder head. The "F" style head has removeable valve cages. There are not many of these engines left! Engine was painted "Royal Blue (Krylon) with silver cylinder. The cylinder was cast as discs stacked on rods about the cyl bore. This formed air fins. Engine started on gas and ran on kerosene. I don't have the original carburetor (I was told same as early chevrolet?) or the 2 compartment fuel tank. The ignition is a horseshoe style American Bosch mag.
Runs great. (I suspected this engine could be used in marine application ; mine has a detachable base for ag use. Engine had a belt pulley. )I have posted photos. RESTOGREEN\popjpeg {102916,New Way CR} |
andrew
Moderator
Username: andrew
Post Number: 867
Registered: 11-2001
| | Posted on Friday, April 13, 2007 - 09:06 pm: |
|
Restogreen,
Try again with the photos... |
restogreen
Member
Username: restogreen
Post Number: 4
Registered: 03-2007
| | Posted on Friday, April 13, 2007 - 10:23 pm: |
|
Sorry, I finally cut the size of the New Way CR photo to under 100KB! Here it is... Restogreen |
