| Author |
Message |

bgoss
Member
Username: bgoss
Post Number: 15
Registered: 12-2007
| | Posted on Saturday, March 08, 2008 - 03:16 pm: |
|
Does anyone have any information on the Guarantee Motor Company of Hamilton, Ontario?

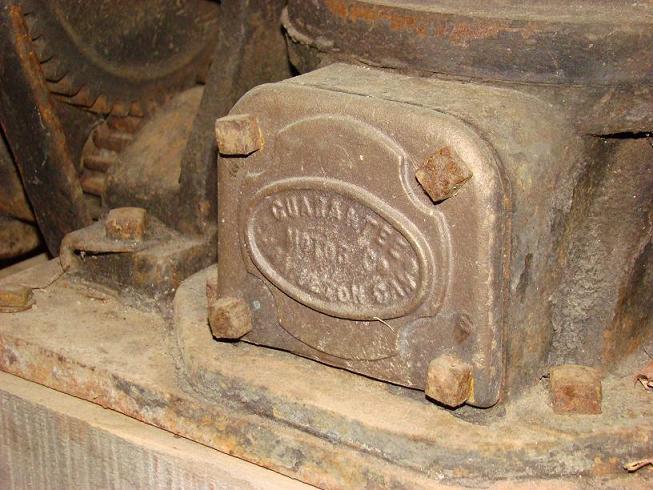

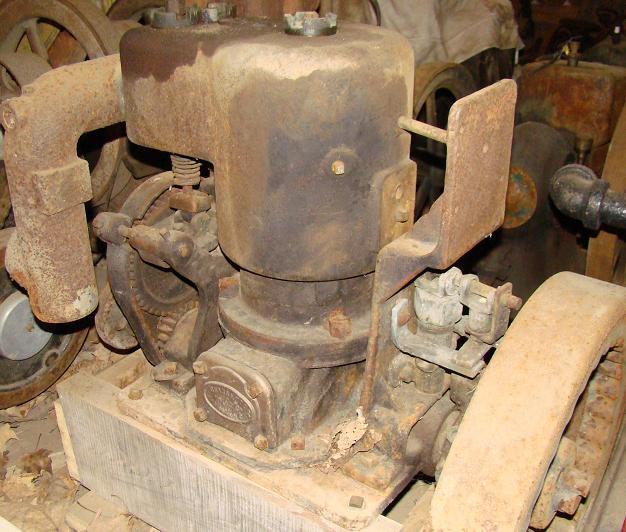

This single-cylinder, four stroke engine is probably about 600lbs. Name is on the crankcase hand hole covers. Any info would be greatly appreciated.
Blair
 |
castironacres
Member
Username: castironacres
Post Number: 4
Registered: 12-2007
| | Posted on Sunday, March 09, 2008 - 12:58 pm: |
|
Hello Blair When researching Magnet cream separators (petrie manufacturing of hamilton) I looked up Guarantee motors Because the magnet engine I have looks like a marine engine so I thought there might be a connection. The Hamilton library have one sales booklet in their archives,doesnt give any history,They were located at 369 bay street north, hamilton. I photo copied a few pages,I will have to scan them into my computor and send them. Would it be easier to post them here or send them to your email? thanks mike. (maybe you are close to Hamilton and you can go look for your self?) |
bgoss
Member
Username: bgoss
Post Number: 17
Registered: 12-2007
| | Posted on Sunday, March 09, 2008 - 04:49 pm: |
|
Thanks Mike.
I'm sure that there are others here who would also be interested in seeing what you were able to dig up on this old company. The drive to Hamilton is a bit much from where we are unless we could pick up some old iron on the way and make it really count. Looking forward to seeing what you found. Thanks.
Blair |
richarddurgee
Senior Member
Username: richarddurgee
Post Number: 1637
Registered: 11-2001
| | Posted on Sunday, March 09, 2008 - 10:22 pm: |
|
*
My notes Say Guarantee Motor Co. Hamilton, Ontario was established in 1901 By two engineers
E.T Krug ( had been employed at WestingHouse ) and H.A Crosby. By 1911 they offered both 2 & 4 cycle engines.

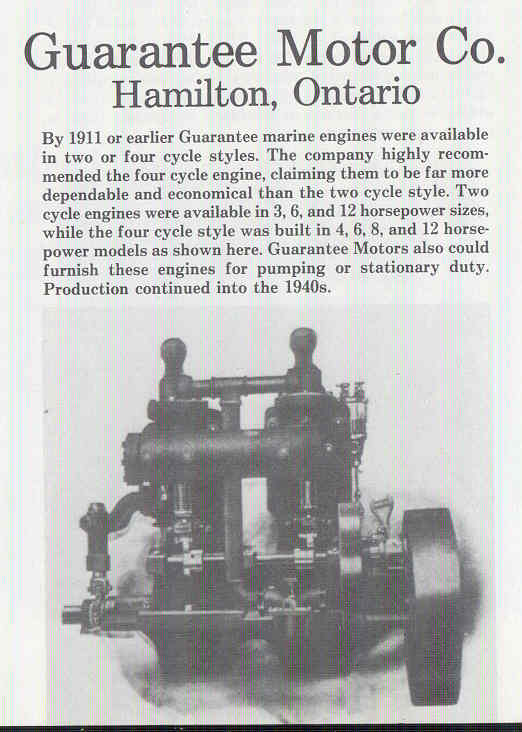

This is copy of photo in Wendels, American Gas Engines book.
* |
castironacres
Member
Username: castironacres
Post Number: 5
Registered: 12-2007
| | Posted on Saturday, March 15, 2008 - 10:08 am: |
|

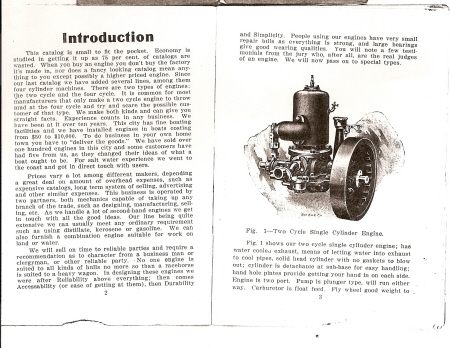

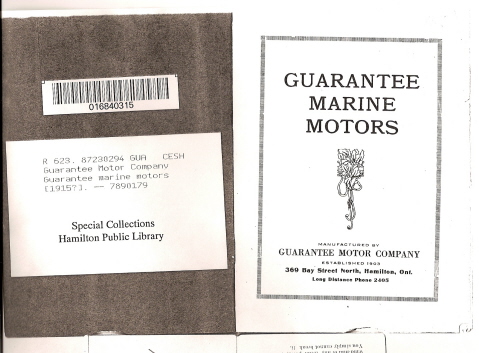

Hello Iam still attempting to post some scans of guarantee motors,will keep trying |
castironacres
Member
Username: castironacres
Post Number: 6
Registered: 12-2007
| | Posted on Saturday, March 15, 2008 - 10:13 am: |
|

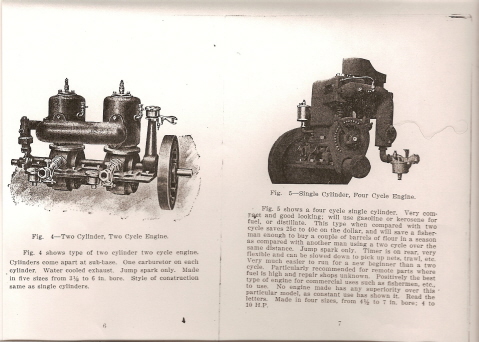

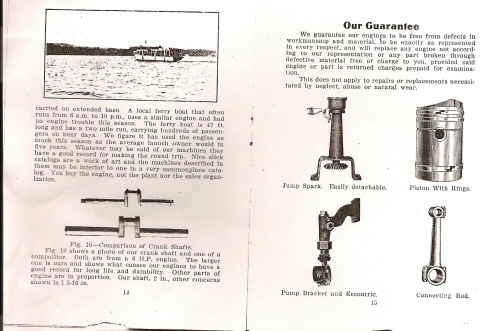

Looks like one at a time works,heres another page 7 shows your engine I think |
castironacres
Member
Username: castironacres
Post Number: 7
Registered: 12-2007
| | Posted on Saturday, March 15, 2008 - 10:16 am: |
|

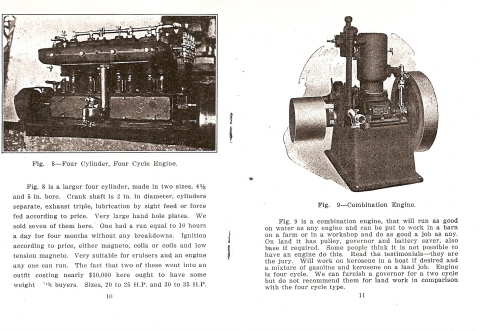

here`s another |
castironacres
Member
Username: castironacres
Post Number: 8
Registered: 12-2007
| | Posted on Saturday, March 15, 2008 - 10:38 am: |
|
#4 |
castironacres
Member
Username: castironacres
Post Number: 9
Registered: 12-2007
| | Posted on Saturday, March 15, 2008 - 10:41 am: |
|

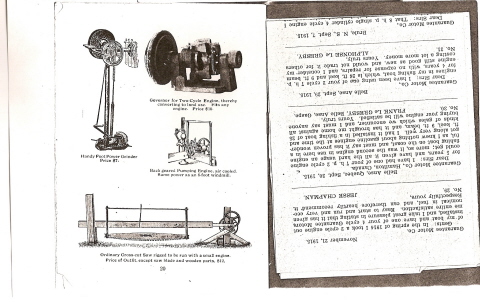

Looks like they tried more than marine equipment |
castironacres
Member
Username: castironacres
Post Number: 10
Registered: 12-2007
| | Posted on Saturday, March 15, 2008 - 10:45 am: |
|
one more? |
richarddurgee
Senior Member
Username: richarddurgee
Post Number: 1646
Registered: 11-2001
| | Posted on Saturday, March 15, 2008 - 02:16 pm: |
|
*
Mike
Thanks for posting these catalog pages, haven't seen these engines before !

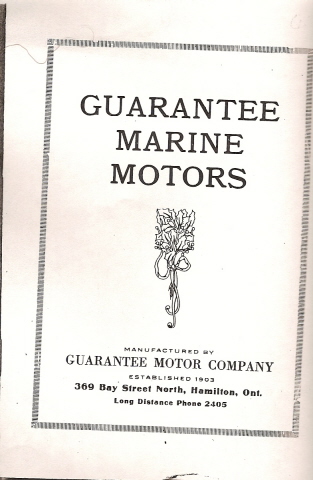

Cover says EST 1903, is there a date on this catalog ?
* |
castironacres
Member
Username: castironacres
Post Number: 11
Registered: 12-2007
| | Posted on Saturday, March 15, 2008 - 11:33 pm: |
|
Richard,the identification tag from the archives has 1915 with a question mark. |
bgoss
Member
Username: bgoss
Post Number: 18
Registered: 12-2007
| | Posted on Sunday, March 16, 2008 - 01:29 pm: |
|
Thanks for those Mike.
That really helps.
How much information must be out there in all these little libraries and archives that we would love to get our hands on.
Thanks again,
Blair |
bgoss
Member
Username: bgoss
Post Number: 19
Registered: 12-2007
| | Posted on Sunday, March 16, 2008 - 01:37 pm: |
|
Thanks to Richard too. You guys sure are a wealth of knowledge. Blair |
