| Author |
Message |

Landon Melan
Visitor
| | Posted on Friday, August 17, 2007 - 12:24 am: |
|
Anyone with pictures or information for the above engine? Have most of the parts but not the carb. |
richarddurgee
Senior Member
Username: richarddurgee
Post Number: 1519
Registered: 11-2001
| | Posted on Friday, August 17, 2007 - 10:38 am: |
|
*
W.H.Mullins Company of Salem ,Ohio was a metal stamping Co.and mfgrd many kinds of products one was thier well known metal boats. over the years they contracted with several different Engine mfgrs and put the mullins tag on them. if you could post some photos of the cylinder, flywheel, waterpump etc could ID your engine and get some info about it !
* |
Landon
Visitor
| | Posted on Sunday, September 30, 2007 - 10:06 am: |
|
I finally got down to my brother's and toook some pictures.
 |
john_archibald
Member
Username: john_archibald
Post Number: 24
Registered: 08-2006
| | Posted on Sunday, September 30, 2007 - 10:41 am: |
|
I don't know about the rest of the folks here, but I can see much in these images...too small.
Archibald |
john_archibald
Member
Username: john_archibald
Post Number: 25
Registered: 08-2006
| | Posted on Sunday, September 30, 2007 - 10:42 am: |
|
Meant to say, "I can't see much".
Archibald |
richarddurgee
Senior Member
Username: richarddurgee
Post Number: 1538
Registered: 11-2001
| | Posted on Sunday, September 30, 2007 - 04:00 pm: |
|
*
Go to the " Search " heading above and type in
Roberts should be good info there !
* |
Landon
Visitor
| | Posted on Thursday, October 04, 2007 - 10:49 pm: |
|
thanks Richard, that looks like it! |
noodles
New member
Username: noodles
Post Number: 1
Registered: 11-2010
| | Posted on Tuesday, November 02, 2010 - 06:56 pm: |
|
Hi everyone, new here, I just bought a mullins/Roberts 6 hp model 1910. I really need as much info as I can get on the ignition system and any other info,engine also came with 2 reverse gear cases.Want to run this engine in an old launch I have built. Any help on motor is appriciated. Dave |
miro
Senior Member
Username: miro
Post Number: 515
Registered: 11-2001
| | Posted on Wednesday, November 03, 2010 - 09:47 am: |
|
Hi Dave,
The ignition is based on a low voltage connection ( 12V) to the timer, which then fires a high voltage buzz coil.
The buzz coil's are quite straightforward to build.
I can send you the diagrams and a typical connection diagram for the low voltage part.
You can get my email from my profile - just click on my name on the left
miro |
bruce
Senior Member
Username: bruce
Post Number: 240
Registered: 07-2002
| | Posted on Wednesday, November 03, 2010 - 07:46 pm: |
|
Noodles, Would you share a picture of your old launch? Thanks |
noodles
New member
Username: noodles
Post Number: 2
Registered: 11-2010
| | Posted on Thursday, November 04, 2010 - 06:27 pm: |
|
This is a launch we built for a customer, and am building one similar for a gas engine
 |
noodles
New member
Username: noodles
Post Number: 3
Registered: 11-2010
| | Posted on Thursday, November 04, 2010 - 06:39 pm: |
|

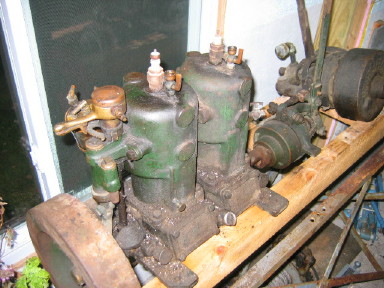

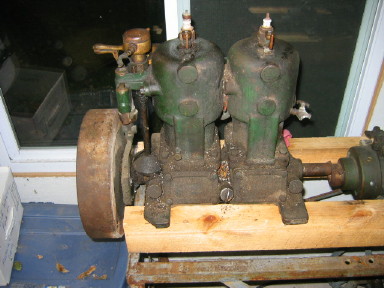

This is what I'm dealing with any help is welcomed.
Noodles
 |
solarrog
Senior Member
Username: solarrog
Post Number: 449
Registered: 03-2002
| | Posted on Thursday, November 04, 2010 - 06:40 pm: |
|
I still have a upper and lower crankcase for a Roberts twin. Is yours broken???? |
solarrog
Senior Member
Username: solarrog
Post Number: 450
Registered: 03-2002
| | Posted on Thursday, November 04, 2010 - 06:42 pm: |
|
Thants a great find, other than dirty is looks great |
solarrog
Senior Member
Username: solarrog
Post Number: 451
Registered: 03-2002
| | Posted on Thursday, November 04, 2010 - 06:44 pm: |
|
thats*
fat fingers |
noodles
Member
Username: noodles
Post Number: 4
Registered: 11-2010
| | Posted on Friday, November 05, 2010 - 06:21 pm: |
|
Thaks Miro the ignition system makes sense, What I am looking for is a possible manual on the Roberts also I need some guidance on the oiling system and why there are crank case drains? |
noodles
Member
Username: noodles
Post Number: 5
Registered: 11-2010
| | Posted on Friday, November 05, 2010 - 08:17 pm: |
|
The smaller gearbox does not have a name on it, it also has the same size shaft hole as the engine and the set screws which are offset line up with the saft on the engine.The bigger one has a larger shaft.Not sure what the larger one came off? Keep the info comming I am learning alot.
Noodles |
miro
Senior Member
Username: miro
Post Number: 518
Registered: 11-2001
| | Posted on Saturday, November 06, 2010 - 06:10 am: |
|
The crankcase drains are there just to do that - drain the crankcase.
Sometimes, the crankcase will load up with gas and it becomes almost impossible to start (mixture far too rich) - so - you open the drains and empty the crankcase.
As for the oiling system, gas/oil mix is what MUST be used. The drip oilers, while historically correct, aren't nearly as good as the gas/oil mix for lubrication.
You can set them up and if you really want to, have them drip oil ( 1 drip every second or two)
but turn them off several minutes before you stop the engine.
Residual oil in the engine will contribute to build up of carbon on the rings.
miro |
noodles
Member
Username: noodles
Post Number: 6
Registered: 11-2010
| | Posted on Saturday, November 06, 2010 - 07:28 am: |
|
Thanks Miro that clears up a lot.I will now start to take it apart,, and clean her up, and make some new gaskets. hopfully will be runnung this winter.Thanks everyone this is a great message board.Noodles |
robert
Senior Member
Username: robert
Post Number: 387
Registered: 07-2003
| | Posted on Saturday, November 06, 2010 - 12:44 pm: |
|

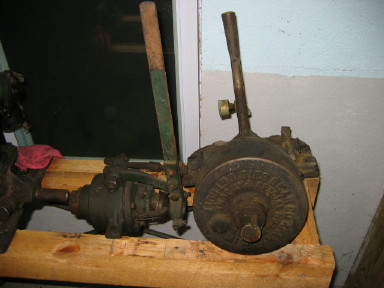

The smaller reverse gear sitting between the beds is a Joe's Gear by Snow & Petrelli. If you scrub the top of the flat bar shift lever, you'll find some information stamped in there; if it's the original handle.
There is at least one thread on these gears if you do a search of this site. |
noodles
Member
Username: noodles
Post Number: 7
Registered: 11-2010
| | Posted on Saturday, November 06, 2010 - 07:18 pm: |
|
One more question for Miro. What kind of relay works best for what I am doing? |
noodles
Member
Username: noodles
Post Number: 8
Registered: 11-2010
| | Posted on Saturday, December 18, 2010 - 03:13 pm: |
|

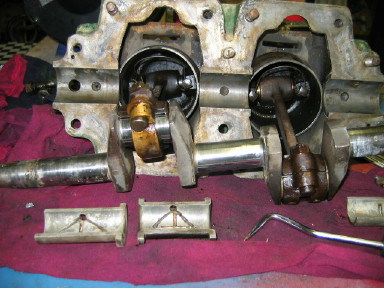

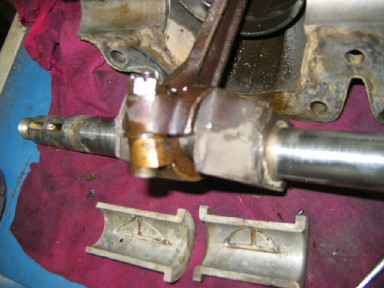

I dissasembled my roberts and found that someone repaired it many years ago. I have not ran motor yet and not sure if the repair will hold up .If anyone has a rodcap end for this engine it looks like I might need one. Noodles
 |
john_archibald
Senior Member
Username: john_archibald
Post Number: 163
Registered: 08-2006
| | Posted on Saturday, December 18, 2010 - 05:20 pm: |
|
Not too hard to have a shop make you one out of brass. |
noodles
Member
Username: noodles
Post Number: 9
Registered: 11-2010
| | Posted on Saturday, December 18, 2010 - 05:54 pm: |
|
I could tackle it possibly I have a pattern right next to it on the other rod.I also have a mill and lathe, it would be a good project. It would be easier if I could find one.Thanks John you always have good comments on subjects.
Noodles |
noodles
Member
Username: noodles
Post Number: 10
Registered: 11-2010
| | Posted on Saturday, March 26, 2011 - 05:33 pm: |
|

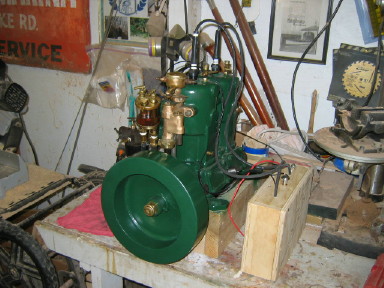

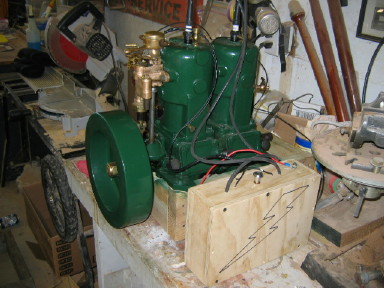

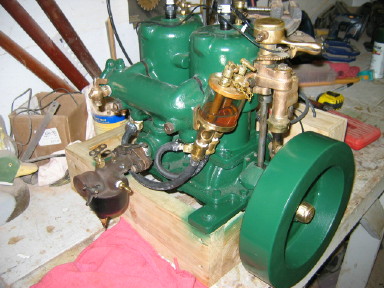

It runs and ran well, thank everone for there help, it was a fun restoration project and am very happy with the results.Next project Universal Type NM with missing mag.Looking for a mag
Noodles (Dave) |
miro
Senior Member
Username: miro
Post Number: 567
Registered: 11-2001
| | Posted on Sunday, April 10, 2011 - 08:23 am: |
|
I think you deserve an "atta boy" for the work.
miro |
robert
Senior Member
Username: robert
Post Number: 417
Registered: 07-2003
| | Posted on Sunday, April 10, 2011 - 01:00 pm: |
|
"I think you deserve an "atta boy" for the work.
miro"
Seconded!
Are you going to put one of the reverse gears on as well?
I'm curious about that De Lavigne oiler sitting on an angle; was there a reason for that? |
noodles
Member
Username: noodles
Post Number: 12
Registered: 11-2010
| | Posted on Sunday, April 10, 2011 - 02:48 pm: |
|
Yes the engine sets in the boat at an angle to line up with the prop shaft, when mounted the oiler is straight up and down. |
